Summary of Contents for Prime Security PrimeStart 650

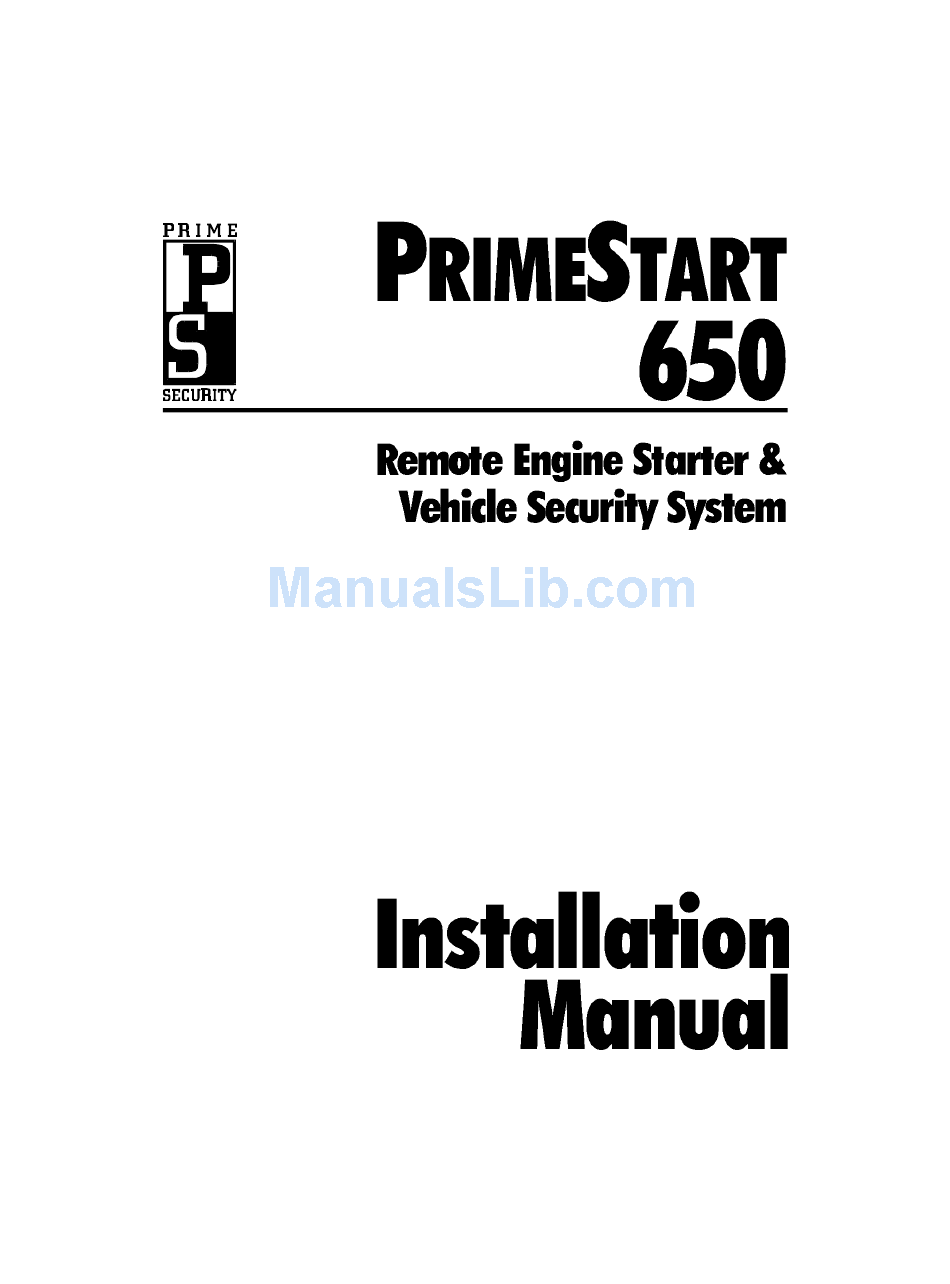

- Page 1 PrimeStart 650 Installation Manual...
- Page 2 PrimeStart 650 Installation Manual...
-
Page 3: Table Of Contents
Programming Table for System Features ....25 Programming Table for Remote Controls ....26 PrimeStart 650 Installation Manual... -
Page 4: Important Information
This device complies with Part 15 of the FCC rules. Any changes or modifications made to the system without the express approval of Prime Security, Inc. could void the user’s authority to operate this equipment. PrimeStart 650 Installation Manual Important Information * Optional... -
Page 5: Wiring Diagrams
Main Wiring Diagram - 16 Pin PrimeStart 650 Installation Manual... - Page 6 Main Wiring Diagram - 12 Pin PrimeStart 650 Installation Manual...
-
Page 7: Satellite Relay Module Diagram
Satellite Relay Module Diagram PrimeStart 650 Installation Manual... -
Page 8: Pin Connectors
LIGHT BLUE BLUE / YELLOW WHITE VIOLET WHITE / BLACK BLACK ORANGE PrimeStart 650 Installation Manual Description Accessory Remote Start (-) Input Brake Switch (+) Input Reverse Light (+) Input Hood Switch (-) Input Trunk Switch (-) Input Second Stage Unlock (-) Output... - Page 9 6 Pin Connector Pin Number Wire Color YELLOW GRAY VIOLET PINK PINK PrimeStart 650 Installation Manual Description Starter Interrupt Switch Side Heater / AC Output Starter Interrupt Starter Side Ignition Output Battery (+) Ignition Output...
-
Page 10: Installation Procedures
4. Sleeve these wires with vinyl tubing or electrical tape and route them through an existing rubber grommet into the engine compartment. 5. If an existing grommet is not available, drill a hole and install a snap grommet. PrimeStart 650 Installation Manual Installation Procedures... -
Page 11: Led Indicator
The GRAY wire will provide a continual 300 M.A. output whenever the alarm is armed. This output can be used for voice modules, window roll-up modules and any other optional accessory that requires a (-) output when the alarm is armed. PrimeStart 650 Installation Manual... -
Page 12: Brake Lights (Mandatory)
2. Turn the ignition key to the "ON" position and adjust the gear shift selector to "Reverse." 3. Use a voltmeter to find the wire that will show +12 volts in "Reverse" and 0 volts in "Park." 4. Connect the YELLOW/BLACK wire to the vehicle’s reverse light wire. PrimeStart 650 Installation Manual... -
Page 13: Interior Light Illumination
The GRAY/BLACK wire will provide a continual ground output for as long as the vehicle is in the remote start mode. This output can be used for additional ignition, starter or heater/AC relays, as well as VATS, Passlok and Passkey bypass. PrimeStart 650 Installation Manual... -
Page 14: Factory Alarm Disarm (-) Output
The satellite relay module has two onboard 30-amp relays. Most vehicles have only one ignition wire necessary to start the vehicle. Some vehicles have two ignition wires. Make all wire connections at the ignition switch wire harness. PrimeStart 650 Installation Manual (Con tin ued on next page) - Page 15 If it will not crank, you have the correct wire. 3. Connect the YELLOW wire to the ignition switch side of the starter wire. 4. Connect the VIOLET wire to the starter solenoid side of the starter wire. PrimeStart 650 Installation Manual...
-
Page 16: Remote Engine Start Neutral Safety Switch Bulletin
Prime is aware of are General Motors trucks, GM sport utility vehicles, GM column shift passenger cars and Dodge Dakota pickup trucks. There may be additional vehicles with the combined neutral safety switch that require the additional relay. PrimeStart 650 Installation Manual... - Page 17 The wire color codes are subject to change. Check all wires with a volt/ohmmeter. If you have any questions, please contact the Prime Technical Support Department. PrimeStart 650 Installation Manual...
- Page 18 Gen eral Mo tors Sport Util ity Ve hi cles, Trucks and Col umn Shift Pas sen ger Ve hi cles Dodge Da kota Pickup Trucks PrimeStart 650 Installation Manual...
-
Page 19: Door Lock/Unlock
Door Lock/Unlock The system has onboard door lock relays to lock and unlock all of the doors as well as a two-stage unlock. The diagrams on pages 17-20 will illustrate standard lock/unlock and two-stage unlock. PrimeStart 650 Installation Manual... - Page 20 PrimeStart 650 Installation Manual...
- Page 21 PrimeStart 650 Installation Manual...
- Page 22 PrimeStart 650 Installation Manual...
-
Page 23: Tach Wire (Rpm Monitoring)
5. Mount the hood switch. 6. Connect the TAN wire to the hood switch. 7. Make sure the hood makes contact with hood switch when closed and presses the hood switch straight down to prevent wear. PrimeStart 650 Installation Manual... -
Page 24: Si Ren
11. Install the 5 amp fuse in the 18 ga RED wire fuse assembly. 12. Install the 20 amp fuse in the RED/WHITE wire fuse assembly. 13. Install the two 20 amp fuses in the 10 ga RED wire fuse assemblies. PrimeStart 650 Installation Manual... -
Page 25: Mandatory Rpm Programming
Features" on page 25. 5. Press and hold the remote START button. 6. The parking lights will flash two times to confirm the RPMs have been memorized. 7. Release the START button. 8. Turn the engine off. PrimeStart 650 Installation Manual... -
Page 26: Programmable Features
6. Follow the "Secondary Action." You will hear a number of chirps to confirm that you have changed the setting of that feature. 7. Turn the ignition key "OFF." 8. Repeat steps 1-7 for any other feature you wish to program. PrimeStart 650 Installation Manual Programmable Features... -
Page 27: Programming Table For System Features
OFF or 5 F (-15 C) Temperature-Controlled Starting — -7 F (-20 C) or -22 F (-30 C) Security Start Locks™ PrimeStart 650 Installation Manual No. of Secondary Action Chirps Wait 3 seconds, the siren will chirp once for active, twice for passive. -
Page 28: Programming Table For Remote Controls
Accessory Output One-Step Remote Code ARM/DISARM Learning Button Instant Remote Control — Code Deletion PrimeStart 650 Installation Manual No. of Secondary Action Chirps Press ARM/DISARM Button, the siren will chirp 1 time. Press TRUNK Button, the siren will chirp 2 times.
