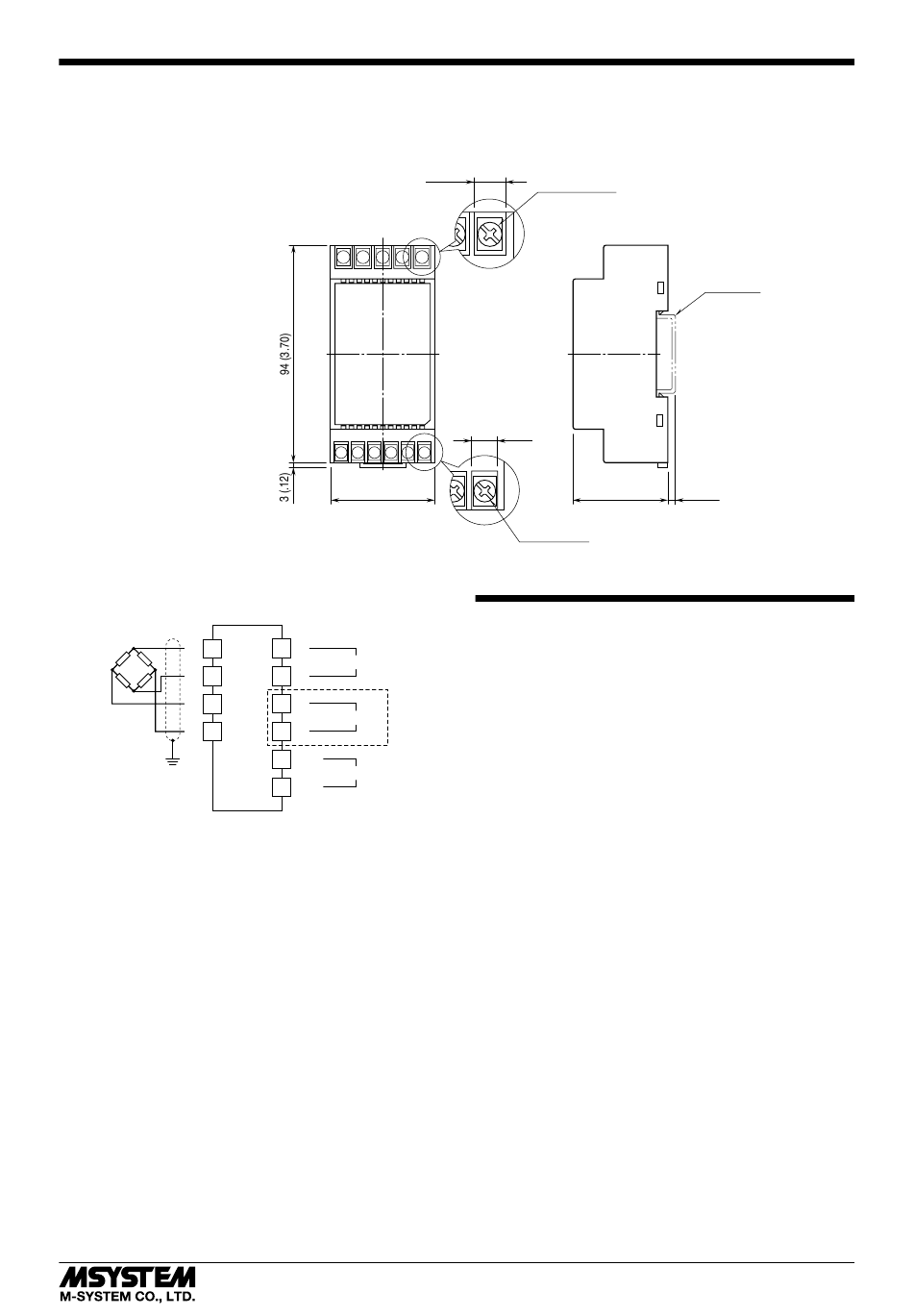

TERMINAL CONNECTIONS
Connect the unit as in the diagram below or refer to the connection diagram on the front of the unit.
■ EXTERNAL DIMENSIONS unit: mm (inch)
■ CONNECTION DIAGRAM
STRAIN
GAUGE
+ 4
– 5
+ 2
–
3
The section enclosed by broken line is only with
2nd output option.
DO NOT connect to the terminal 1.
7.4 (.29)
1 2 3 4 5
6 7 8 9 10 11
45 (1.77)
• When mounting, no extra space is needed between units.
6 +
OUTPUT 1
7 –
+
8
OUTPUT 2
9 –
10
U(+)
POWER
11
V(–)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
5–M3.5 SCREW
6 (.24)
41 (1.61)
6–M3 SCREW
WIRING INSTRUCTIONS
■ M3 Screw (output, power input)
Torque: 0.8 N∙m
■ M3.5 Screw (input)
Torque: 0.8 N∙m
W5LCS
DIN RAIL
35mm wide
[3.3 (.13)]
