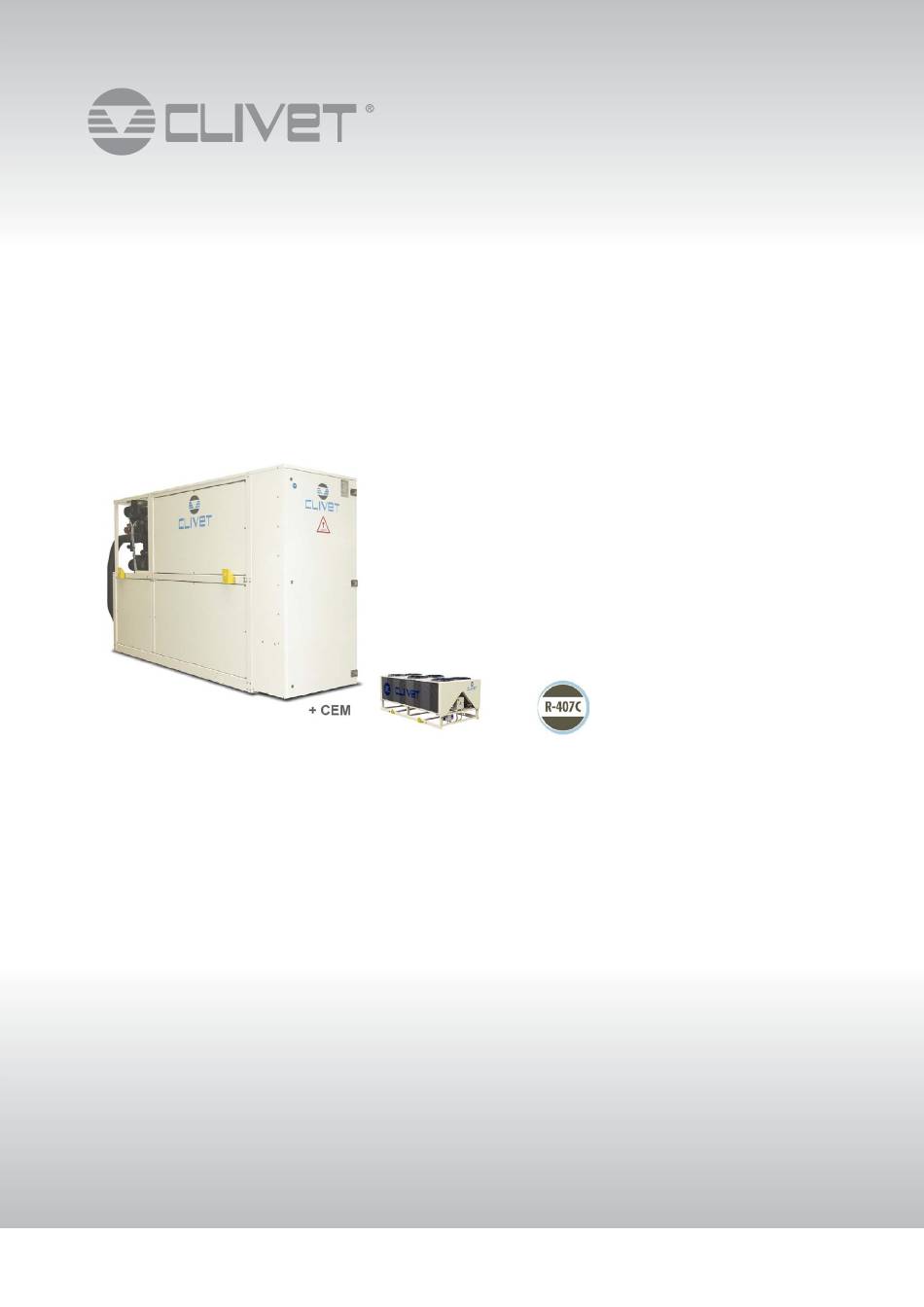

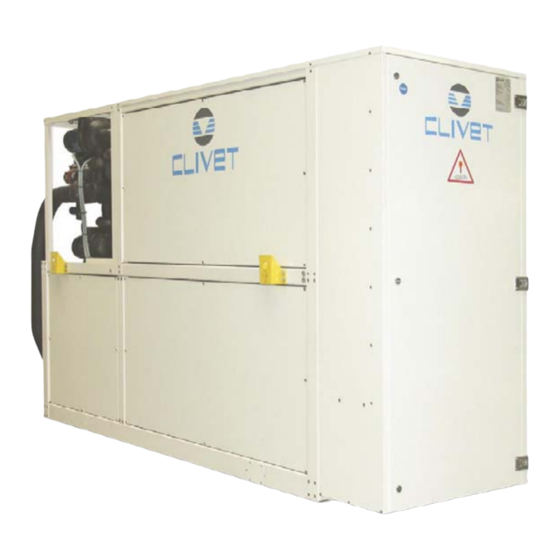

- Page 1 Installation and operating manual MSE-SC 65D - 180F Condenserless water chiller for outdoor or indoor installation M43X41C6-03 15-07-16...
- Page 2 Yours faithfully. CLIVET Spa The data contained in this manual is not binding and may be changed by the manufacturer without prior notice. Reproduction, even is part, is FORBIDDEN © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia...
-
Page 3: Table Of Contents
Index of contents General description Reception Positioning Water connections Refrigeranting connections Electrical connections Start-up Control Maintenance Decommissioning Residual risks Accessories Dimensional drawings Technical information M43X41C6-03 MSE-SC 65D-180F... -
Page 4: General Description
Contact a certified service agent. Use original spares parts only. Using the unit in case of breakdown or malfunction: • voids the warranty • it may compromise the safety of the unit • may increase time and repair costs MSE-SC 65D-180F M43X41C6-03... - Page 5 Must be quoted when ordering spare parts. 1.14 Assistance request Note data from the serial number label and write them in the chart on side, so you will find them easily when needed. Series Size Serial number Year of manufacture Electrical wiringdiagram M43X41C6-03 MSE-SC 65D-180F...
-
Page 6: Reception
Lifting bracket Screw pin shackle. Safety pin shackle. Before starting the handling, make sure that the unit is stable. Gradually bring the lifting belts under tension, making sure they are positioned correctly. A. Protections B. Lifting bracket MSE-SC 65D-180F M43X41C6-03... - Page 7 2.3 Packaging removing Be careful not to damage the unit. Keep packing material out of children’s reach it may be dangerous. Recycle and dispose of the packaging material in conformity with local regulations. M43X41C6-03 MSE-SC 65D-180F...
-
Page 8: Positioning
Examples to position the external probe: A. roof B. under a terrace C. if at free wall provide a small roofing MSE-SC 65D-180F M43X41C6-03... -
Page 9: Water Connections
• perform the connection between the installation pipe and the evaporator, using the joint Retirer le joint de connexion avant de souder le tuyau de l’installation. The rubber gasket might be irreparably damaged. M43X41C6-03 MSE-SC 65D-180F... - Page 10 Isolate the pipes to avoid heat dispersions and formation of condensate. Leave various point of service free (wells, vent-holes etc). Neglecting the washing will lead to several filter cleaning interventions and at worst cases can cause damages to the exchangers and the other parts. MSE-SC 65D-180F M43X41C6-03...
-
Page 11: Refrigeranting Connections
The installation of the pipes may affect the level of noise in the system: • install flexible joints between the unit and the pipes • install antivibration material between the brackets and the pipes so as to prevent the transmission of vibrations • avoid the passage in particularly silent environments M43X41C6-03 MSE-SC 65D-180F... - Page 12 Along with the previously mentioned aspects, the liquid recipient compensates for the various volumes of the exchangers as their function changes (evaporator/condenser and vice versa). Make very sure that the return and supply points are placed at the bottom. MSE-SC 65D-180F M43X41C6-03...
- Page 13 Once charging is complete, open the gas cock so that the unit is ready to be started. 5.11 Adding oil Consider adding oil if the connection pipes are particularly long. Check the oil level of the compressor in the indicator or in the Schrader plug. M43X41C6-03 MSE-SC 65D-180F...
- Page 14 It is necessary to add to the indicated quantities the amounts required for the two units and for the gas pipes. ext diameter mm 88.9 R-134a 13.6 22.3 32.1 46.3 64.4 R-407C 12.9 21.2 30.6 44.0 61.2 MSE-SC 65D-180F M43X41C6-03...
-
Page 15: Electrical Connections
Fix the cables: if vacated may be subject to tearing. The cable must not touch the compressor and the refrigerant piping (they reach high temparatures). XC: Customer connections QS1: main isolator switch 6.5 Electrical panel External unit M43X41C6-03 MSE-SC 65D-180F... - Page 16 DATALOGGER module Main isolator switch AP50 Storage battery ST10 High temperature safety thermostat AP51 / 52 Electronic thermostatic management Auxiliary circuit transformer 12V aux. circuit fuse Terminal block of the customer connections 24V aux. circuit fuse Internal unit MSE-SC 65D-180F M43X41C6-03...
- Page 17 AP28 DATALOGGER module Main isolator switch AP50 Storage battery ST10 High temperature safety thermostat AP51 / 52 Electronic thermostatic management Auxiliary circuit transformer 12V aux. circuit fuse Terminal block of the customer connections 24V aux. circuit fuse M43X41C6-03 MSE-SC 65D-180F...
- Page 18 KMC1-2 remote condenser on-off control module KMPU Utility side pump control 6.7 Remote ON-OFF Do not perform short On Off cycles Do not use the remote On Off with thermoregulation function. Y E S N O ! MSE-SC 65D-180F M43X41C6-03...
- Page 19 6.8 DEMAND LIMIT and WATER RESET AP18 Demand limit devices powered by the signal AP19 Water reset devices with own power supply AP20 ambient humidity control probe passive devices powered by the module (max 50mA) ambient air temperature probe M43X41C6-03 MSE-SC 65D-180F...
- Page 20 AP25 Can to Can AP28 Datalogger AP26 Gateway LonWorks Cable “A” requirements Couple of conductors twisted and shielded Section of conductor 0,22mm2…0,35mm2 Nominal capacity between conductors < 50 pF/m Nominal impedance 120 Ω Recommended cable BELDEN 3105A MSE-SC 65D-180F M43X41C6-03...
- Page 21 6.10 Remote control via microprocessor control Remote terminal addressing On the remote terminal: • “Setup-PASSWORD..” menu • “Setup-IDTast-Cen” setting Tast=27 menu M43X41C6-03 MSE-SC 65D-180F...
-
Page 22: Start-Up
(no bubbles) measure return and supply water temperature 10. measure super-heating and sub-cooling 11. check no anomalous vibrations are present 12. climatic curve personalization 13. climatic curve personalization 14. scheduling personalization 15. complete and available unit documentation MSE-SC 65D-180F M43X41C6-03... - Page 23 Check that the air and water temperatures are within in the operating limits. Start-up the unit. With unit operating in stable conditions, check: • Voltage • Total absorption of the unit • Absorption of the single electric loads M43X41C6-03 MSE-SC 65D-180F...
- Page 24 The above-described operating conditions must be considered outside the operating limits. In the event of compressor breakdown, due to operating in the above-mentioned conditions, the guarantee will not be valid and Clivet spa declines any responsibility.
-
Page 25: Control
Control 8.1 Control interface F4 = COOL HEAT 12.2 UNIT START-UP KEYPAD USE LOCAL OR REMOTE ON OFF SETPOINT M43X41C6-03 MSE-SC 65D-180F... - Page 26 8.2 Setup menu SET UP menu: HOME PARAMETERS SCHEDULING HOME CLOCK SETUP HOME ID Tast-Cen HOME PASSWORD HOME HOME 8.3 Demand limit 8.4 Water reset 8.5 External air humidity probe MSE-SC 65D-180F M43X41C6-03...
- Page 27 8.6 Fresh air temperature probe 8.7 Alarms Alarm menu VIEW ALARM HOME STORE ALARM HOME DEL STORE HOME HOME HOME HOME HOME M43X41C6-03 MSE-SC 65D-180F...
- Page 28 U_1 CMP_1 E105 list of alarms list of alarms list of alarms CENTRAL MODULE COMPRESSOR MODULE MSE-SC 65D-180F M43X41C6-03...
- Page 29 8.8 Stata GENERALS UNIT 1 HOME HOME HOME HOME HOME HOME list of alarms list of alarms list of alarms M43X41C6-03 MSE-SC 65D-180F...
- Page 30 Index GENERAL stata Index UNIT_1 – MOD COMP_1 stata MSE-SC 65D-180F M43X41C6-03...
-
Page 31: Maintenance
Schedule technical assistance in advance to avoid hitches and to guarantee that the system can be used when required. 9.5 Compressor supply line shut-off valve A. Supply line shut-off valve CAUTION! Do not remove the seal Remove only if authorized by the manufacturer. M43X41C6-03 MSE-SC 65D-180F... - Page 32 Refer to the local regulations; and ensure correct adherance. Companies and technicians that effect interventions of installation, maintenance/ repairs, leak control and recovery must be CERTIFIED as expected by the local regulations. The leak control must be effected with annual renewal. 9.8 Water filter Check that no impurities prevent the correct passage of water. MSE-SC 65D-180F M43X41C6-03...
- Page 33 9.11 crankcase heather Check: • closure • Operation 9.12 Copeland scroll compressor Advanced Scroll Temperature Protection Compressor may stop Pumping With Motor Running Turn Off And Wait Until Cool May need More Than 1 Hour To Reset M43X41C6-03 MSE-SC 65D-180F...
-
Page 34: Decommissioning
The user must not dispose of the unit at the end of its life cycle as urban waste, it must instead be handed over to appropriate collection centres as set forth by current standards or as instructed by the distributor. MSE-SC 65D-180F M43X41C6-03... -
Page 35: Residual Risks
Do not remain in the vicinity of the safety valve and never leave the refrigerating system taps closed. M43X41C6-03 MSE-SC 65D-180F... -
Page 36: Accessories
(keeps pumps from operating if there is no water) Evaporator Kit composed of two solid rapid connections for pump removal in case of malfunction. MSE-SC 65D-180F M43X41C6-03... - Page 37 Compressor Recovery exchanger RW in - Recovery water inlet External exchanger (condenser) RW out - Recovery water outlet Electronic expansion valve T - Temperature probe TWS in - Water inlet source side PD - Differential pressure switch M43X41C6-03 MSE-SC 65D-180F...
-
Page 38: Dimensional Drawings
Acoustic configuration: Standard (ST)/Extremely low noise(EN) GENERAL TECHNICAL SPECIFICATIONS 100D 110D 120D 135F 150F 165F 180F Size COOLING COMPRESSOR INTERNAL EXCHANGER CONNECTIONS SOUND LEVELS Acoustic configuration: Standard (ST) Acoustic configuration: Extremely low noise (EN) 100D 100D 110D 110D 120D 120D 135F 135F 150F... - Page 39 EXCHANGER OPERATING LIMITS INTERNAL EXCHANGER DPr (S - B) OVERLOAD AND CONTROL DEVICE CALIBRATION OPEN CLOSED VALUE WEIGHT DISTRIBUTION ACOUSTIC CONFIGURATION: STANDARD (ST) Size 100D 110D 120D 135F 150F 165F 180F ACOUSTIC CONFIGURATION: SUPER-SILENCED (EN) Size 100D 110D 120D 135F 150F 165F 180F...
- Page 40 DIMENSIONS: MSE-SC 75C-90C ST/EN Size...
- Page 41 DIMENSIONS: MSE-SC 65D - 120D ST/EN Size 100D 110D 120D...
-
Page 42: Technical Information
DIMENSIONS:MSE-SC 135F - 180F ST/EN Size 135F 150F 165F 180F... - Page 43 Acoustic configuration: Standard (ST)/Extremely low noise(EN) Max. equivalent lenght [in meters] for the ducts at the remote condenser Outlet line - Liquid line SIZE 100D 110D 120D 135F 150F 135F 180F...
- Page 44 Tel. +34 91 6658280 - Fax +34 91 6657806 - info@clivet.es CLIVET GmbH Hummelsbütteler Steindamm 84, 22851 Norderstedt - Germany Tel. + 49 (0) 40 32 59 57-0 - Fax + 49 (0) 40 32 59 57-194 - info.de@clivet.com CLIVET RUSSIA Elektrozavodskaya st. 24, office 509 - 107023, Moscow, Russia Tel.
