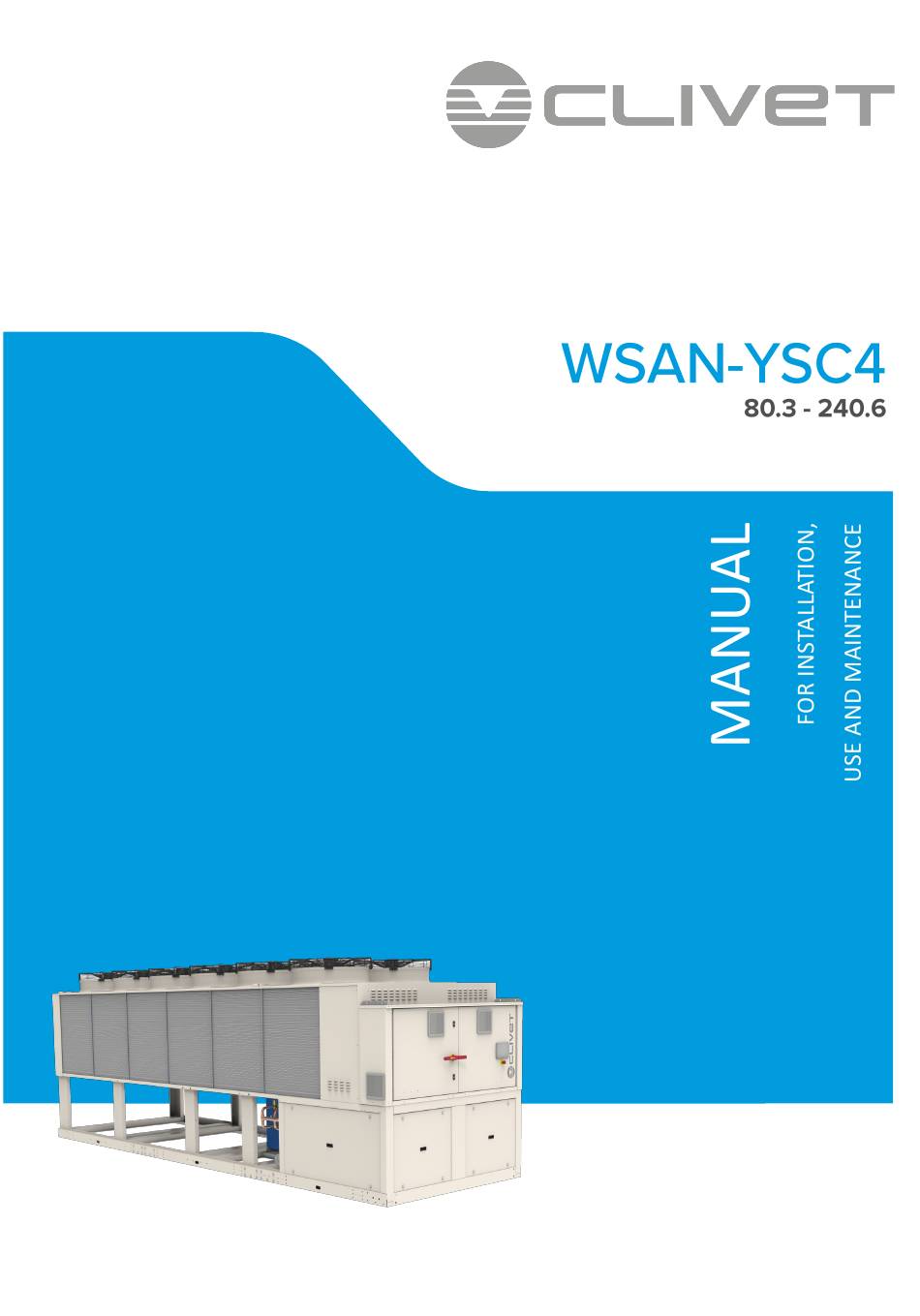

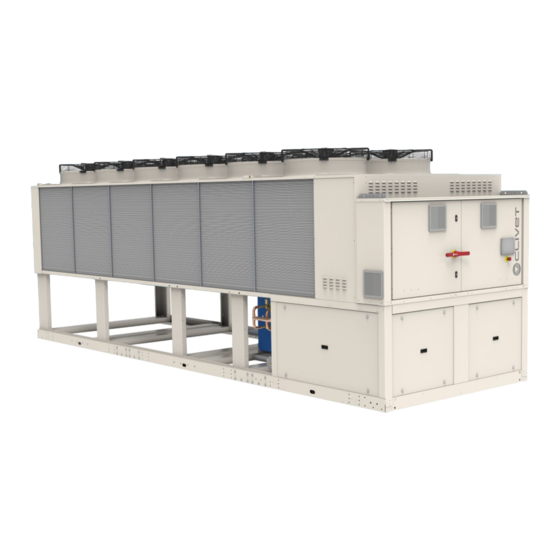

  • Page 1 M0N400002-00 02-21...

  • Page 4: Maintenance

    1 - SAFETY CONSIDERATION S Safety Operate in compliance with safety regulations in force. To carry out the operations use protection devices: gloves, goggles, helmet, headphones, protective knee pads. All operations must be carried out by personnel trained on possible risks of a general nature, electrical and deriving from operating with equipment under pressure.

  • Page 5: User Training

    1 - SAFETY CONSIDERATION S Modification All unit modifications will end the warranty coverage and the manufacturer responsibility. Breakdown/Malfunction Disable the unit immediately in case of breakdown or malfunction. Contact a certified service agent. Use original spares parts only. Using the unit in case of breakdown or malfunction: voids the warranty ...

  • Page 6: Unit Identification

    1 - SAFETY CONSIDERATION S Unit identification The serial number label is positioned on the unit and allows to indentify all the unit features. The matriculation plate shows the indications foreseen by the standards, in particular: unit type  serial number (12 characters) ...

  • Page 7: Removal Of Packaging

    2 - BEFORE INSTALLATION Reception You have to check before accepting the delivery: That the unit hasn’t been damaged during transport  Before any work read: That the materials delivered correspond with that indicated on  the transport document comparing the data with the ...
  • Page 8 2 - BEFORE INSTALLATION Handling  Check that all handling equipment complies with local safety regulations (cran, forklifts, ropes, hooks, etc.).  Provide personnel with personal protective equipment suitable for the situation, such as helmet, gloves, accident-prevention shoes, etc.  Observe all safety procedures in order to guarantee the safety of the personnel present and the of material.
  • Page 9 3 - SELECTING THE INSTAL LATION SITE Positioning  Installation must be in accordance with local regulations. If they do not exist, follow EN378 . During positioning consider these elements: customer approval  unit weight and bearing point capacity  safe accessible position ...
  • Page 10 3 - SELECTING THE INSTAL LATION SITE Avoid therefore: obstacles to the airflow  exchange difficulties  Functional spaces leaves or other foreign bodies that can obstruct the exchange  Safety Zone batteries winds that hinder or favour the airflow ...

  • Page 11: Hydraulic System

    4 - WATER CONNECTIONS Hydraulic system The pipes must be designed and manufactured to limit pressure drops as much as possible, i.e. optimise performance of the system. Keep the following to a minimum: overall length  number of bends  number of vertical changes of direction ...

  • Page 12: Water Filter

    4 - WATER CONNECTIONS Risk of freeze If the unit or the relative water connections can be subject to temperatures close to 0°C: Mix water with ethylene glycol, or  The unit must always be protected Safeguard the pipes with heating cables placed under the ...

  • Page 13: Water Flow-Rate

    4 - WATER CONNECTIONS Water flow-rate Minimum water flow The design water flow-rate must be:  inside the exchanger operating limits guaranteed also with variable system conditions (for example,  in systems where some circuits are bypassed in particular situations) If the system capacity is below the minimum flow, bypass the system as indicated in the diagram.

  • Page 14: Non-Return Valve

    4 - WATER CONNECTIONS Non-return valve Non-return valve Provide for the installation of non-return valves (A) in the case of several units connected in parallel. Operations sequence Before starting the unit pump: 1 Close all vents in the high points of the unit’s water circuit. 2 Close all drain shut-off valves in the low points of the unit’s water circuit ...

  • Page 15: Standard Unit

    4 - WATER CONNECTIONS Standard unit Unit + pump Unit + inverter pump exchanger chemical cleaning bypass 14 pressure gauge exchanger system cleaning bypass 15 - antifreeze heater 10 vent 16 pump water temperature probes 11 drain 17 safety valve 12 water flow switch 18 shut-off valves differential pressur switch...

  • Page 16: Electrical Data

    5 - ELECTRICAL CONNECTIO NS The characteristics of the electrical lines must be determined by specialized personnel able to design electrical installations; moreover, the lines must be in conformity with regulations in force. The protection devices of the unit power line must be able to stop the presumed short circuit current, whose value must be determined in function of system features.

  • Page 17: Power Input

    5 - ELECTRICAL CONNECTIO NS Signals / data lines Do not overpass the maximum power allowed, which varies, according to the type of signal. Lay the cables far from power cables or cables having a different tension and that are able to emit electromagnetic disturbances. Do not lay the cable near devices which can generate electromagnetic interferences.
  • Page 18 5 - ELECTRICAL CONNECTIO NS Connections performed by costumer...
  • Page 19 5 - ELECTRICAL CONNECTIO NS Power supply cables section Premium version 90.3 110.4 130.4 145.4 170.5 Min. cable section Cu (mm²) 1 x 95 1 x 95 1 x 150 1 x 150 1 x 240 Max. cable section Cu (mm²) 1 x 150 1 x 185 1 x 240...

  • Page 20: Computer Connection

    5 - ELECTRICAL CONNECTIO NS Computer connection Configure P.C. 1 connect P.C. and main module with LAN cable 2 check in the taskbar that the connection is active 3 open Control Panel and select Network and sharing center 4 select Modify board setting 5 select Local area connection (LAN) 6 select Internet protocol version 4 (TPC) IPV4 and enter Property...

  • Page 21: Remote Control

    5 - ELECTRICAL CONNECTIO NS Remote Control Option 1 Distance up to 350 mt 2 Distance up to 700 mt User interface B=B1 KNX bus, max 350 mt twisted pair with shield, ø 0,8 mm EIB/KNX cable marking recommended PSX - Mains power supply unit power supply unit N125/11 5WG1 125-1AB11 AC 120...230V, 50...60Hz KNX bus, max 350 mt...
  • Page 22 5 - ELECTRICAL CONNECTIO NS Modbus - RS485 Option LED BSP Modbus / LonWorks / Cable requirements Couple of conductors twisted and shielded Section of conductor 0,22mm2…0,35mm2 Rated power between conductors < 50 pF/m Nominal impedance 120 Ω Recommended cable BELDEN 3106A very RS485 serial line must be set up using the ‘In/Out’...

  • Page 23: Bacnet Ip - Option

    5 - ELECTRICAL CONNECTIO NS LonWorks - Option LED BSP LONWORK CABLE TYPE Echelon allows three cable types for channel type TP/FT-10, including the Category 5 network cable used commonly in building automation and control (TIA 568A Cat-5). CAT-5 SPECIFICATIONS Unshielded cable, twisted pair with at least 18 beats per meter: - Cross-sectional area min ø...
  • Page 24 5 - ELECTRICAL CONNECTIO NS Ecoshare Option Control of the network is entrusted to the Master unit (identified by the parameter LNAddress = 1). The network can be extended up to a maximum of 8 units (1 master – 7 slaves). The master arranges for managing connected units in order to obtain: ...
  • Page 25 5 - ELECTRICAL CONNECTIO NS Type A configuration Parameer P0658:TypeRegMS = 0 e P0702:KRegMS=0 The pumps of all units are active. On each unit a different setpoint is set for the utility side: this value is calculated starting from the setpoint set in the master unit, adding/removing, depending on the operating mode (cold/hot), an offset that can be parameterised.
  • Page 26 5 - ELECTRICAL CONNECTIO NS Type C configuration Parameter P0658:TypeRegMS = 2 e P0702:KRegMS=0 Only the pumps of the units called to operate are activated. Slave units mode controlled by the Master The units are controlled only if they have to deliver power. this value is calculated starting from the setpoint set in the master unit, adding/removing, depending on the operating mode (cold/hot), an offset that can be parameterised.
  • Page 27 6 - START-UP General  The indicated operations should done qualified technician with specific training on the product. The electrical, water connections and the other system works are by the installer. Agree upon in advance the start-up data with the service centre. Agree upon in advance the star-up data with the service centre.

  • Page 28: Preliminary Checks

    6 - START-UP Preliminary checks Unit OFF power supply Yes / No safe access suitable frame to withstand unit weight + people weight functional clearances air flow: correct return and supply (no bypass, no stratification) considered level to be reachable by snow considered main winds lack of chimneys/corrosive atmospheres/pollutants structure integrity...

  • Page 29: Start-Up Sequence

    6 - START-UP Start-up sequence Unit power supply ON Before powering the unit carry out a leak test with suitable instrumentation Yes / No compressor carter resistances operating at least since 8 hours off-load voltage measure phase sequence check pump manual start-up and flow check refrigeration circuit shut-off valves opening (if applicable) unit ON load voltage measure...

  • Page 30: Cooling Circuit

    6 - START-UP Cooling circuit 1 Visually inspect the refrigerating circuit: the presence of oil stains can by a symptom of leakage (caused e.g. by transportation, handling or other). 2 Verify that the refrigerating circuit is in pressure: Using the unit manometers, if present, or service manometers.
  • Page 31 6 - START-UP Compressor casing resistances Connect the compressor oil heating resistances at least 8 hours before the compressor is to be started: at the first unit start-up  after each prolonged period of inactivity  1 Power the heaters: isolator switch on 1 / ON. 2 Check the power consumption of the resistances to make sure that they are functioning.

  • Page 32: Demand Limit

    6 - START-UP Demand limit Menu accessible only after having entered the password.  Access reserved only to specifically trained personnel.  The parameter modification can cause irreversible damages. It is possible to limit the absorbed electric power with an external signal 0-10 Vcc or 4-20mA. The higher the signal is, the lower the number of compressors available to meet the thermal need.
  • Page 33 6 - START-UP Climatica TExt Menu accessible only after having entered the password.  Access reserved only to specifically trained personnel.  The parameter modification can cause irreversible damages. The setpoint based on the climatic curve and the Water Reset is displayed on the display Only if P0036: En Climatica = 1 Path: Main menu / Unit parameters / Options Step...
  • Page 34 6 - START-UP Water reset Menu accessible only after having entered the password.  Access reserved only to specifically trained personnel.  The parameter modification can cause irreversible damages. It is possible to limit the absorbed electric power with an external signal 0-10 Vcc or 4-20mA. The setpoint based on the climatic curve and the Water Reset is displayed on the display Only if P0003: En WaterReset = 1 Path: Main menu / Unit parameters / Options...
  • Page 35 In the event of a compressor breakdown due to operating in the above-mentioned conditions, the warranty shall not be valid and Clivet spa declines any responsibility. Periodically check the average operating times and frequency of compressor start-ups: indicatively the minimum thermal load must be such as to require a compressor to operate for at least ten minutes.

  • Page 36: Start-Up Report

    6 - START-UP Start-up report To detect the objective operational conditions is useful to control the unit over time. With unit at steady state, i.e. in stable and close-to-work conditions, identify the following data: total voltages and absorptions with unit at full load ...
  • Page 37 7 - CONTROL...

  • Page 38: Mode Change

    7 - CONTROL Change unit state Step Action Menu - Variable Keys Display Press Main menu Select Cmd local state OFF - ECO - ON - Pump ON Confirm Exit Compressors enabled Cpmpressors disabled - Antifreeze protections user side active Compressors enabled - Pumps activated periodically - Setpoint = Setpoint EcoCool PMP_ON Cpmpressors disabled - Pumps running...

  • Page 39: Enable Scheduler

    7 - CONTROL Display the status Step Action Menu - Variable Keys Display Press Main menu Select Unit State Select General, circuit, etc Exit Scheduler It is possible to set 6 events (Off, Eco, On, Recirculating) for each week day. Step Action Menu - Variable...

  • Page 40: Keyboard Settings

    7 - CONTROL Keyboard settings Step Action Menu - Variable Keys Display Press 3 sec Press Select HMI Settings Press Press Select Local connections Allarms Before resetting an alarm identify and remove its cause. Repeated resets can cause irreversible damage. Display of alarms: step 1-3 Reset alarm: step 4-10 Example:...

  • Page 41: Alarm List

    7 - CONTROL Alarm list - 1 Description eE0001 Fault on the phase monitor input EE0003 Tripping of the protections of pump 1 on the user-side EE0004 Tripping of the protections of pump 2 on the user-side EE0005 Tripping of the protections of pump 3 on the user-side eE0008 Tripping of the protections of the pump inverter on the user-side ee0010...
  • Page 42 7 - CONTROL Alarm list - 2 Description EE0054 Tripping of the protections of pump 1 on the Recovery system side EE0055 Tripping of the protections of pump 2 on the Recovery system side EE0056 Tripping of the protections of pump 3 on the Recovery system side eE0057 Tripping of the protections of the recovery pump inverter ee0060...
  • Page 43 7 - CONTROL Alarm list - 3 Description ee1031 Recovery pressure ee1032 Recovery temperature ee1033 Recovery Out temperature ee1037 Alarm present on inverter 1 of circuit 1 ee1038 Mobdus communication error with inverter 1 of circuit 1 ee1039 Modbus communication timeout with inverter 1 of circuit 1 ee1040 Alarm present on inverter 2 of circuit 1 ee1041...
  • Page 44 7 - CONTROL Alarm list - 4 Description fF1013 Circuit blocked due to maximum pressure alarm Indicates a pressure value, on the high pressure side, close to the circuit block threshold for maximum ff1014 pressure fF1015 Circuit blocked due to maximum pressure alarm ff1016 Indicates a high compression ratio value close to the circuit blocking threshold fF1017...
  • Page 45 8 - MAINTENANCE SAFETY WARNINGS FOR OPERATIONS ON UNITS CONTAINING R32 Area checks Before working on systems containing flammable refrigerants, perform safety checks to reduce the risk of combustion to the minimum. Before performing any reparation operations on the cooling system, comply with the following warnings.
  • Page 46 8 - MAINTENANCE Make sure markings and symbols are always readable; cooling pipes or components must be installed in  a position that makes improbable their exposure to substances that may corrode the components containing refrigerant, unless they are manufactured with material intrinsically resistant to corrosion or suitably protected against corrosion.
  • Page 47 8 - MAINTENANCE Check that the detector is not a possible source of ignition and that it is suitable for the refrigerant. Leak detection equipment must always be set to an LFL percentage and calibrated depending on the refrigerant used, so the correct gas percentage (25% max) must be verified. Leak detection fluids are suitable for most refrigerants, although using detergents containing chlorine should be avoided as this substance may react with the refrigerant and corrode copper pipes.
  • Page 48 8 - MAINTENANCE The mechanical manipulation equipment is available, if necessary, to handle refrigerant tanks;  All the personal protection equipment is available and employed correctly;  The recovery procedure is monitored at all times by skilled personnel;  The recovery equipment and tanks comply with suitable standards. ...
  • Page 49 8 - MAINTENANCE 4 Storage of equipment/devices The equipment must be stored in compliance with the instructions provided by the manufacturer. 5 Storing packed (unsold) equipment Packing must be performed in such a way that mechanical damage to the equipment inside it does not cause refrigerant leaks.
  • Page 50 8 - MAINTENANCE Safety Operate in compliance with safety regulations in force. To carry out the operations use protection devices: gloves, goggles, helmet, headphones, protective knee pads. All operations must be carried out by personnel trained on possible risks of a general nature, electrical and deriving from operating with equipment under pressure.
  • Page 51 8 - MAINTENANCE intervention frequency (months) Presence of corrosions Panel fixing Fan fixing coil cleaning Water filter cleaning water: quality, pH, glycol concentration check exchanger efficiency circulation pump Check of the fixing and the insulation of the power lead 10 earth cable check 11 Electric panel cleaning 12 power remote controls status 13 clamp closure, cable isolation integrity...

  • Page 52: Standby Mode

    8 - MAINTENANCE Unit booklet Foresee a unit schedule to keep trace of the interventions made on the unit. In this way, it will be easier to adequately schedule the various interventions and facilitate any troubleshooting. On the schedule note: date ...

  • Page 53: Circulation Pumps

    8 - MAINTENANCE Compressor casing heater Check: closure  Operation  Water side heat exchanger The exchanger must to be able to provide the maximum thermal exchange, therefore it is essential for the inner surfaces to be clean of dirt and build-up. Periodically check the difference between the temperature of the supply water and the condensation temperature: if the difference is greater than 8°C–10°C it is advisable to clean the exchanger.
  • Page 54 8 - MAINTENANCE Air coil  Accidental contact with the exchanger fins can cause cuts: wear protective gloves. The coil must allow maximum thermal exchange, therefore, the surface must be clear from dirt and scaling. It is recommended a quarterly cleaning of the coils, as the minimum.

  • Page 55: Refrigerant Leak Detector

    8 - MAINTENANCE Electric fans Check: the fans and the relative protection gridsare well fixed  the fan bearings (evident by noise and anomalous vibrations)  the terminal protection covers are closed and the cable  holders are properly positioned. Refrigerant leak detector Option present with compressor box For specific information refer to the component manufacturer's...
  • Page 56 9 - ANTIVIBRATION MOUNTS Anti-vibration mount support RX703P RX602-104Pr RX703P RX602-104Pr PEN400004 PEN400005 RX704P RX603-104P RX704P RX603-104P PEN400006 RZ412-X304P RX503-Z208Pr RZ412-X304P RX503-Z208Pr PEN400007 RX704P RX504-201P RX602-Z112Pr RX704P RX504-201P RX602-Z112Pr PEN40008 RZ520-X204P RZ712P RZ520-X204P RZ712P PEN40009 RZ 412-X304P RZ 412-X304P RX 502-Z202Pr RZ 412-X304P RZ 412-X304P RX 502-Z202Pr...
  • Page 57 9 - ANTIVIBRATION MOUNTS Anti-seismic spring antivibration mounts PEN400010 LaLV 2501 LaLV 245 LaLV 2501 LaLV 245 LaLV 245 LaLV 2301 LaLV 245 LaLV 2301 PEN400011 LaLV 2501 LaLV 247 LaLV 2301 LaLV 2501 LaLV 247 LaLV 2301 PEN400012 LaLV 248 LaLV 233 LaLV 248 LaLV 233...
  • Page 58 9 - ANTIVIBRATION MOUNTS...
  • Page 59 9 - ANTIVIBRATION MOUNTS...
  • Page 60 11 - DECOMMISSIONING Disconnection WARNIN G  Before performing any operation, read the warnings found in the Maintenance chapter. Avoid leak or spills into the environment. Before disconnecting the unit, the following must be recovered, if present:  refrigerant gas Warning: ...
  • Page 61 12 - RESIDUAL RISKS General In this section the most common situations are indicated,as these cannot be controlled by the manufacturer and could be a source of risk situations for people or things. Danger zone This is an area in which only an authorised operator may work. The danger zone is the area inside the unit which is accessible only with the deliberate removal of protections or parts thereof.
  • Page 62 12 - RESIDUAL RISKS If there is a fire the temperature of the refrigerant could reach values that in-crease the pressure to beyond the safety valve with the consequent possible projection of the refrigerant itself or explosion of the circuit parts that remain isolated by the closure of the tap. Do not remain in the vicinity of the safety valve and never leave the refriger-ating system taps closed.
  • Page 63 Performance - Excellence Standard acoustic configuration (ST) / Compressor soundproofing (SC) SIZE 80.3 90.4 100.4 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Cooling Cooling capacity [kW] Compressor power input [kW] 67,9 68,9 77,0 87,4 98,2 Total power input [kW] 72,3 75,7...
  • Page 64 Performance - Premium Standard acoustic configuration (ST) / Compressor soundproofing (SC) SIZE 90.3 100.3 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Cooling Cooling capacity [kW] Compressor power input [kW] 78,5 88,9 97,0 Total power input [kW] 83,0 93,3 Partial recovery heating capacity [kW] 62,7...
  • Page 65 Construction Excellence SIZE 80.3 90.4 100.4 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Compressor Type of compressors SCROLL Refrigerant R-32 No. of compressors [Nr] Rated power (C1) [HP] Rated power (C2) [HP] Std Capacity control steps Oil charge (C1) Oil charge(C2) Refrigerant charge (C1) [Kg]...
  • Page 66 Construction Premium SIZE 90.3 100.3 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Compressor Type of compressors SCROLL Refrigerant R-32 No. of compressors [Nr] Rated power (C1) [HP] Rated power (C2) [HP] Std Capacity control steps Oil charge (C1) Oil charge(C2) Refrigerant charge (C1) [Kg]...
  • Page 67 Sound levels - Excellence Standard acoustic configuration (ST) Sound Sound Sound power level (dB) - Octave band (Hz) pressure power SIZE level level 1000 2000 4000 8000 dB(A) dB(A) 80.3 90.4 100.4 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Sound levels refer to full load units, in test nominal conditions.
  • Page 68 Super-silenced acoustic configuration (EN) Sound Sound Sound power level (dB) - Octave band (Hz) pressure power SIZE level level 1000 2000 4000 8000 dB(A) dB(A) 80.3 90.4 100.4 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Sound levels refer to full load units, in test nominal conditions. The sound pressure level refers to 1 m. from the standard unit outer surface operating in open field. Measures accor- ding to UNI EN ISO 9614-2 regulations, with respect to the EUROVENT 8/1 certification, which provides for a tolerance of 3 dB(A).
  • Page 69 Sound levels - Premium Standard acoustic configuration (ST) Sound Sound Sound power level (dB) - Octave band (Hz) pressure power SIZE level level 1000 2000 4000 8000 dB(A) dB(A) 90.3 100.3 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Sound levels refer to full load units, in test nominal conditions.
  • Page 70 Super-silenced acoustic configuration (EN) Sound Sound Sound power level (dB) - Octave band (Hz) pressure power SIZE level level 1000 2000 4000 8000 dB(A) dB(A) 90.3 100.3 110.4 120.4 130.4 145.4 160.4 185.5 210.6 225.6 240.6 Sound levels refer to full load units, in test nominal conditions. The sound pressure level refers to 1 m. from the standard unit outer surface operating in open field. Measures accor- ding to UNI EN ISO 9614-2 regulations, with respect to the EUROVENT 8/1 certification, which provides for a tolerance of 3 dB(A).
  • Page 71 Operating range - Cooling Excellence ST/SC Excellence EN Ta (°C) = external exchanger inlet air temperature (D.B.) Ta (°C) = external exchanger inlet air temperature (D.B.) To (°C) = internal exchanger outlet water temperature To (°C) = internal exchanger outlet water temperature Standard unit operating range at full load Standard unit operating range at full load Unit operating range with automatic staging of the compressor capacity...
  • Page 72 Operating range - Heating Excellence ST/SC/EN Ta (°C) = external exchanger inlet air temperature (D.B.) To (°C) = internal exchanger outlet water temperature Standard unit operating range at full load Premium ST/SC/EN Ta (°C) = external exchanger inlet air temperature (D.B.) To (°C) = internal exchanger outlet water temperature Standard unit operating range at full load Unit operating range with automatic staging of the compressor capacity...
  • Page 73 Correction factors for ethylene glycol use % ETHYLENE GLYCOL BY WEIGHT Freezing temperature °C -3,9 -6,5 -8,9 -11,8 -15,6 -19,0 -23,4 -27,8 -32,7 Safety temperature °C -23,8 -29,4 Cooling Capacity Factor 0,997 0,994 0,990 0,986 0,981 0,976 0,970 0,964 0,957 0,950 Compressor power input Factor 0,999...
  • Page 74 DAAN40003_00 SIZE 80.3 EXC / 90.3 - 120.4 PRM DATA/DATE 18/12/2020 Compressor enclosure Electrical panel Control keypad Power input Water inlet 4" Victaulic Water outlet 4" Victaulic Functional spaces Lifting bracket (removed) Support points 80.3 EXC 90.0 PRM 100.3 PRM 110.4 PRM 120.4 PRM SIZE...
  • Page 75 DAAN40001_00 SIZE 90.4 - 120.4 EXC / 130.4 PRM DATA/DATE 18/12/2020 Compressor enclosure Electrical panel Control keypad Power input Water inlet 4" Victaulic Water outlet 4" Victaulic Functional spaces Lifting bracket (removed) Support points 90.4 EXC 100.4 EXC 110.4 EXC 120.4 EXC 130.4 PRM SIZE...
  • Page 76 DAAN40002 SIZE 130.4 - 160.4 EXC DATA/DATE 10/02/2021 Compressor enclosure Electrical panel Control keypad Power input Water inlet 5" Victaulic Water outlet 5" Victaulic Functional spaces Lifting bracket (removed) Support points 130.4 EXC 145.4 EXC 160.4 EXC SIZE SC/EN SC/EN SC/EN Length 5091...
  • Page 77 DAAN40007_00 SIZE 145.4 - 160.4 PRM DATA/DATE 12/02/2021 Compressor enclosure Electrical panel Control keypad Power input Water inlet 5" Victaulic Water outlet 5" Victaulic Functional spaces Lifting bracket (removed) Support points 145.4 PRM 160.4 PRM SIZE SC/EN SC/EN Length 4114 4114 4114 4114...
  • Page 78 DAAN40008 SIZE 185.5 - 210.6 PRM DATA/DATE 11/02/2021 Compressor enclosure Electrical panel Control keypad Power input Water inlet 5" Victaulic Water outlet 5" Victaulic Functional spaces Lifting bracket (removed) Support points 185.5 PRM 210.6 PRM SIZE SC/EN SC/EN Length 5091 5091 5091 5091...
  • Page 79 DAAN40006_00 SIZE 185.5 - 210.6 EXC / 225.6 - 240.6 PRM DATA/DATE 10/02/2021 Compressor enclosure Electrical panel Control keypad Power input Water inlet 5" Victaulic Water outlet 5" Victaulic Functional spaces Lifting bracket (removed) Support points 185.5 EXC 210.6 EXC 225.6 PRM 240.6 PRM SIZE...
  • Page 80 DAAN40004 SIZE 225.6 - 240.6 EXC DATA/DATE 11/02/2021 Compressor enclosure Electrical panel Control keypad Power input Water inlet 5" Victaulic Water outlet 5" Victaulic Functional spaces Lifting bracket (removed) Support points 225.6 EXC 240.6 EXC SIZE SC/EN SC/EN Length 7045 7045 7045 7045...
  • Page 82 Via Camp Lonc 25, Z.I. Villapaiera 32032 Feltre (BL) - Italy Tel. +39 0439 3131 - Fax +39 0439 313300 info@clivet.it...
