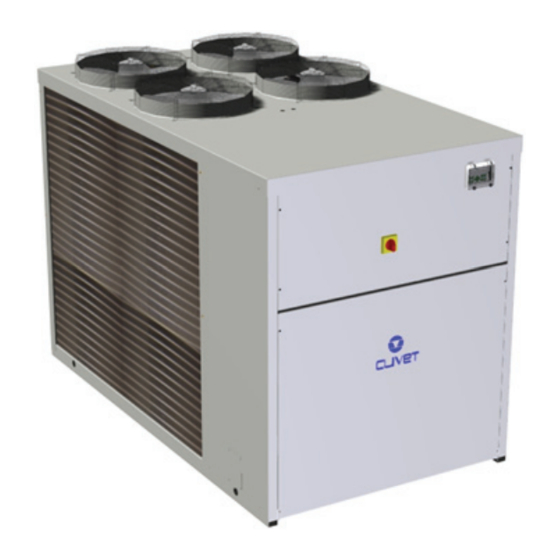

- Page 1 WSAT-XEE 82-102-122-162- 182-222-262-302 AIR COOLED WATER CHILLER FOR OUTDOOR INSTALLATION Installation and Use Manual M0G140F7-01 06/11/07...
-
Page 3: Table Of Contents
U N I T I D E N T I F I C A T I O N ................4 I N S T R U C T I O N S F O R T H E U S E R . -
Page 4: Unit Identification
UNIT IDENTIFICATION SERIAL NUMBER LABEL The units are identified by the serial number label shown here. The label lists the type of unit (series and size), serial number, year of manufacture, number of electrical diagram, main technical data, logo and address of the manufacturer. The label is placed on the unit, generally near the electrical panel and also on the external panelling. -
Page 5: Instructions For The User
INSTRUCTIONS FOR THE USER • This is a partial sintex of the information provided in the manual; carefully read this manual • Carefully read this manual. Keep it with the electrical diagram. Make it available to technicians for servicing. • Ask the installer for training on start-up, shutdown, changing set points, placing in at-rest status, maintenance, what to do or not to do in the event of a breakdown. -
Page 8: General Warnings
Perform periodical inspections to locate possible loosened or broken parts. If the repairs are not performed, there will Clivet products bear the CE mark, in compliance with the be a higher risk for things and peoples to become damaged requirements of the following EC directives, including the and injured. -
Page 9: Residual Risks
RESIDUAL RISKS and precaution is taken when positioning and securing the GENERAL unit. This section lists some of the more common situations If the unit is easily accessible to children, unauthorized which, being beyond the control of the manufacturer, could persons or animals, this is a situation that can give rise be a source of risk to persons or property. - Page 10 Contact with parts that could become live when the unit is injured or suffer toxic effects. Always wear suitable clothing started up can result in electric shock, burns or death by and protective goggles when working in potential hazard electrocution. areas.
- Page 11 Chemical -physical Relative density, gas (air=1) Heavier than air. properties. Solubility in water (mg/l). Not known, but probably very low. Aspect. Colourless liquefied gas. Smell. Simile to ether. Point of ignition. Don’t ignite. Stability and Stability and reactivity. No decomposition if used following the instructions. reactivity.
-
Page 12: R E C E P T I O
RECEPTION INSPECTION UPON RECEPTION HANDLING Check on arrival that the unit has not suffered damage The operation of handling the unit must be carried out during transit and that it is complete in every part as respecting the instructions of the safety norms in force specified order. -
Page 13: P O S I T I O N I N
W1 , W2 , W3 etc . On each anti-vibration device (if provided by CLIVET), its identifying code is stamped, for example C6100100 Flexible joints are necessary on all the hydraulic/... - Page 14 Tree Keep the coil clean. Avoid Avoid snow build-up during Consider clearances and direction of expelled air. zones with leaves / dirt / winter operation corrosives. elastic joint floating floor soundproofing Prevent the transmission of Provide windbreaks in locations with strong winds. vibrations.
-
Page 15: W A T E R C O N N E C T I O N
WATER CONNECTIONS ANTI-VIBRATION DEVICES GENERAL In case of units with anti-vibration devices, it is necessary to Piping must be designed with the least possible number of assemble elastic joints, even on water connections. bends and head variations. If the pressure chute of the RISK OF FREEZE installation is above the useful prevalence of the pump, the If the unit and the relevant water connections are subject to... -
Page 16: Diagram Of Recommended Use Side Connection
DIAGRAM OF RECOMMENDED USE SIDE CONNECTION Depending on the type of machine and the selected setup, some components may be integrated into the unit. 1. Charged system pressure 8. filter switch 9. filling valve 2. vent 10. antivibration joints 3. pump 11. -
Page 17: E L E C T R I C A L C O N N E C T I O
ELECTRICAL CONNECTION refer to standard units. In the event of differences between GENERAL the data of the registration plate and the data shown in this The characteristics of the electrical lines and relevant manual, as well as in the technical chart, please refer to the components must be determined by SPECIALIZED DATA SHOWN IN THE REGISTRATION PLATE. -
Page 18: Functional Connections
FUNCTIONAL CONNECTIONS FOR ALL THE CONNECTIONS MAKE REFERENCE TO THE ELECTRICAL PANEL SUPPLIED WITH UNIT Use voltage-free remote control devices that are suitable to commutate very low loads (12V, 10mA) Few inputs must be activated by configuration parameters whose access is reserved to authorized assistance centres (in order to avoid unauthorized modifications) ON / OFF FROM REMOTE CONTROL Generally the unit is delivered with bridged terminals;... -
Page 19: System Composition
SET POINT COMPENSATION ON THE TEMPERATURE OR EXTERNAL ENTHALPY Optimises unit energy efficiency by automatically adjusting the set-point according to enthalpy or the outside temperature. Requires the external humidity probe or the outside temperature probe, which are optional for certain types of units and must be installed by the customer and enabled by parameters 152=1 and 156=1. - Page 20 1 2 3 4 5 6 7 Below the indications for the serial connection ; refer anyway to the CLIVET “RS 485 NETWORKS – GUIDELINES” document and ask for the COMMUNICATION PROTOCOL about the COMPACT-MEDIUM electronics Couple of conductors twisted and shielded The total length of each single serial line, don’t...
-
Page 21: S T A R T - U
START-UP ALL THE EQUIPMENT MUST BE COMMISSIONED BY AUTHORISED SERVICE CENTRES. THIS SERVICE IS LIMITED TO START-UP OF THE UNIT ONLY AND NOT THE CONNECTIONS OR INSTALLATION OF THE SYSTEM. ONLY QUALIFIED TECHNICIANS MUST PERFORM THE FOLLOWING OPERATIONS. PRELIMINARY CHECKS ELECTRICAL SYSTEM Before checking, please verify the following Check the proper tightening of the screws that fix the... -
Page 22: Unit Equipped With Scroll Compressors
unit cooling power (kW) x 860 = Dt (°C) x flow rate (L/h). UNIT EQUIPPED WITH SCROLL The cooling power is shown in the TABLE ON GENERAL COMPRESSORS TECHNICAL DATA included in this manual, referred to The GENERAL TECHNICAL DATA table shows the type specific air/water conditions, or in the tables on cooling of compressor on the unit. -
Page 23: C O N T R O
CONTROL The HEATING mode functions are active only on HEAT PUMP unit version . In ONLY COOL units, the relative parameters are VISIBLE but NOT ACTIVE , for example the winter setpoint. OPERING MODES Unit can be switched on and off by: ON –... -
Page 24: Set Point
SET-POINT CORRECTIONS The correction aim is to optimize the unit energetic efficiency. To do this the corrections modify the set point in a dynamic way in function of determined variables: for example in summer operating with low outside temperatures, so with a reduced charge, is possible to obtain the internal comfort also with set point higher than standard, obtaining an higher energetic efficiency. -
Page 25: Keypad
MAINTENANCE This way, the plant can be kept within the operating limits even when the unit is OFF or on STANDBY, for example during the weekend or the nighttime. Periodically the system activates the circulation pump, measures the water temperature and activates the compressor, if required, to take the water temperature to the set-point level. - Page 26 ACCESSIBLE PARAMETERS FROM REMOTE OR SERVICE KEYBOARD num. description Value Par. °C Summer secondary Set Point Summer Set Point °C Summer Set Point Maintenance °C Enables Summer Maintenance Antifreeze resistanceset point °C Antifreeze alarm °C Limit of deactivation before reaching the antifreeze steps °C Configures remote inputs: 1 = H/C by keypad or supervisor Keypad address...
- Page 27 Visible status from remote keyboard or service keyboard INDEX DESCRIPTION VALUE Outdoor Humidity 0-100% Machine Clock - fed unit hours Working hours C1 Pickups C1 Working hours C2 Pickups C2 Keypad software AS – t Year of certification of the keyboard SW 2007 Month of certification of the keyboard SW Day of certification of the keyboard SW...
- Page 28 ALARM VISUALIZATION E 11 flashing opened alarm log Alarm code short pressure Alarm unit hours ALARM The most recent alarm is To esc visualized Short pressure Use the arrow keys to ALARM visualize other alarms To RESET LONG pressure ALARM According to the unit configuration and to the current options, some status can not be used.
-
Page 29: R O U T I N E M A I N T E N A N C
ROUTINE MAINTENANCE BEFORE UNDERTAKING ANY SORT OF MAINTENANCE OR CLEANING, DISCONNECT THE ELECTRICAL POWER SUPPLY TO THE UNIT, AND ENSURE THAT OTHER PEOPLE CANNOT RE-CONNECT IT . All equipment is subjected to wear out. cleaning activities; otherwise, controls have to be performed by specialized technicians (INSPECTIONS). -
Page 30: Maintenance Inspections
MAINTENANCE INSPECTIONS Foresee inspection assistance carried out by authorized • verify the leakage from the refrigerating circuit centers or by qualified personnel. • Verify the protection devices (safety valves, pressure The inspections should be carried out at least: switches, thermostats, etc.), the adjustment systems, •... -
Page 31: Refrigerant Tables
REFRIGERANT TABLES THIS SECTION IS DEVOTED ONLY TO QUALIFIED TECHNICIANS THAT KNOW THE FOLLOWING: • THE OPERATIONAL PRINCIPLES OF THE REFRIGERATING CIRCUIT OPERATION • THE MODES OF DETECTING TEMPERATURE AND PRESSURE • THE RISKS RELEVANT TO THESE OPERATIONS The data of the tables allow the testing of the refrigerating •... - Page 32 R410A R410A R410A R410A Ts [°C] Ts [°C] Ts [°C] Ts [°C] -51.66 11.0 13.40 22.0 37.88 33.0 54.54 -48.02 11.2 13.97 22.2 38.23 33.2 54.80 -44.83 11.4 14.54 22.4 38.58 33.4 55.06 -41.98 11.6 15.10 22.6 38.93 33.6 55.32 -39.40 11.8 15.66...
-
Page 33: T R O U B L E S H O O T I N
TROUBLESHOOTING THE OPERATIONS MUST BE CARRIED OUT BY TECHNICAL QUALIFIED PERSONNEL HAVING THE REQUISITES UNDER LAW REQUISITES AND IN CONFORMITY WITH THE SAFETY REGULATIONS IN FORCE. THE INTERVENTIONS WITHIN THE WARRANTY PERIOD WILL BE CARRIED OUT BY AUTHORIZED SERVICE CENTERS. BEFORE RESETTING AN ALARM, IDENTIFY AND ELIMINATE ITS CAUSE. - Page 34 FAN PROTECTION COMPRESSOR PROTECTION Identify the part on the wiring diagram Identify the part on the wiring diagram fan mechanically jammed, bearings / drive belt (if Loose electric contacts/terminals, leads broken present) electrical windings interrupted Loose electric contacts/terminals, leads broken Vacuum power voltage below the limits electrical windings of fan interrupted power contactors / contacts defective...
- Page 35 CONVERSION TABLE FOR RESISTANCETEMPERATURE FOR TEMPERATURE PROBES NTC To check the reliability of the probes in the event of alarm signals, the table below shows the relationship between the temperature and the resistancevalue in Ohms. Temperature Heater Temperature Heater Temperature Heater Temperature Heater...
-
Page 36: D E C O M M I S S I O N I N G O F T H E U N I
DECOMMISSIONING OF THE UNIT DISCONNECTING THE UNIT DISMANTLING AND DISPOSAL The units must be disconnected by authorised personnel, THE UNIT MUST ALWAYS BE SENT TO AUTHORISED who before proceeding must first read the Residual Risks CENTRES FOR DISMANTLING AND DISPOSAL. section in this manual. - Page 37 TECHNICAL DATA SIZE Cooling Cooling capacity 24,3 28,2 33,7 45,9 54,4 64,1 72,2 Comp. input power 12,1 13,5 19,2 22,3 25,5 Total input power 10,4 12,5 14,2 16,7 19,9 23,4 26,6 2,73 2,72 2,71 2,81 2,74 2,73 2,74 2,71 ESEER 4,32 4,48 4.18...
- Page 38 OPERATING LIMITS (COOLING) SIZE EXTERNAL EXCHANGER Max air intake temperature °C 48,5 48,5 48,5 48,5 47,5 Max air intake temperature °C 50,5 50,5 50,5 50,5 49,5 Min air intake temperature °C INTERNAL EXCHANGER Max air intake temperature °C Min. water supply temperature °C Min.
- Page 39 DIMENSIONS Sizes 82-102-122 9 - 14 9 - 13 9 - 13 151.5 1225 326.5 22.5 22.5 1703 151.5 1225 326.5 700 (15) "G" 700 (15) (1) COMPRESSOR Size (2) FINNED EXCHANGER (3) HELICAL FANS 1003 1004 (4) PLATE EXCHANGER (5) EXCHANGER WATER RETURN (6) EXCHANGER WATER SUPPLY Length...
- Page 40 Sizes 162-182-222 9 - 13 9 - 13 9 - 13 1446 21.5 1050 21.5 1093 1932 1446 700 (15) "G" 700 (15) (1) COMPRESSOR Size (2) FINNED EXCHANGER (3) HELICAL FANS mm 1040 1044 1043 (4) PLATE EXCHANGER (5) EXCHANGER WATER RETURN (6) EXCHANGER WATER SUPPLY Length mm 1932 1932 1932...
- Page 41 Sizes 262-302 9 - 13 9 - 13 9 - 13 1612 21.5 1050 21.5 1093 2332 1612 700 (15) "G" 700 (15) (1) COMPRESSOR Size (2) FINNED EXCHANGER 1105 1100 (3) HELICAL FANS 1227 1232 (4) PLATE EXCHANGER (5) EXCHANGER WATER RETURN (6) EXCHANGER WATER SUPPLY Length 2332...
- Page 44 Fax + 33 (0)1 69 20 60 76 info.de@clivet.com info@clivettfa.com info@clivet.es info.fr@clivet.com The data contained in this bulletin is not binding and may be changed by the manufacturer without prior notice. All reproduction, even partial, is PROHIBITED. © COPYRIGHT - CLIVET S.P.A. - FELTRE (BL) - ITALIA...
Need help?
Do you have a question about the WSAT-XEE Series and is the answer not in the manual?
Questions and answers
Como funciona o aquipamento xee
The CLIVET WSAT-XEE Series is an air-cooled water chiller for outdoor installation. It works by cooling water through an evaporator and uses fans to remove heat. The unit operates in cooling mode by activating the compressor when the supply water temperature rises above a setpoint. It regulates temperature based on the supply water temperature. In heat pump versions, it can also operate in heating mode. The unit includes functions for ECO settings, thermoregulation, and alarm status. Proper installation includes water connections, insulation, and pressure controls to ensure efficient operation.
This answer is automatically generated
Como funcionam os comandos
The controls for the CLIVET WSAT-XEE Series work through a keypad and various parameters that manage unit operation, maintenance, and alarms:
1. Keypad Control: The remote keypad allows parameter adjustments. For example, parameter 49 enables second set-point control mode.
2. Maintenance Mode: Automatically maintains water temperature during standby by activating pumps and compressors. Controlled by parameters 42 (summer set-point), 44 (summer maintenance activation), and 45 (winter maintenance activation).
3. Alarms and Pre-alarms: Alarms are shown with flashing codes and are reset automatically once the issue is resolved. Pre-alarms show fixed codes and do not activate relays.
4. Compensations: Set-point compensations adapt unit operation to system needs, reducing compressor starts and protecting components. These include time- and charge-based offsets to delay compressor activation.
5. Glycol Operation: When using ethylene glycol, parameters like 32 (summer set-point), 77 (antifreeze resistance), 80 (antifreeze alarm), and 84 (pre-alarm threshold) must be adjusted.
6. Scan Time Logic: The system uses variable scan time to determine when to activate the compressor, based on temperature readings and set-point comparisons.
These controls allow efficient, automatic system operation while protecting components and maintaining set-point temperatures.
This answer is automatically generated

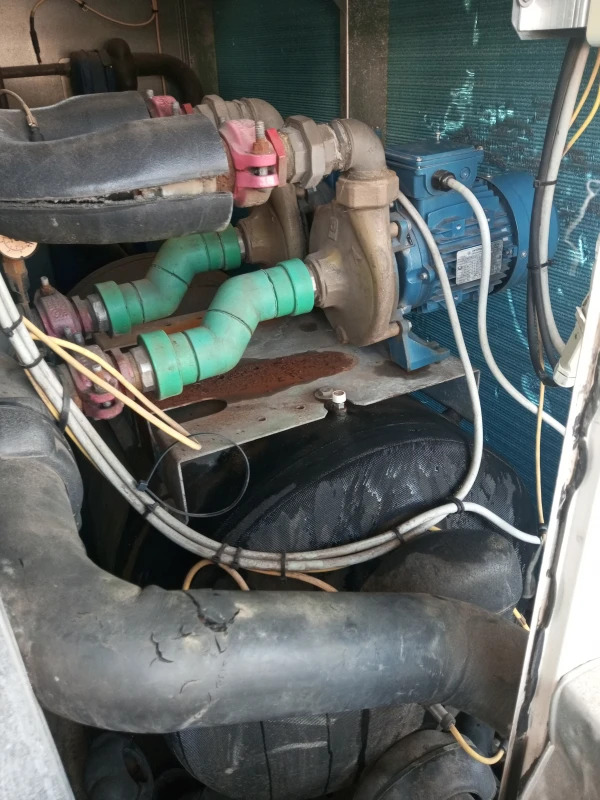

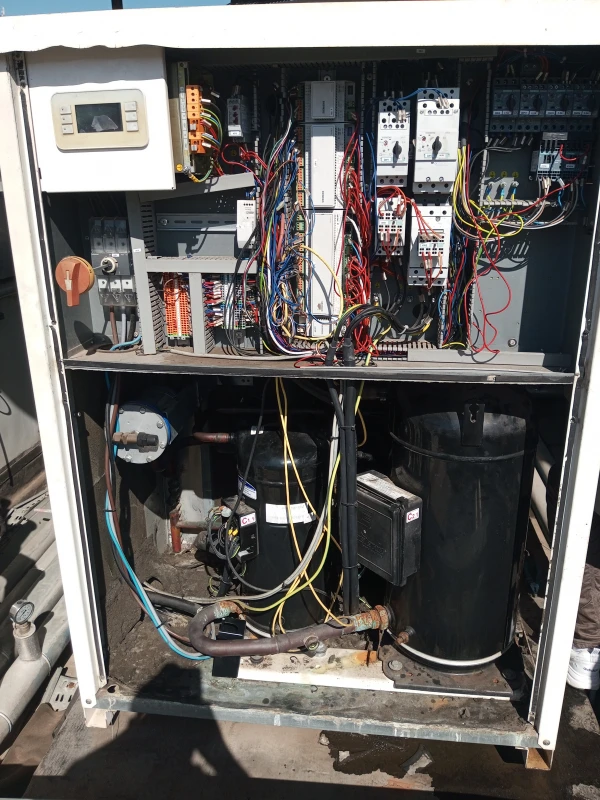

Como funcionam as bombas de agua do xee
