Penberthy SErIES N6 GaGEcockS
InstallatIon, operatIon and maIntenance InstructIons

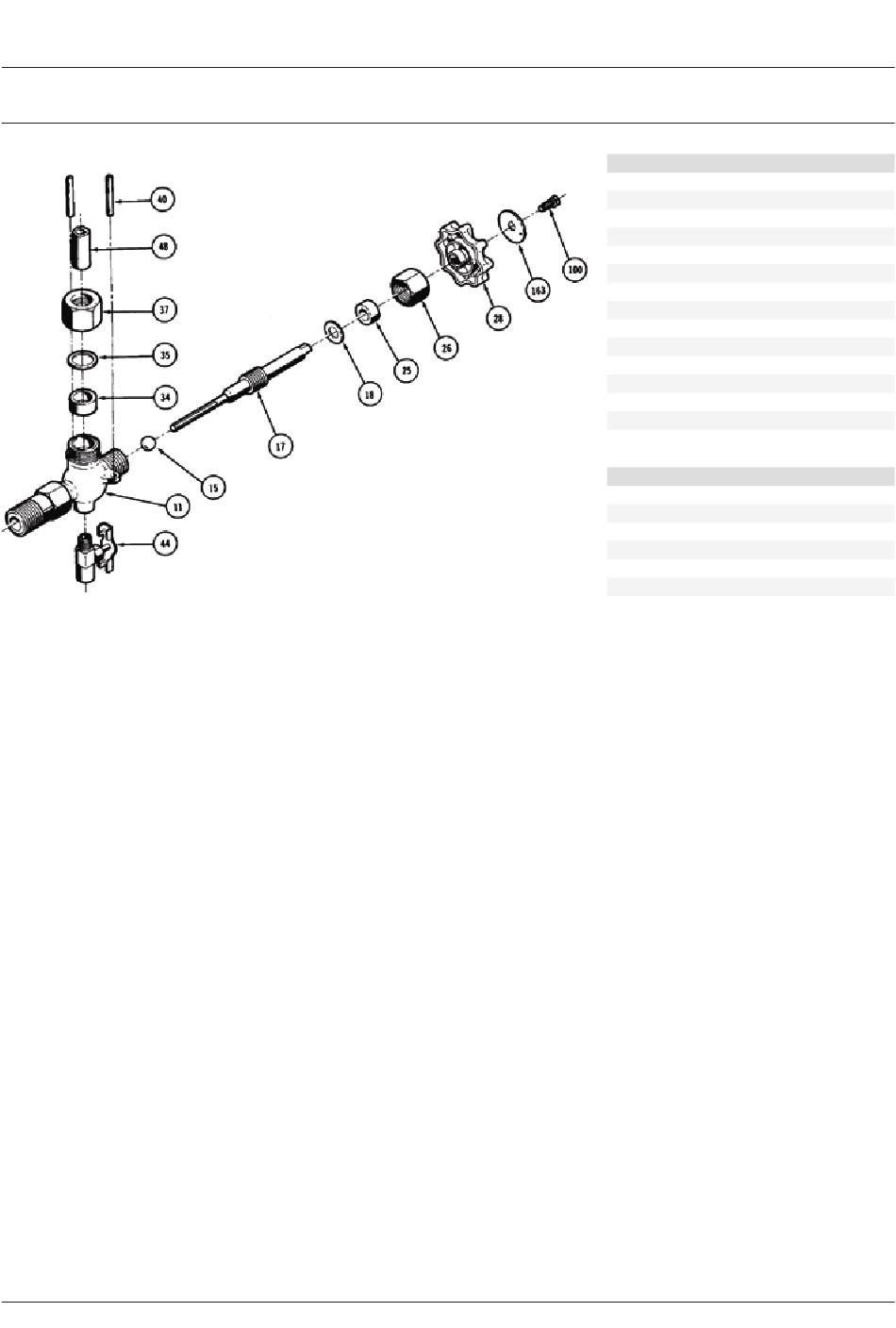

10 exPlOded Parts dIagraM
FIGUrE 1
Parts lIst
Item
description
40
rod
48
Glass
37
Nut, glass packing
35
retainer, glass packing
34
Packing, glass
11
Body
15
Ball
17
Stem
18
retainer, stem packing
25
Packing, stem
26
Nut, stem packing
28
Handwheel
163
Nameplate
100
Screw
reCOMMended sPare Parts
Item
description
18
retainer, stem packing
25
Packing, stem
26
Nut, stem packing
34
Packing, glass
35
retainer, glass packing
37
Nut, glass packing
48
Glass
recommended maximun quantities should provide
spare parts for 10% of the gagecocks in service.
Min. qty.
2
2
1
2
2
1
1
7
