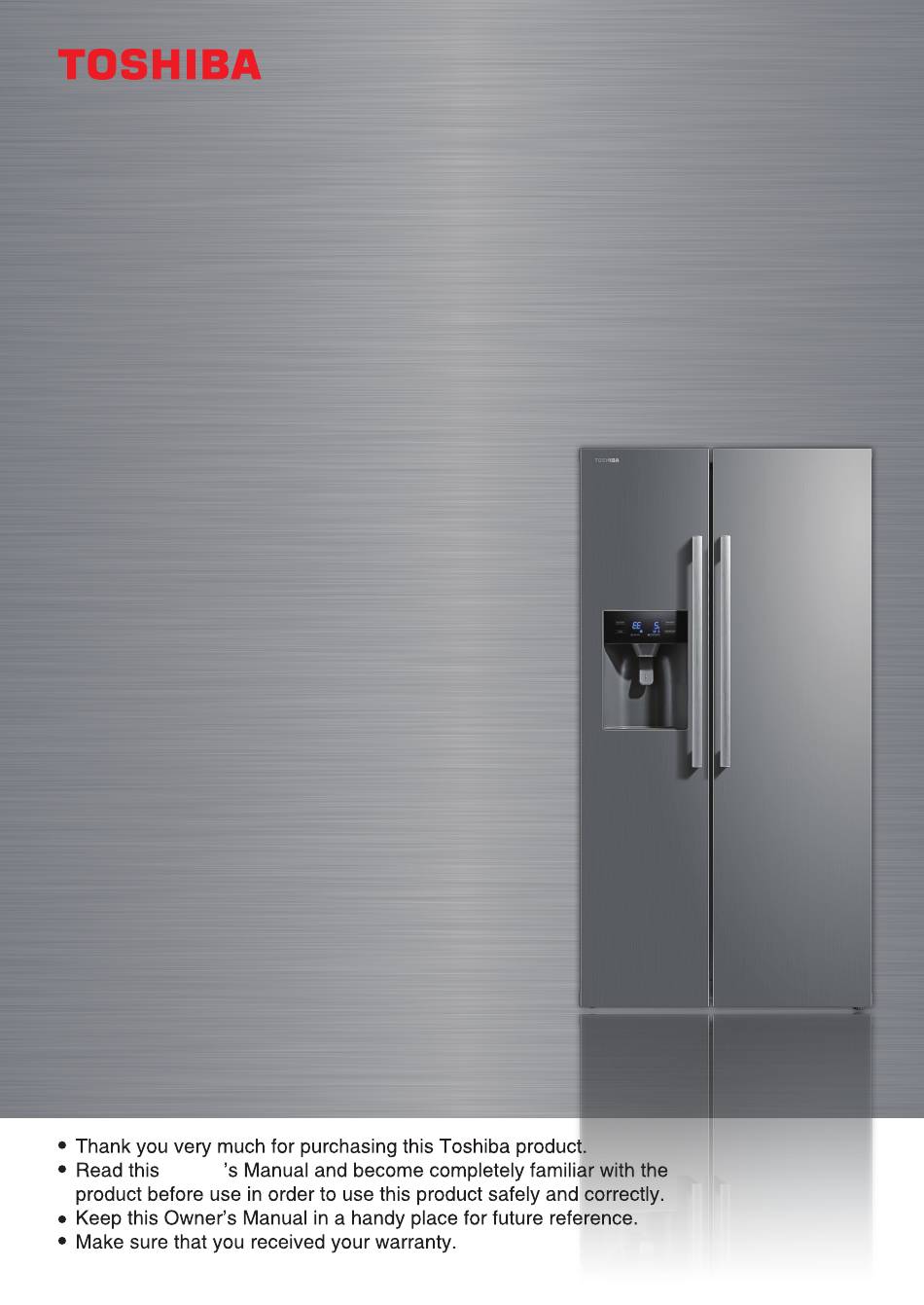

- Page 1 Owner’s Manual REFRIGERATOR FREEZER For Home Use Only GR-RS508WE-PMJ(02) GR-RS508WE-PMM(02) Owner...
-
Page 2: Table Of Contents
CONTENTS 1. Safety warnings 1.1 Warning 1.2 Meanings of safety warning symbols 1.3 Electricity related warnings 1.4 Warnings for using 1.5 Warnings for placement 1.6 Warnings for energy 1.7 Warnings for disposal 2. Proper use of the refrigerator 2.1 Placement 2.2 Leveling feet 2.3 Leveling door 2.4 Changing the Light... -
Page 3: Safety Warnings
1. Safety warnings READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. • WARNING: Risk of fire disaster and explosion The refrigerant of the appliance is flammable, please be care not to damange the cooling pipes during installation and transportation.if gas leakage happens, please contact the distributor or local service... - Page 4 • WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • WARNING: Do not damage the refrigerant circuit. • WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Page 5 • For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Meanings Of Safety Warning Symbols
1.2 Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;... -
Page 7: Warnings For Using
• Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line. • Please ask for help from persons with professional qualification to examine whether the socket is with reliable grounding line or not. • It is the end-consumers' responsibility to change the ungrounded socket into grounded socket. -
Page 8: Warnings For Placement
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite. • Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused. -
Page 9: Warnings For Energy
1.6 Warnings for energy • Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed. -
Page 10: Proper Use Of The Refrigerator
2. Proper use of refrigerators 2.1 Placement • Before initial start, keep the refrigerator still for half an hour before connecting it to power supply. • Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. -
Page 11: Leveling Feet
2.2 Leveling feet 1. Precautions before operation: Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. 2. Schematic diagram of the levelling feet: Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury. 3. -
Page 12: Leveling Door
2.3 Leveling door 1. Precautions before operation: Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the door , precautions shall be taken to prevent any personal injury. 2. Schematic diagram of levelling the door body. List of tools to be provided by the user Wrench Adjusting nut... -
Page 13: Changing The Light
2.4 Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. 2.5 Starting • Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high. -
Page 14: Structure And Functions
3. Structure and functions 3.1 Key components LED lighting Ice maker and Ice storage bin Filter assembly LED lighting Glass shelf Glass shelf Door tray Fruits and Door tray vegetables box Drawer ( Filter internal ) LED lighting Ice maker and Ice storage bin LED lighting Glass shelf... - Page 15 Refrigerating chamber • The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term. • Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
-
Page 16: Functions
3.2 Functions (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) Display screen Button operation 1. Freezer compartment temperature A. Freezer compartment temperature 2. Quick REF. adjustment 3. Quick FRZ B. - Page 17 Under normal circumstances, if there is no any manual operation on refrigerator last for 30 seconds, the control panel will lock itself automatically,and in locked state, the display light will go out after 30 seconds. 2. Lock / unlock In the unlocked state, long press the button for 3 seconds, enter the locked state;...
- Page 18 9. Quick-freeze time setting In quick-freeze mode, long press the "FRZ.TEMP" button for 3 seconds,the refrigerating temperature area will display the existing quick-freeze time,click the "FRZ.TEMP" button again to set the quick-freeze time, the setting circulates as "26-48-26-48..",lock the panel or long press the "FRZ.TEMP"...
-
Page 19: Fetching Water And Ice
3.3 Fetching water and Ice • Sounds will be produced during making ice cubes and crushed ice: Water valve will produce buzzing sounds; water's flowing into ice vessel will produce sounds; grinding machine's grinding ice into small pieces or product ice's falling into the container will produce sounds. The sounds are normal. - Page 20 2. Fetching crushed ice cushion Keep clicking the buttons until the icon turns on. Make the container tight with mouth of dispenser to prevent the side jet. Press the container in the direction of fetching water cushion . Fill the container with crushed ice. Remove the container from fetching water cushion and end the exporting of crushed ice.
-
Page 21: Maintenance And Care Of The Refrigerator
4. Maintenance and care of the appliance 4.1 Overall cleaning • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. -
Page 22: Clean The Ice Container
4.3 Clean the Ice Container • Ice in the ice container may block the outlet because of lumping or other reasons. In this case the ice container needs cleaning or eliminating block. Ice Container (2) (1) Press the button to cancel the function of ice-making and power off the refrigerator(unplug from the socket). -
Page 23: Defrosting
backstop raise the glass shelf upwardsk, then pull it out 4.5 Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. -
Page 24: Trouble Shooting
5. Trouble shooting • You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Occurrence Possible cause/inspection items Check whether the appliance is connected to power or whether the plug is in well contact Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped... -
Page 25: Disposal Of Your Appliance
6. Disposal of your appliance Correct Disposal of this product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. - Page 26 Hefei Hualing Co.,Ltd. 176 Jin Xiu Road, Hefei Economic and Technological Development MADE IN CHINA...
