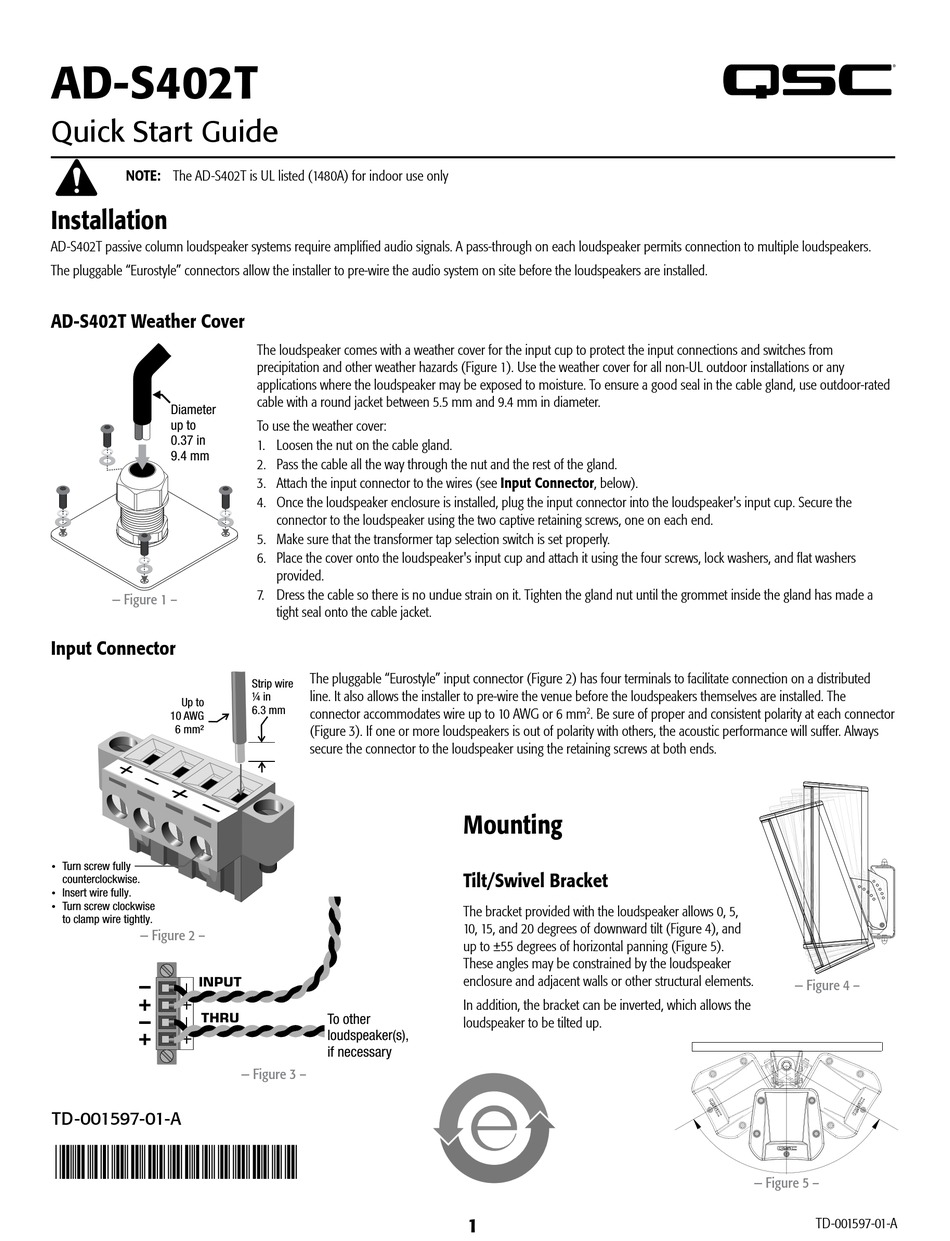

QSC AD-S402T Quick Start Manual

AD-S402T
Quick Start Guide
NTTE: The AD-S402T is UL listed (1480A) for indoor use only
Installation
AD-S402T passive column loudspeaker systems require amplified audio signals. A pass-through on each loudspeaker permits connection to multiple loudspeakers.
The pluggable "Eurostyle" connectors allow the installer to pre-wire the audio system on site before the loudspeakers are installed.
AD-S402T Weather Cover
Diameter
up to
0.37 in
9.4 mm
— Figure 1 –
Input Connector
Up to
10 AWG
6 mm²
Ÿ
Turn screw fully
counterclockwise.
Ÿ
Insert wire fully.
Ÿ
Turn screw clockwise
to clamp wire tightly.
— Figure 2 –
INPUT
THRU
TD-001597-01-A
*TD-001597-01*
The loudspeaker comes with a weather cover for the input cup to protect the input connections and switches from
precipitation and other weather hazards (Figure 1). Use the weather cover for all non-UL outdoor installations or any
applications where the loudspeaker may be exposed to moisture. To ensure a good seal in the cable gland, use outdoor-rated
cable with a round jacket between 5.5 mm and 9.4 mm in diameter.
To use the weather cover:
1. Loosen the nut on the cable gland.
2. Pass the cable all the way through the nut and the rest of the gland.
3. Attach the input connector to the wires (see Input Connector, below).
4. Once the loudspeaker enclosure is installed, plug the input connector into the loudspeaker's input cup. Secure the
connector to the loudspeaker using the two captive retaining screws, one on each end.
5. Make sure that the transformer tap selection switch is set properly.
6. Place the cover onto the loudspeaker's input cup and attach it using the four screws, lock washers, and flat washers
provided.
7. Dress the cable so there is no undue strain on it. Tighten the gland nut until the grommet inside the gland has made a
tight seal onto the cable jacket.
The pluggable "Eurostyle" input connector (Figure 2) has four terminals to facilitate connection on a distributed
Strip wire
line. It also allows the installer to pre-wire the venue before the loudspeakers themselves are installed. The
¼ in
6.3 mm connector accommodates wire up to 10 AWG or 6 mm
(Figure 3). If one or more loudspeakers is out of polarity with others, the acoustic performance will suffer. Always
secure the connector to the loudspeaker using the retaining screws at both ends.
To other
loudspeaker(s),
if necessary
— Figure 3 –
2 . Be sure of proper and consistent polarity at each connector
Mounting
Tilt/Swivel Bracket
The bracket provided with the loudspeaker allows 0, 5,
10, 15, and 20 degrees of downward tilt (Figure 4), and
up to ±55 degrees of horizontal panning (Figure 5).
These angles may be constrained by the loudspeaker
enclosure and adjacent walls or other structural elements.
In addition, the bracket can be inverted, which allows the
loudspeaker to be tilted up.
1
— Figure 4 –
— Figure 5 –
120 degrees pan
at 0 degrees tilt
