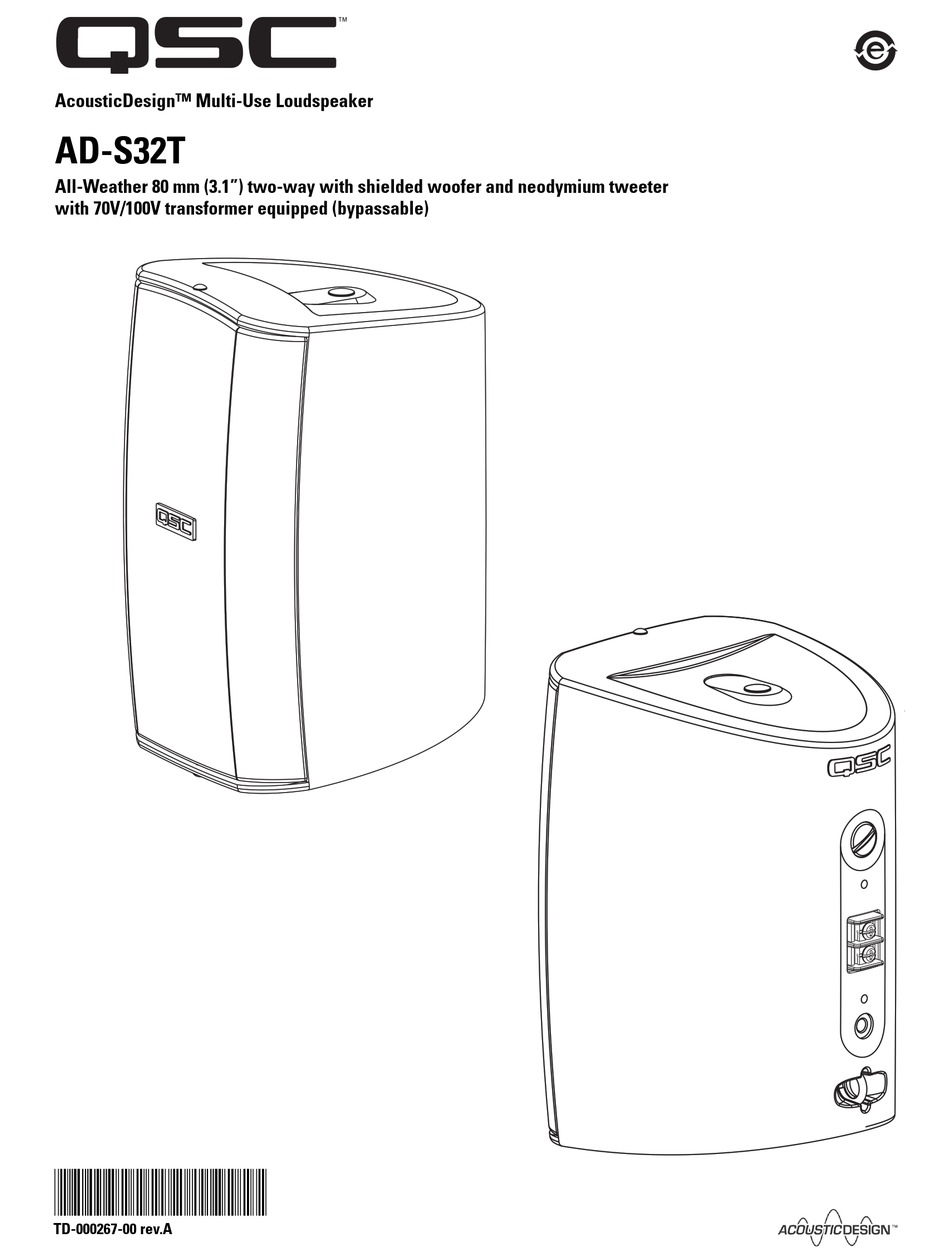

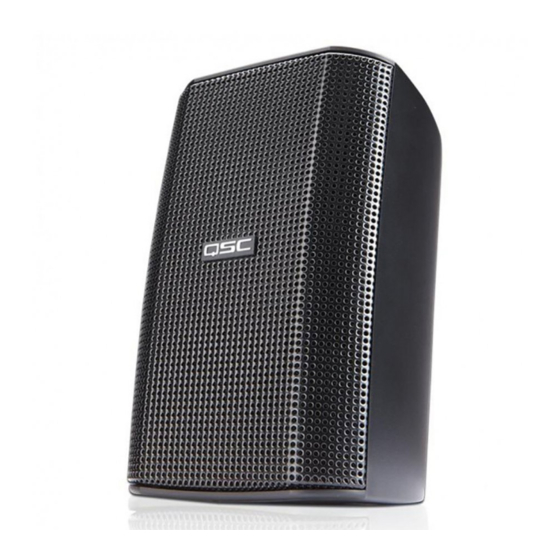

- Page 1 AcousticDesign™ Multi-Use Loudspeaker AD-S32T All-Weather 80 mm (3.1”) two-way with shielded woofer and neodymium tweeter with 70V/100V transformer equipped (bypassable) *TD-000139-00* TD-000267-00 rev.A...
- Page 2 (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
-
Page 3: What's Included
SPL in a lightweight, weather resistant enclosure. The low frequency driver is magnetically shielded and the neodymium high frequency driver has very little stray magnetic field, making the AD-S32T perfect for use near video monitors. The included ball mount and yoke mount provide secure and versatile installation. These loudspeakers make an excellent choice for a wide variety of SR applications. - Page 4 The safety cable should not be attached to the primary mount. Connection AD-S32T On the AD-S32T you must set the transformer tap selector switch to the appropriate setting before applying audio signals. Terminations The terminals will accept: •bare wire (up to 0.10” or 2.59 mm diameter) •spade lug terminals...
-
Page 5: Painting The Loudspeaker
AD-S32T 70V/100V Transformer Tap Selection AD-S32T models are equipped with a 70V/100V matching transformer for distributed audio systems. There is a transformer tap selector switch on the rear panel for setting the power level of the loudspeaker. The switch may also be set for 8 ohm operation, bypassing the transformer completely. -
Page 6: Specifications
8000 Hz 5.35 10000 Hz 13.8 AD-S32T: 4.0 lb. net, 10 lb. shipping 100° horizontal. x 60° vertical high impact polystyrene, removable aluminum grill Screw terminal connector for wire, bare wire or spade lugs. Included: Ball mount adapter with wall plate and yoke mount with retaining knobs. - Page 7 Dimensions...
