- Page 1 Operating Manual BaehrTec S1200 BaehrTec S1200 Spray pedicure device Handpiece included Operating Manual English – V100 – Status 09/2015 Page 1/48...
-
Page 2: Table Of Contents
Operating Manual BaehrTec S1200 Table of Contents Page Table of Contents ......................2 Users notice ......................... 3 Symbols ....................... 5 2.1.1 Symbols in these operating instructions ..........5 2.1.2 Type label with output details ..............5 2.1.3 Symbols on the packaging ..............6 Foreword ...................... -
Page 3: Users Notice
Operating Manual BaehrTec S1200 Users notice This operating manual must be read through thoroughly before using the device for the first time and the contained instructions and rules must be precisely observed. These operating instructions form part of the device user agreement. By thoroughly... - Page 4 Operating Manual BaehrTec S1200 If the power cable / insulation shows signs of damage. If the device was exposed to moisture and / or wetness. If the device has been dropped and / or if the device housing is damaged.
-
Page 5: Symbols
Operating Manual BaehrTec S1200 Symbols 2.1.1 Symbols in these operating instructions Attention! This symbol indicates a danger to humans or the device. This symbol must always be given the utmost attention. Read the corresponding sections especially carefully and adhere very strictly to the specifications. -
Page 6: Symbols On The Packaging
Operating Manual BaehrTec S1200 Electrical/electronic waste. Devices with this label must be disposed of properly and must not be put in household waste. This symbol indicates which fuse(s) is are used in the device. Protection class II This is a device of protection class II with functional earthing. -
Page 7: Foreword
Furthermore, the micro-processor-controlled electronics ensure maximum power and performance from the electronic components. The BaehrTec S1200 also has an electronic adjuster for the handpiece motor that provides power and performance also in the lowest rotation speed ranges. Try it for yourself – you'll be amazed. -
Page 8: General Product Description And Application Purpose
Operating Manual BaehrTec S1200 General product description and application purpose The pedicure device BaehrTec S1200 is intended for use in medical foot care sector. It must only be used by trained professionals. Rotating instruments (milling, filing attachments, etc.) are actuated with the BaehrTec S1200. - Page 9 Operating Manual BaehrTec S1200 • Only use high-quality rotating instruments with standardised shaft (diameter 2.35 mm) from the Baehr product range. • Please observe the specific instructions of rotating instruments when using them. Above all, observe the manufacturer's information on maximum speeds, cleaning, disinfection and sterilisation.
-
Page 10: Information On Electromagnetic Compatibility
Operating Manual BaehrTec S1200 2.3.3 Information on electromagnetic compatibility We would like to point out that due to EN 60601-1 on the electromagnetic compatibility of electromedical devices that: • medical, electric devices are subject to particular precautionary measures and so must be operated according to the requirements of these operating instructions. -
Page 11: Safety Notices
Operating Manual BaehrTec S1200 2.3.4 Safety notices The device is not authorised for operation in potentially explosive areas. Before every application, the operator must make sure of the functional safety and proper condition of the device. Improper handling, maintenance and care may lead to premature deterioration and malfunctions. -
Page 12: Before Using The Device For The First Time
When setting up the device, ensure that it is placed on a level base, that it cannot fall down and that the extracted air can escape easily. Please ensure that the BaehrTec S1200 is kept well out of the reach of children. Do not expose the device to direct heat sources (heaters, strong sunlight etc.). - Page 13 Please ensure that the device is positioned so that a disconnection is unlikely at all times. Do not work with the BaehrTec S1200 in rooms that are very humid, such as saunas or swimming complexes. Please take care not to spill any liquids when filling the tank.
- Page 14 Operating Manual BaehrTec S1200 Warning – risk of injury! As shown in the illustration, you should avoid “pulling motions” during your work, as this may cause the instruments to slip out. Please take care not to exert too much pressure when using the instrument (burns on skin).
-
Page 15: Description Of Device

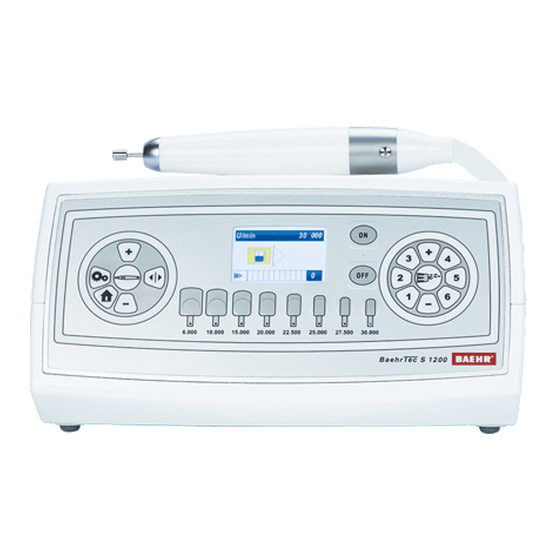

Operating Manual BaehrTec S1200 Description of device Description control device 4.1.1 Front view Fig. 4 (1) Controller housing (2) - (3) Main switch "ON" und "OFF" with respective LED (4) (5) – (12) Push buttons for instrument speeds (6,000 – 30,000 rpm) with respective LEDs (5a) –... -
Page 16: Side View With Handpiece Outlet And Handpiece Holder
Operating Manual BaehrTec S1200 4.1.2 Side view with handpiece outlet and handpiece holder Fig. 5 (29) Handpiece outlet (30) Protection from bending (31) Handpiece hose (32) Handpiece holder Page 16/48 English – V100 – Status 09/2015... -
Page 17: Rear View
Operating Manual BaehrTec S1200 4.1.3 Rear view Fig. 6 When working from the case, we recommend removing the storage tray from the case in order that the heat created by the device can escape from the case and to avoid potential head build-up. -
Page 18: Bottom View
Operating Manual BaehrTec S1200 4.1.4 Bottom view Fig. 7 (37) Housing screws Must only be unfastened by the manufacturer (38) Ventilation holes Please ensure that these ventilation holes are never covered. (39) Housing seal As soon as the housing seal is breached or removed, all guarantee claims shall expire. -
Page 19: Top View With Closed Tank Lid
Operating Manual BaehrTec S1200 4.1.5 Top view with closed tank lid Fig. 8 (41) Tank lid (42) Membrane lid English – V100 – Status 09/2015 Page 19/48... -
Page 20: Top View (Open Tank Lid)
Operating Manual BaehrTec S1200 4.1.6 Top view (open tank lid) Fig. 9 (43) Fine filter (44) Filing level contacts Page 20/48 English – V100 – Status 09/2015... -
Page 21: Tank Lid (Inside)
Operating Manual BaehrTec S1200 4.1.7 Tank lid (inside) Fig. 10 (45) Ventilation holes for ventilation membrane (46) O-ring for tank lid (47) Screws English – V100 – Status 09/2015 Page 21/48... -
Page 22: Description Handpiece
Operating Manual BaehrTec S1200 Description handpiece Fig. 11 (30) Protection from bending (31) Handpiece feed line (48) Handpiece button (49) Handpiece housing (50) Handpiece Fig. 12 (51) Opening for DIN instrument with shank diameter 2.35 mm (for instruments with a max. diameter of 12 mm) Page 22/48 English –... -
Page 23: Description Non-Heating Device Connecting Cable
Operating Manual BaehrTec S1200 Max. instrument diameter no greater than 12 mm Warning: Always observe the maximum permissible instrument diameter and the respective maximum permissible speed of the instrument manufacturer. Please ensure that this is never exceeded since it can result in serious injuries to the patient and the operator. -
Page 24: Description Spray System
Operating Manual BaehrTec S1200 Description spray system When developing the spray systems of the BaehrTec S1200 we placed great importance on operating safety and speed. So we would first like to provide you with an insight into the handling of the spray system. - Page 25 Operating Manual BaehrTec S1200 The spray function is immediately switched on or off if you press the button (20) while the handpiece motor is running. The spray function is immediately switched on or remains switched off if you press the button (20) when you switch on the handpiece motor while the handpiece motor is not running.
-
Page 26: Colour Display
Operating Manual BaehrTec S1200 Colour display The BaehrTec S1200 has two operating modes that are indicated on the display: Work mode Adjustment mode (Options Menu) 4.5.1 Work mode As the name suggests, you can operate and work with your device in “Work mode”. As soon as you turn on your device, you will automatically be in “Work mode”. - Page 27 Service control The BaehrTec S1200 has a servicing interval indicator. The service interval is 905 hours, and refers to the operating hours of the handpiece motor as of the delivery/the last service. You must send your device for servicing when the service key lights up on the display (or within 24 months;...
-
Page 28: Adjustment Mode (Options Menu)
Operating Manual BaehrTec S1200 4.5.2 Adjustment mode (Options Menu) You can change settings and call up information on your device using the "Adjustment mode". As soon as you turn on your device, you will automatically be in “Work mode”. Then, in order to exit work mode and reach the options menu, please press the button (18). -
Page 29: Home Function (Button (17))
The information (meter readings, etc.) will, of course, remain unaffected. Getting started Make sure that there is enough spray solution in your BaehrTec S1200. To check, please remove the tank lid and fill the tank up to just below the tank rim of the liquid tank with an approved spray solution (Baehr spray solution for Baehr spray technology devices, Art-No. - Page 30 Plug the safety plug to (54) in a proper safety outlet. Now switch the BaehrTec S1200 on using the main switch (2). After a short LED check, the LED "Power ON" (4) and the LED for the largest instrument (6,000 rpm.) will light up (5a).
- Page 31 Operating Manual BaehrTec S1200 otherwise the instruments or the handpiece may be damaged. It can also cause injury due to broken instruments. The speed ranges 6,000 and 10,000 rpm for the instruments with 12 mm diameter (abrasive caps/DiaTWISTER) are not designed to be used to remove calluses, but rather to smoothen horny skin (with little pressure).
- Page 32 Operating Manual BaehrTec S1200 Please note that the spray function switches off automatically when the handpiece motor is switched off. You can switch the direction of the handpiece motor to anti-clockwise or clockwise using the push button (16). This is shown on the display when the arrow indicating the direction of rotation points in the other direction.
-
Page 33: Servicing And Care
Never immerse the device in water or any other liquids, as this poses a risk of electric shock. Clean the handpiece daily. Use a small brush or a tooth brush and the Baehr wipes (Art-No. 11000). Take care to only fill the tank with approved spray solutions, otherwise the... -
Page 34: Cleaning And Disinfecting The Fine Filter
Baehr wipes (Art-No. 11000) Cleaning and disinfecting the fine filter The BaehrTec S1200 is equipped with two fine filters (43). Please always ensure that you only fill the tank with spray solution approved for the device (Baehr spray solution for Baehr spray technology devices, Art-No. -
Page 35: Cleaning The Filling Level Contacts In The Liquid Tank
Damage caused by dirt in the spray system is not covered by the warranty. Cleaning the filling level contacts in the liquid tank The BaehrTec S1200 is equipped with an electronic filling level indicator Clean both filling level contacts in the tank when the liquid tank is empty and the filling level indicator on the display still does not light up (see Fig. - Page 36 (see Fig. 19). Now pull out the clamping mechanism cleaner 2 from the opening. Only clean the clamping mechanism cleaner 2 with water, then with Baehr quick surface disinfectant (Art-No. 11015) and then with Baehr Alcohol (Art-No. 11032) to degrease the tool.
-
Page 37: Instrument Changing Aid (Insertion And Removal Aid For Very Small Instruments)
Operating Manual BaehrTec S1200 Fig. 17 Fig. 18 Fig. 19 You can also clean Easy-Clean in the event that cream, fat, oil or the like gets into the clamping mechanism. To do so proceed as follows. Turn off the device at the main switch and disconnect it from the power supply. - Page 38 For hygiene reasons, please clean the instrument changing aid after use under running water and then with Baehr quick surface disinfectant (Art-No. 11015). The images are for illustrative purposes only. Subject to technical and optical changes.
- Page 39 Operating Manual BaehrTec S1200 Hold the instrument changing aid horizontally to the handpiece. Fig. 23 Position the instrument head behind the notch on the instrument changing aid. Place your thumb over the notch on the instrument changing aid, so that the instrument does not drop when removing.
-
Page 40: Cleaning And Disinfection Recommendation
Operating Manual BaehrTec S1200 Cleaning and disinfection recommendation When What With what (recommendation) 1x per week Cleaning and Fill liquid tank Baehr liquid disinfection of liquid completely with concentrate for and after tank and the liquid disinfecting agent. surface disinfection... -
Page 41: Guarantee
Operating Manual BaehrTec S1200 Guarantee The guarantee shall last 24 months. We do not accept any liability for defects and their consequences caused by natural wear, improper cleaning, care or servicing, nonobservance of operating instructions, servicing, or connection, soiling in the spray supply, uncommon or inadmissible chemical or electrical influences insofar as the supplier is not responsible for them. -
Page 42: Self-Help In The Event Of Malfunctions
Operating Manual BaehrTec S1200 5.10 Self-help in the event of malfunctions Fault Cause Solution • • Main switch off Turn on main switch • • Control device not Connect device to power connected to power supply supply • • Connecting outlet without... - Page 43 Operating Manual BaehrTec S1200 Fault Cause Solution • • Instruments Maximum permitted speed Only work with the do not for instrument in use is maximum permissible hold exceeded speed for the instruments used • • Instrument shaft worn Check the instrument shaft...
-
Page 44: Change Fuse
Operating Manual BaehrTec S1200 5.10.1 Change fuse The fine fuses protect your device from damage caused by two high currents. Attention only there fuses may be used with the device S1200: 2x fine fuses 2A inert (Typ H) Switch off your device at the main switch and disconnect the device from the mains. Use a screwdriver to open the fuse compartment on the device socket. -
Page 45: Technical Data
Operating Manual BaehrTec S1200 Technical Data BaehrTec S1200 Medical device Class 2A according to EU Directive 93/42 Medical devices EMC test Under EN 60601-1 Operating voltage 110 – 240 V AC voltage Frequency 50 – 60 Hz Micromotor speed range 6,000 –... - Page 46 Operating Manual BaehrTec S1200 Guidelines and MANUFACTURER statement – ELECTROMAGNETIC EMISSION The model BaehrTec S1200 is intended for use in the ELECTROMAGNETIC ENVIRONMENTS specified below. The customer or N11) user of the model BaehrTec S1200 should ensure that it is used in such an environment.
- Page 47 AM and FM radio and television channels cannot be theoretically determined precisely beforehand. In order ascertain the ELECTROMAGNETIC ENVIRONMENT as a result of stationary HF transmitters, an investigation of the location is recommended. If the determined field strength at the location of the model BaehrTec S1200 exceeds the CONFORMANCE LEVEL...
-
Page 48: Spare Parts/Accessories
Recommended protective distances between portable and mobile HF communication devices and the model BaehrTec S1200 The model BaehrTec S1200 is intended for use in an ELECTROMAGNETIC ENVIRONMENT, in which the emitted HF- disturbances are controlled. The customer or the user of the model BaehrTec S1200 can help prevent, electromagnetic...
