Monoprice 13815 User Manual

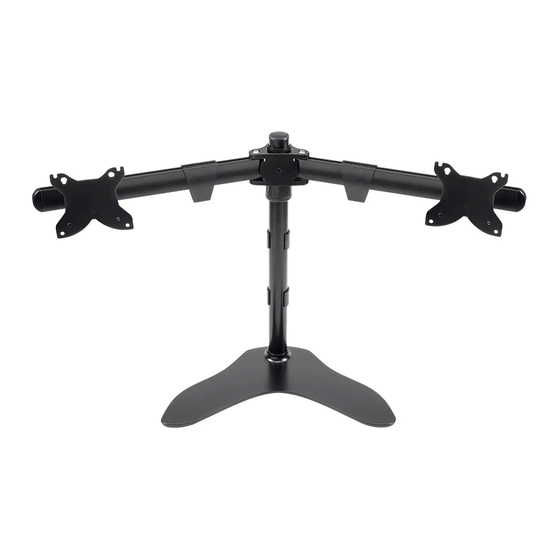

Aluminium dual monitor desk stand 15'' - 30''
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Aluminum Dual Monitor Desk Stand 15" - 30"
P/N: 13815
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13815 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 13815

Summary of Contents for Monoprice 13815

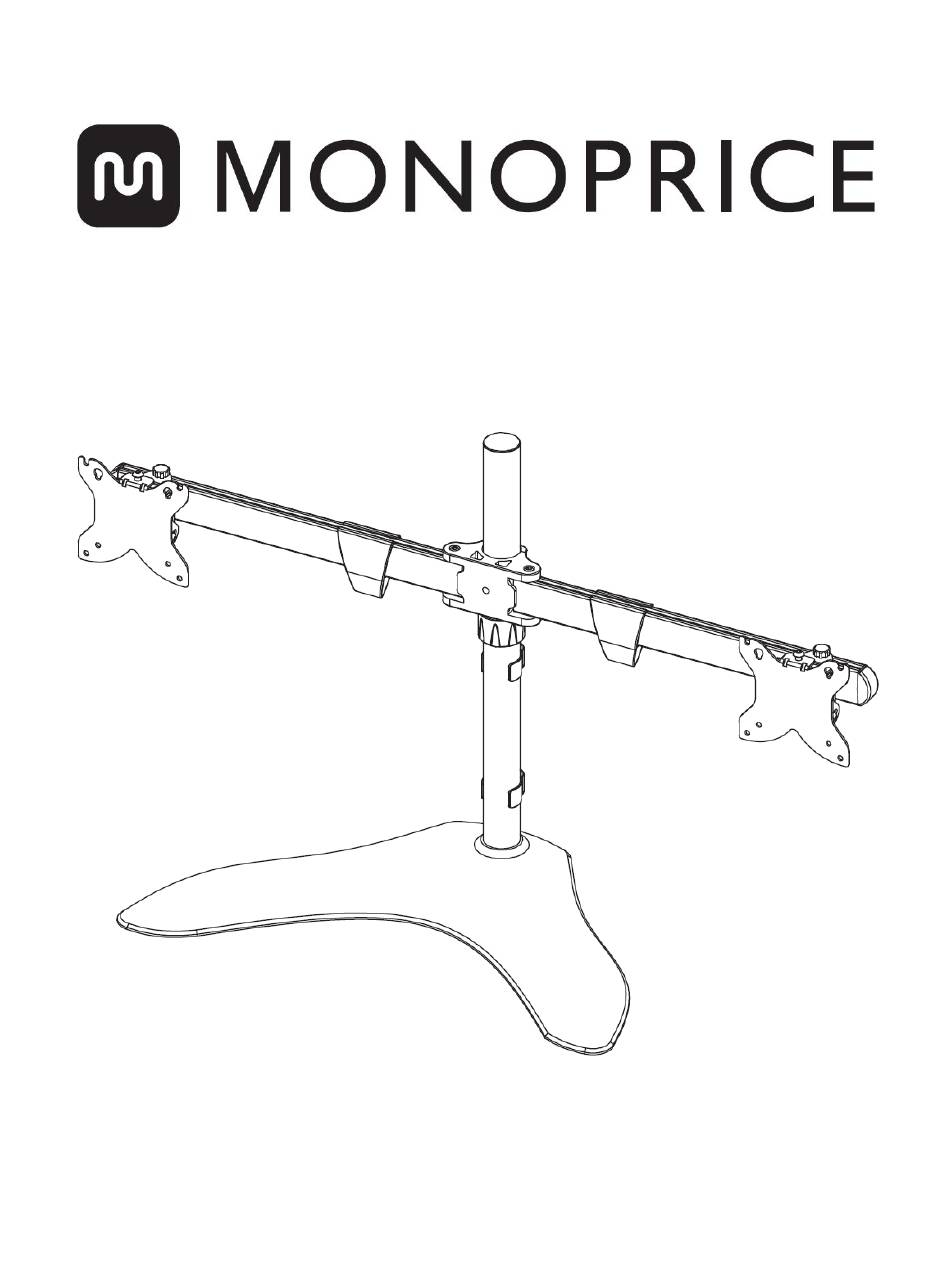

  • Page 1 Aluminum Dual Monitor Desk Stand 15" - 30" P/N: 13815 User's Manual...
  • Page 2 If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 3 PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. Arm Assembly Base Pole Assembly ø8.0 x ø5.5 x 5.0 mm Bushings (x8)
  • Page 4 INSTALLATION 1. Place the Base (B) on a desk or table. 2. Insert the Pole Assembly (C) into the hole in the base, then turn it clockwise to tighten the connection. 3. Place the Arm Assembly (A) onto the Pole Assembly (C), adjust the height as desired, then use the 4mm Hex Wrench (G) to tighten the screw as shown in the following figure to the right.
  • Page 5 6. Repeat steps 4 and 5 for the second monitor. 7. Place one of the monitors onto a mounting bracket by placing the extended screws into the grooves on the bracket. 8. Insert two (2) additional Short M4x12 Screws (E) or Long M4x12 Screws (F) through the bracket into the lower VESA®...
  • Page 6 10. Loosen the two thumbscrews that hold each bracket to the mounting arm, then slide the monitor and bracket assemblies so that the monitor bezels are almost touching at the center of the desk mount assembly, as shown in the figure to the right.
  • Page 7 12. To adjust the tilt, first use the included 5mm Hex Wrench (H) to slightly loosen the two screws on each side of the mounting bracket, adjust the tilt as desired, then tighten the screws to secure the bracket in place. 13.
  • Page 8 TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
