Allow Employees to Respond to Paging

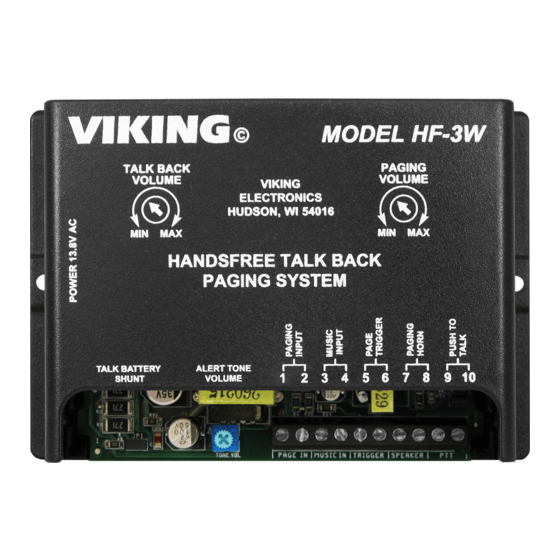

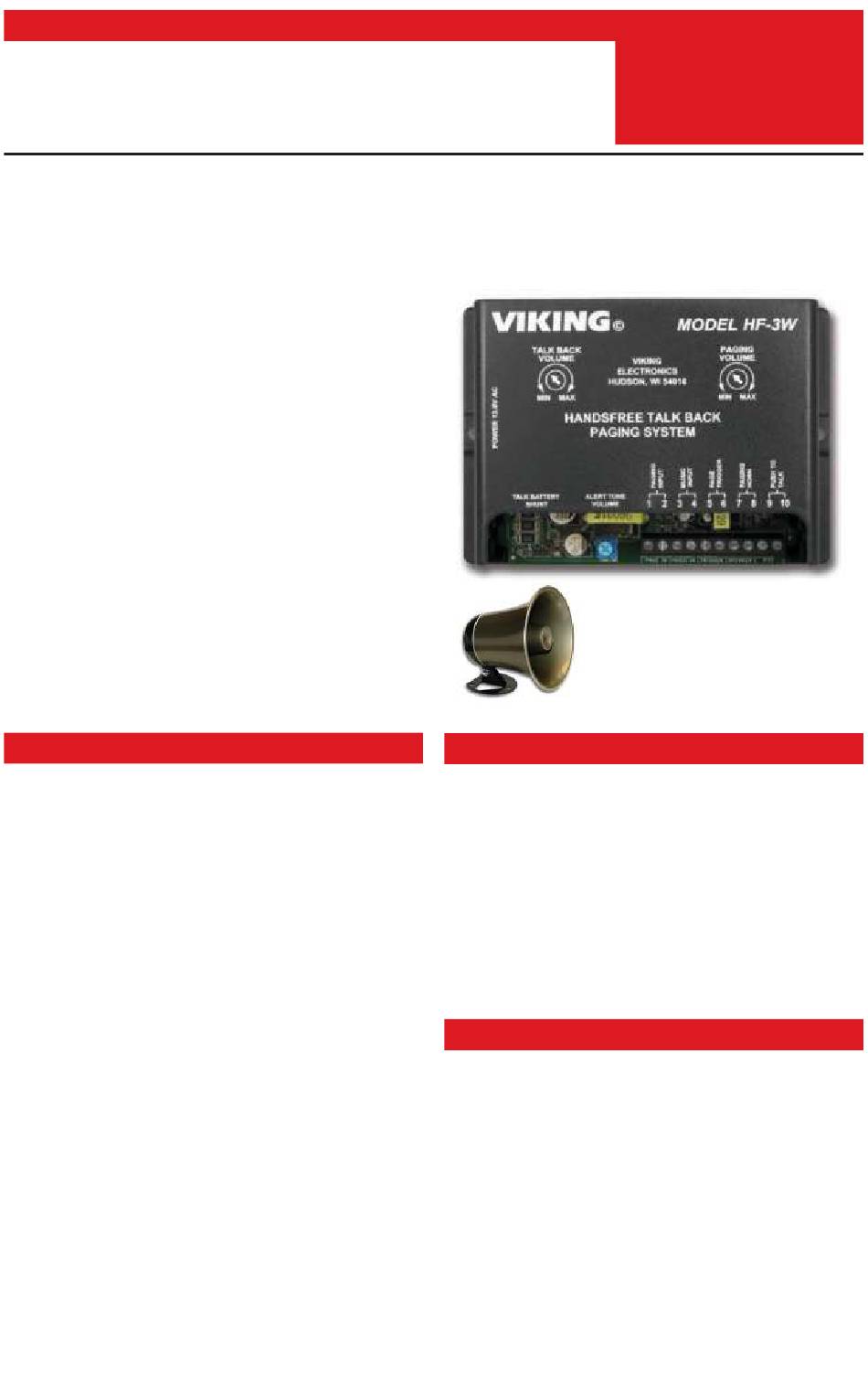

The HF-3W handsfree paging unit allows
employees to respond to a paging message
without reaching for the telephone. It is perfect for
use in city desks, shipping and service applications
where quick answers are needed.
The HF-3W generates its own talk battery and will
interface with unused trunk ports on PABX's and
key systems, and single line phones, as well as
some telephone systems with a two-way paging
port and a contact closure.
Simply page the intended employee with a
question and they can respond by speaking toward
the paging horn.
Paging and talk-back volume sensitivity controls
are provided.
Features
• Improved audio circuitry including
automatic gain control for talk-back audio
• Alert tone
• Selectable "Push-to-Talk" feature for noisy
environments
• 28V DC talk battery
• 3 watts of paging power
• Compatible with some two-way paging ports
• Background music input
• May be integrated into existing paging system
• One 25AE paging horn included
• 25-50 ft talk-back range
• Optional 300AE Paging Horn may be used
www.VikingElectronics.com
Information: 715-386-8861
PRODUCT MANUAL
Messages, Handsfree!
Applications
• City desks
• Shipping docks
• Manufacturing plants
• Service desks
• Warehouses
• Schools
• Parts departments
Specifications
Power:
120V AC/13.8V AC 1.25A, UL listed
adapter provided
Dimensions: 5.25" x 3.5" x 1.75" (133mm x
89mm x 44mm)
Shipping Weight: 3 lbs. (1.36 kg)
Environmental: 32°F to 90°F (0°C to 32°C) with
5% to 95% non- condensing humidity
Talk Battery: 28V DC
Speaker: (1) 25AE 8 ohm 12 watt horn included,
(2) maximum
Maximum Speaker Run: 8 m (25 ft) maximum,
18 AWG
Amplifier: 3 watt output power
Connections: 10 pin screw terminal strip
HF-3W
Handsfree Talkback
Amplifier
May 28, 2019
One Viking model
25AE Paging Horn included
