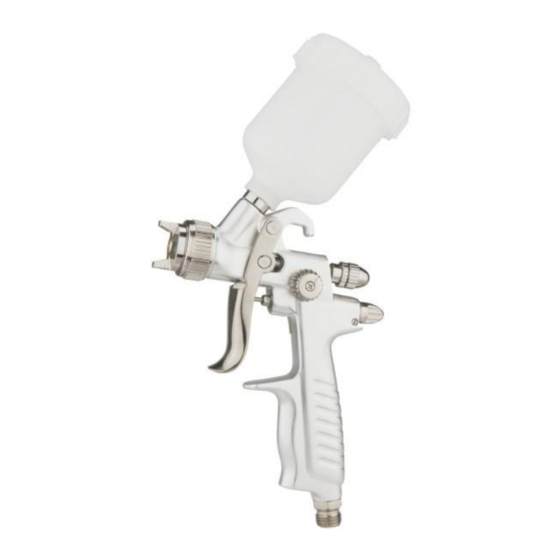

Top Grade Air Powered Spray Gun
803
Model No.:R
INSTRUCTION MANUAL
1
IMPORTANT:
Read this Instruction Manual carefully and understand it completely,
basic precaution should be strictly followed to prevent the damage to
the tool and injury to the operator. Retain this manual for further
reference. And you should pay more attention to the Technical Data.
2018
Advertisement
Related Manuals for Rongpeng R803
Summary of Contents for Rongpeng R803
- Page 1 Top Grade Air Powered Spray Gun Model No.:R INSTRUCTION MANUAL IMPORTANT: Read this Instruction Manual carefully and understand it completely, basic precaution should be strictly followed to prevent the damage to the tool and injury to the operator. Retain this manual for further reference.
-
Page 2: Technical Data
QUICK START GUIDE Description Technical Data Important Safety Instruction Instructions for Operation Maintenance/Storing Troubleshooting/Repairs Parts List ※ Description Aluminum forged gun body with precise machined air cap set. Stainless steel needle and nozzle accommodate a variety of coating. ... - Page 3 3. Fluid and solvent can be highly flammable or combustible. Use in well-ventilated spray booth and avoid any ignition sources, such as smoking, open flames and decrial hazard. (see fig 3) 4.Disconnect tool from air supply hose before doing tool maintenance and during non-operation, for emerge stop and prevention of unintended operation, a ball valve near the gun to air supply is recommend.
- Page 4 ※ Adjustment The desired pattern, volume of fluid output and fine atomization can easily be obtained by regulating the Pattern Adjusting Knob, Fluid Adjusting Knob and Air Adjusting Knob. ① Adjusting pattern: Turning Pattern Adjusting Knob to the right until tight will make spray pattern round, or turning it left, will make spray pattern ellipse.
- Page 5 No spray 2. Fluid control is not properly opened. 2. Open the fluid control. 3. Fluid is too thick or heavy. 2. Thin the fluid or change to pressure feed system. Note: For further repair information, please send to: rongpeng@rongpeng.com.
-
Page 6: Exploded View And Parts List
※ Exploded view & Parts list Description Qty. Description Qty. Description Qty. Retainer Washer Pattern Adj. Set Pressure Adj. sealing Ring Round nut Pattern Adj. washer Pressure Adj. Knob Retainer Seal ring Pattern Adj. Knob Fluid Adj. knob Atomization body Cross recess head Fluid Adj.
