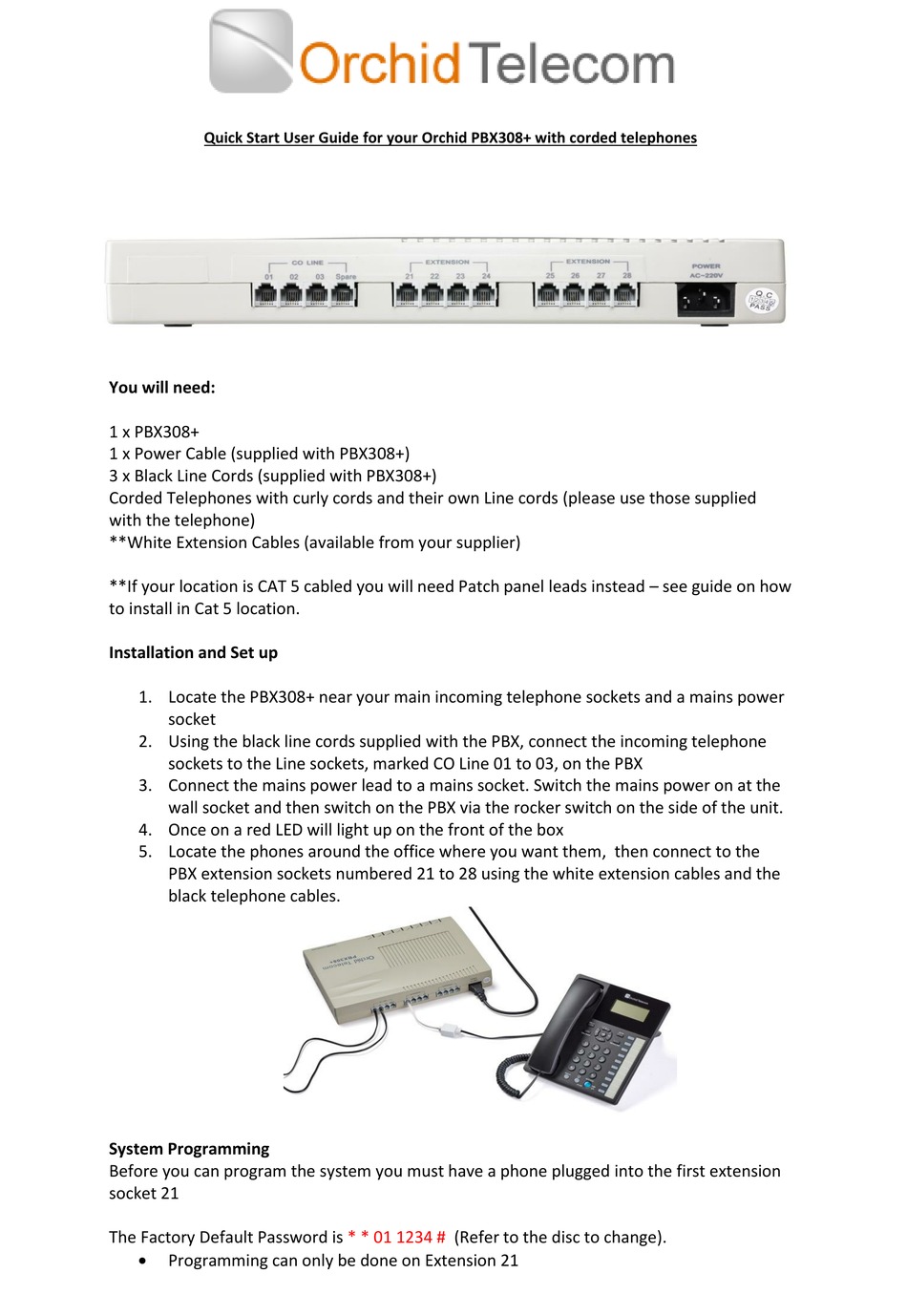

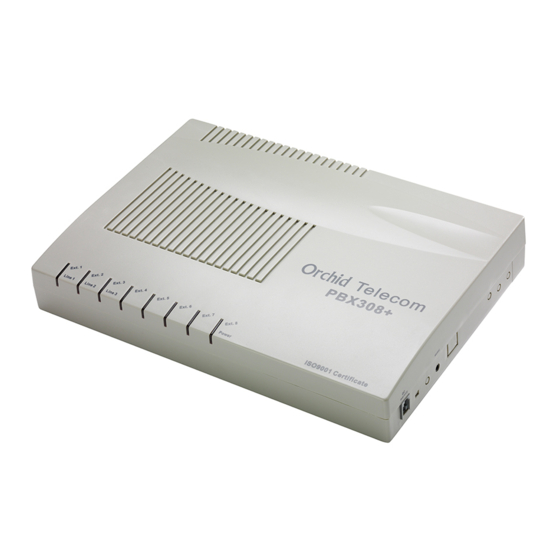

Orchid Telecom PBX308+ Quick Start User Manual

Quick Start User Guide for your Orchid PBX308+ with corded telephones

You will need:

1 x PBX308+
1 x Power Cable (supplied with PBX308+)
3 x Black Line Cords (supplied with PBX308+)
Corded Telephones with curly cords and their own Line cords (please use those supplied
with the telephone)
**White Extension Cables (available from your supplier)
**If your location is CAT 5 cabled you will need Patch panel leads instead – see guide on how
to install in Cat 5 location.

Installation and Set up

1. Locate the PBX308+ near your main incoming telephone sockets and a mains power
socket
2. Using the black line cords supplied with the PBX, connect the incoming telephone
sockets to the Line sockets, marked CO Line 01 to 03, on the PBX
3. Connect the mains power lead to a mains socket. Switch the mains power on at the
wall socket and then switch on the PBX via the rocker switch on the side of the unit.
4. Once on a red LED will light up on the front of the box
5. Locate the phones around the office where you want them, then connect to the
PBX extension sockets numbered 21 to 28 using the white extension cables and the
black telephone cables.

System Programming

Before you can program the system you must have a phone plugged into the first extension
socket 21
The Factory Default Password is

Programming can only be done on Extension 21
* * 01 1234 # (Refer to the disc to change).
