Orchid Telecom PBX207 Quick Start User Manual

Your system comes with the following:
2 x Black Line cords
1 x Power cable
4 x Telephones
6 x White extension cables

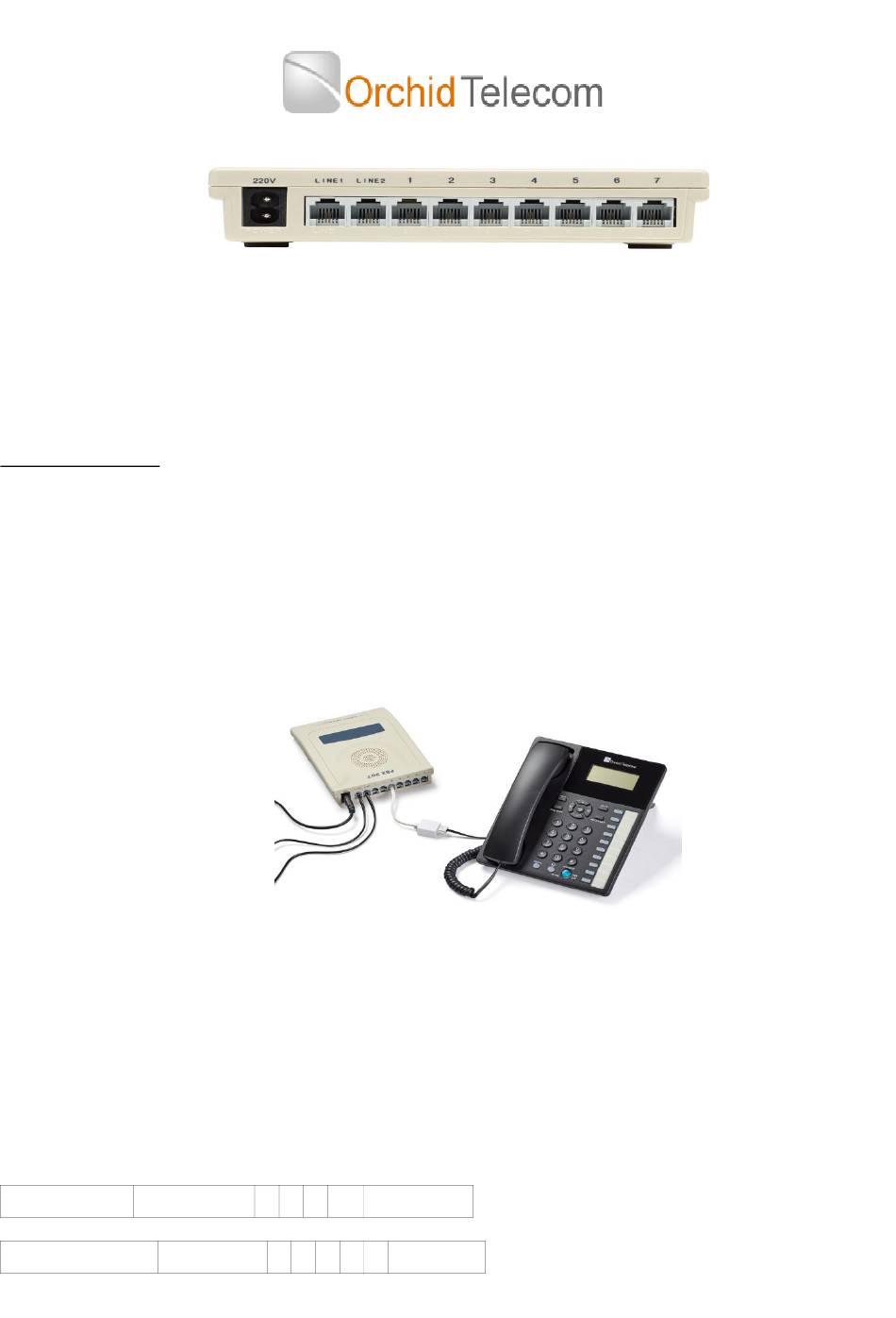

Installation & Set up
1. Locate your PBX 207 near your main incoming Telephone sockets and a mains power socket
2. Connect the telephone socket(s) to the line socket(s) using the black line cords
3. Connect the mains power supply using the black power lead. Turn the power on at the mains and check that
a red led light comes on through the speaker grill on the PBX207. Please ensure the lead is pushed firmly into
the 220v socket.
4. Locate the phones around the office where you want them and connect to the Extension sockets, numbered
1 to 7, (101 to 107) using the white extension cables. Once connected make sure you get dial tone when you
lift the receiver.

System programming

All programming is done on Extension 101 only.
Note: After programming a line successfully you will hear a single Beep after you enter the #, if you make a mistake
you will hear a series of Beeps
System password
The factory default password is:
Every time you successfully enter the password you will a single Beep. If you make a mistake you will hear a series of
Beeps

Exchange line set up

The PBX 207 is configured at the factory for 2 Exchange Lines to be connected. If you only have 1 line connected it is
important that the system is set-up as follows:
One Exchange Line connected
Ext 101 Dial: Password
Two Exchange Lines connected
Ext 101 Dial: Password
Quick Start User guide for the PBX207
* * 0 1 (1234) #
* 3 1 # Hang up
* 3 1 2 # Hang up
