Larson Electronics EPF-SM-30-100-EPP Instruction Manual

8723 CFM - 30" - Pedestal Mount - 100' Cord - C1D1

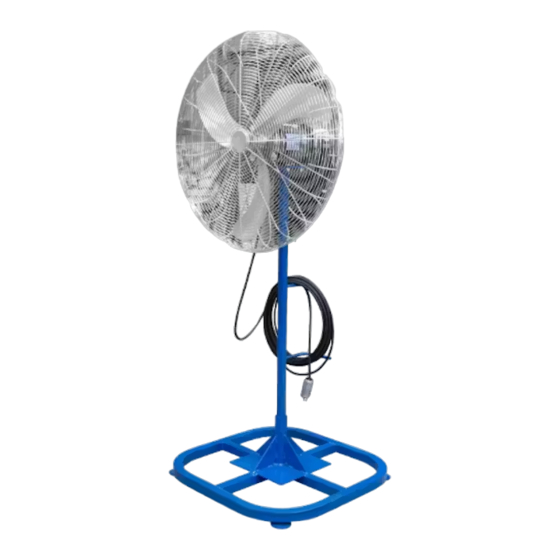

Thank you for your purchase of the Larson Electronics EPF-SM-30-100-EPP explosion proof fan on stand.
This fan is completely assembled, tested and ready for installation when shipped from the factory. Please
follow the steps below in order to operate and maintain this product.
IMPORTANT
READ CAREFULLY BEFORE OPERATING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE EPF-SM-30 MUST BE OPERATED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND
ALL APPLICABLE LOCAL CODES.
FOR PERSONAL SAFETY, ALWAYS CONFIRM THE RATING OF ANY KNOWN HAZARDOUS OR POTENTIALLY
HAZARDOUS LOCATION WHERE THE FAN IS TO BE USED.
WARNING:
TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE SUPPLY CIRCUIT SHOULD BE
DISCONNECTED WHEN INSTALLING OR PERFORMING ANY MAINTENANCE ON THIS UNIT.
WARNING:
WHEN INSTALLING FAN IN HAZARDOUS LOCATIONS, CHECK THE OPERATING TEMPERATURE
LIMITS PRIOR TO INSTALLATION TO BE SURE IT CONFIRMS TO THE ENVIRONMENTAL TEMPERATURE
RESTRICTIONS AND NEC CLASSIFICATIONS. CHECK THE NAMEPLATE FOR TEMPERATURE (T) RATINGS.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT US ANY SOLID-STATE SPEED
CONTROL DEVICE WITH THESE FANS.
WARNING:
OPERATE FAN ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT.
WARNING:
SUBSTITUTE COMPONENTS MAY IMPAIR EXPLOSION PROOF SAFETY.
WARNING:
BEFORE SERVICING OR CLEANING THE UNIT, SWITCH THE POWER OFF AT THE SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
•
USING THIS PRODUCT FOR ANY OTHER PURPOSE THAN IT WAS INTENDED, OR NOT WITHIN THE
OPERATING SPECIFICATIONS IN THIS MANUAL WILL VOID THE WARRANTY AND MAY CAUSE DAMAGE TO
THE FAN OR SERIOUS INJURY TO PERSONNEL.
•
DO NOT EXPOSE FAN TO WATER OR RAIN.
OPERATION
Place fan in a location as close to level as possible. Ensure the fan has no chance
of tipping over easily and will not come into contact with water.
There is a single hand screw toward the base which allows the fan to be rotated
360°. Simply loosen the hand screw, rotate, and tighten hand screw once desired
angle is achieved. This also frees the top pole from its base and will allow fan and
pole to come out of base. Ensure this remains tight before transporting.
CAUTION: Ensure hand screw is tight before transporting fan!
Use the cord wrap on stand for neatly storing cord when not in use.
WIRING
CAUTION:
ALL ELECTRICAL WORK SHOULD BE PERFORMED BY A QUALIFIED ELECTRICIAN AND
MEET ALL NATIONAL, STATE, AND LOCAL CODES.
Be sure the voltage and cycles shown on the motor nameplate correspond to the power supply. Check product
nameplate for Ratings and Approvals. This fan is rated for single phase 115V or 208-230V AC.
Larson Electronics, LLC

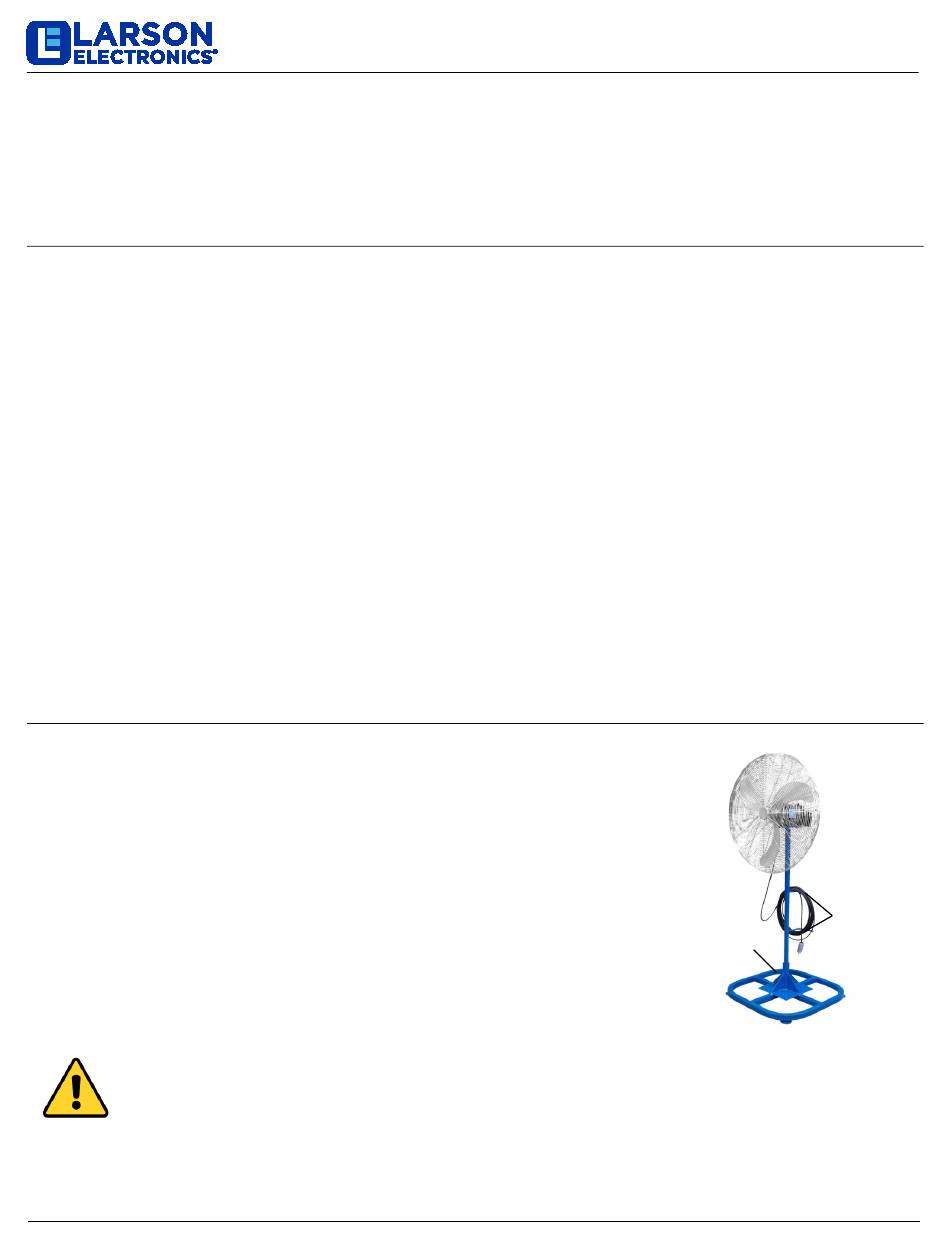

30" Electric Explosion Proof Fan on 4' Stand
Instruction Guide
Phone: (800) 369-6671 Fax: (903) 498-3364
EPF-SM-30-100-EPP
HAND SCREW
PEDESTAL STAND
www.larsonelectronics.com
CORD WRAP
1 of 3
