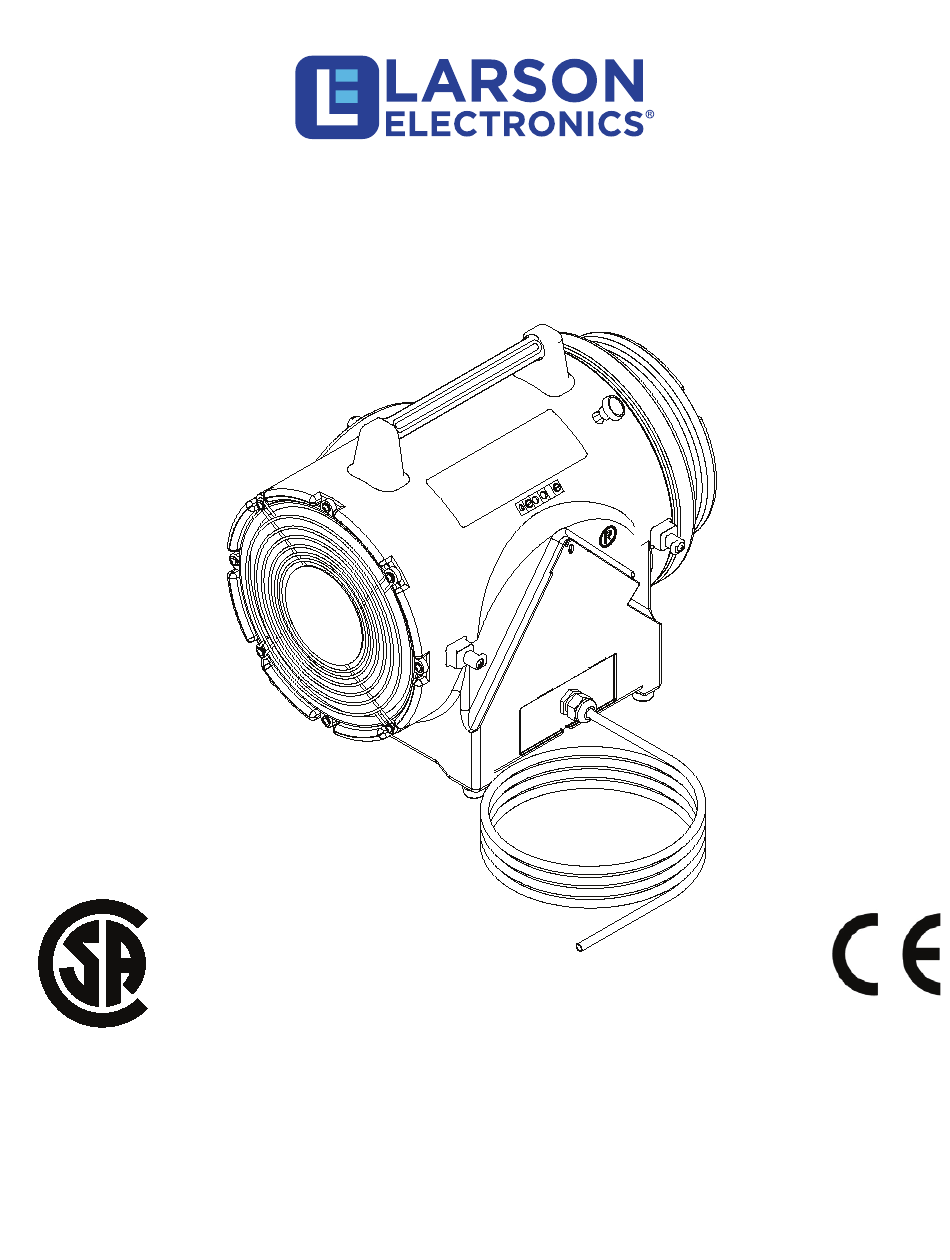

- Page 1 OPERATING MANUAL MODELS: EPF-10P.3 SERIES ® LARSON ELECTRONICS, LLC. 9419 US-HWY 175, Kemp, Tx, 75143 Telephone (903) 498-3363 Toll Free (800) 369-6671 Fax No. (903) 498-3364 http://www.larsonelectronics.com e-mail: sales@larsonelectronics.com...
- Page 2 STEP 6) Turn on blower or fan Warning: For explosive environments, follow ANSI/API 2015 and 2016 procedures WARNING: HAZARDOUS LOCATION OPERATIONS Use an explosion-proof or intrinsically safe blower or fan, Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2 of 5...
-
Page 3: Safety Precautions
Class 1 & 2, Group C,D,E,F,G Outlet Size 8” Diameter (203 mm) Free Air: 974 CFM Flow Rates 25 ft. of Duct with one 90° bend: 786 CFM Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 3 of 5... -
Page 4: Setup And Operation
Circuit breaker trips Voltage output insuffi cient Test outlet with volt meter. Extension cord in use Eliminate extension cord and restart overload in motor trips Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 4 of 5... - Page 5 EXPLOSION PROOF MOTOR WITH 25 FT. SJOOW CORD (NO PLUG) MOTOR SUPPORT BRACKET RUBBER FOOT GROUND LUG RED POWDER-COATED STEEL HOUSING STRAIN RELIEF 10-24 X 3-1/2” LONG THREADED STUD ON/OFF SWITCH KNOB FAN BLADE LOCK NUT Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 5 of 5...
