TKB_TZ67-E

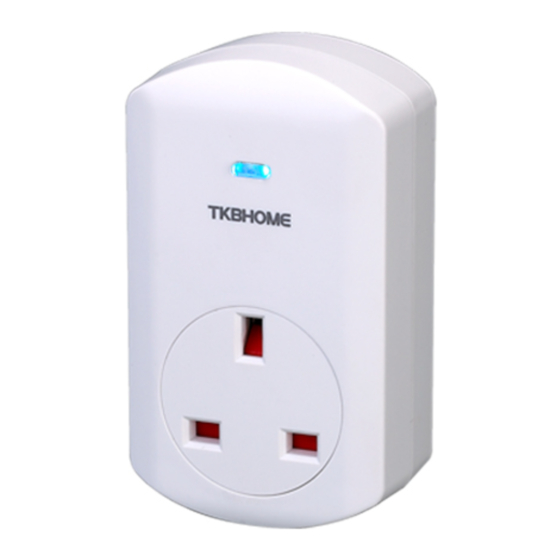

Z-Wave Wall Plug Dimmer
British Standard
Firmware Version : 1.4
Quick Start
A
This is a Z-Wave actuator. Inclusion and Exklusion are confirmed by hitting the button one time.
Please refer to the chapters below for detailed information about all aspects of the products usage.
What is Z-Wave?
This device is equipped with wireless communication complying to the Z-Wave standard. Z-Wave is the
international standard for wireless communication in smart homes and buildings. It is using the
frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed
(two-way communication) and every mains powered node can act as a repeater for other nodes (meshed
network) in case the receiver is not in direct wireless range of the transmitter.
Z-Wave differentiates between Controllers and Slaves. Slaves are either sensors (S) transmitting metered or
measured data or actuators (A) capable to execute an action. Controllers are either static mains powered
controllers (C) also referred to as gateways or mobile battery operated remote controls (R). This results in a
number of possible communication patterns within a Z-Wave network that are partly or completely supported
by a specific device.
1. Controllers control actuators
2. Actuators report change of status back to controller
3. Sensors report change of status of measured values to controller
4. Sensors directly control actuators
5. Actuators control other actuators
Advertisement
Table of Contents
Related Manuals for TKB Home TZ67-E
Summary of Contents for TKB Home TZ67-E

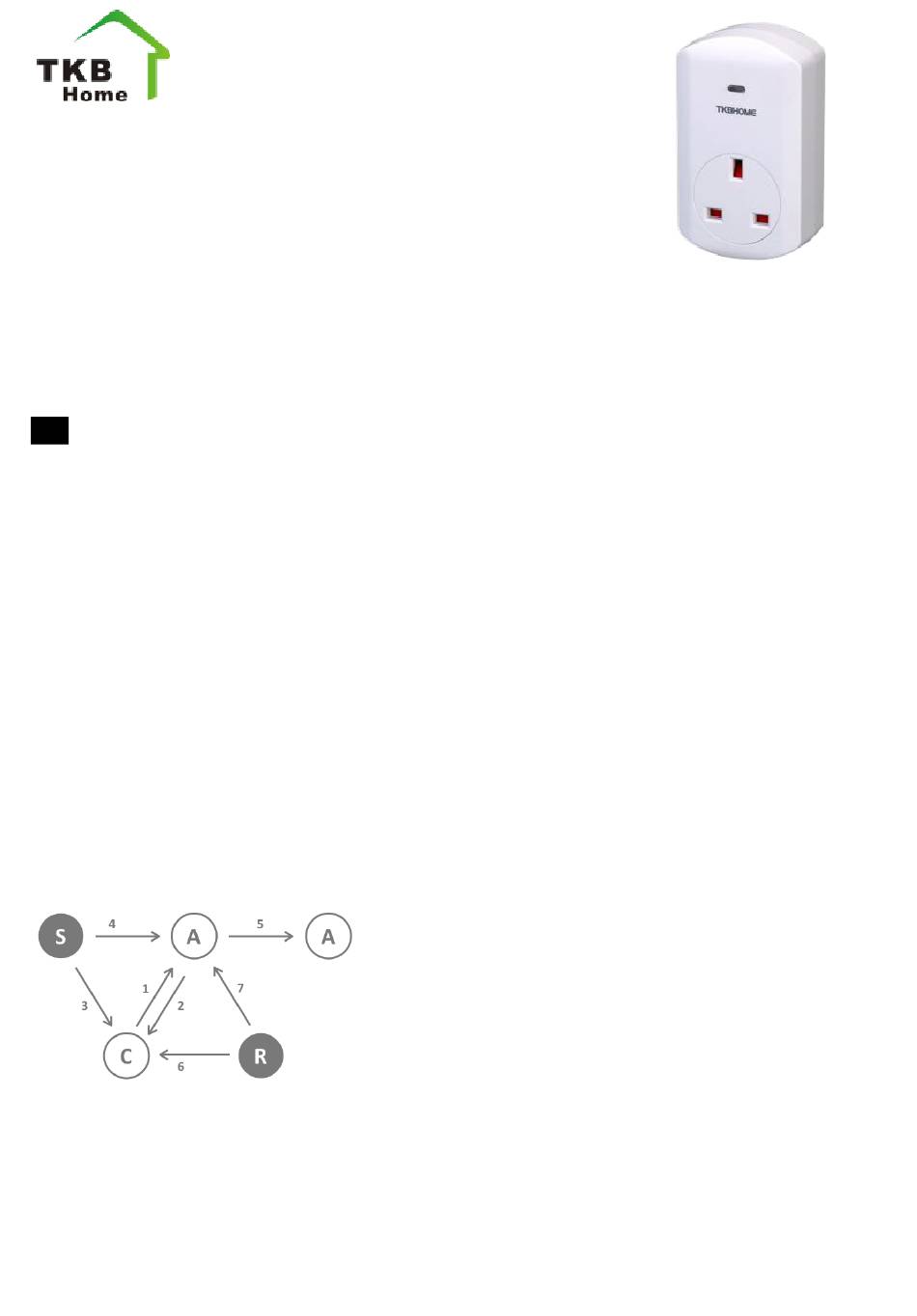

- Page 1 TKB_TZ67-E Z-Wave Wall Plug Dimmer British Standard Firmware Version : 1.4 Quick Start This is a Z-Wave actuator. Inclusion and Exklusion are confirmed by hitting the button one time. Please refer to the chapters below for detailed information about all aspects of the products usage. What is Z-Wave? This device is equipped with wireless communication complying to the Z-Wave standard.
- Page 2 6. Remote controls send signals to static controllers to trigger scenes or other actions 7. Remote controls control other actuators. There are two different role a controller can have. There is always one single primary controller that is managing the network and including/excluding devices.
- Page 3 mode. Please refer to your primary controllers manual on how to turn your controller into inclusion or exclusion mode. Only if the primary controller is in inclusion or exclusion mode, this device can join or leave the network. Leaving the network - i.e. being excluded - sets the device back to factory default. If the device already belongs to a network, follow the exclusion process before including it in your network.
- Page 4 Command Classes Supported Command Classes Basic (version 1) Binary Switch (version 1) Version (version 1) All Switch (version 1) Configuration (version 1) Manufacturer Specific (version 1) Technical Data Power Supply 230V ~50-60 Hz Attachable Loads resistive loads up to 300 W IP Rating Explorer Frame Support Yes 4.54.00...
- Page 5 Node Information Frame — is a special wireless message issued by a Z_Wave device to announce its capabilities and functions. Disposal Guidelines The product does not contain hazardous chemicals. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available.
