TZ68

ON/OFF MODULE

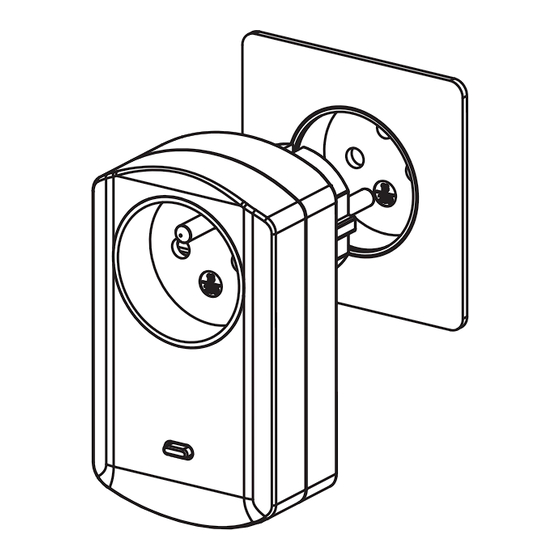

This plug-in ON/OFF Module in a transceiver which is a Z-Wave enabled device

and is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices

displaying the Z-Wave logo can also be used with it regardless of the manufacturer,

and ours can also be used in other manufacturer's Z-Wave enabled networks. Remote

on/off control of the connected load is possible with other manufacturer's Wireless

Controller. Each module is designed to act as a repeater. Repeaters will re-transmit

the RF signal to ensure that the signal is received by its intended destination by

routing the signal around obstacles and radio dead spots.

Adding to Z-Wave Network

In the front casing, there is an ON/OFF knob which is used to carry out inclusion,

exclusion or association. Put a Z-wave Wireless Controller into inclusion/exclusion

mode, press the knob on the Module to complete the inclusion/exclusion process.

On/off knob

LED indicator

1.Plug this ON/OFF Module into a wall outlet near the load to be controlled.

2.Plug the load in to the Module. Make sure the load to be controlled cannot exceed

2990/3500 watts.

3.Turn the knob or switch on the load to the ON position

Table of Contents

Do you have a question about the TZ68 and is the answer not in the manual?

Page 1 TZ68 ON/OFF MODULE This plug-in ON/OFF Module in a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer's Z-Wave enabled networks.
Page 2 4.To manually turn ON the ON/OFF Module, press and release the ON/OFF knob. Socket Type Since the socket type for each country in Europe varies, refer to the outline for each socket The blue indicator LED will turn on , and the load plugged into the module will also suited for each country as follows: turn ON.
