Summary of Contents for XAC PINPAD 8006L1-1CRA Series

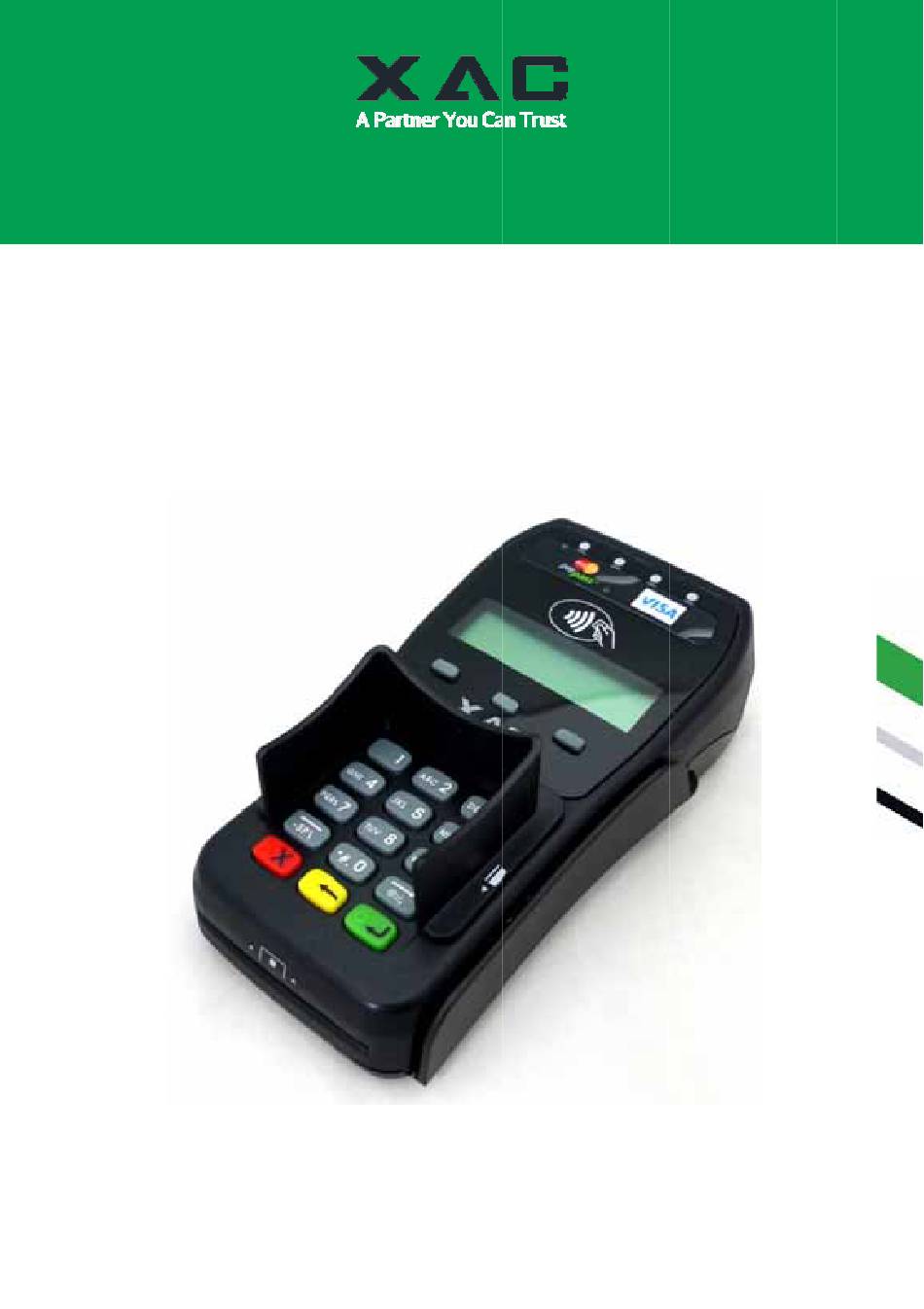

- Page 1 PINPAD D 8006L1-1 1CRA RIES TALLATIO UIDE ...
- Page 2 1. C 8006L1-1CRA PIN PAD ONNECTING THE The 8006L1-1CRA device can be used to connect with PC/ terminal. It supports RS232, USB interfaces via different cable types such as DB9 (Figure 1) and standard USB (Figure 2) connector. Input voltage/current: 5V/500mA for 8006L1-1CRA USB or 12V/500mA for 8006L1-1CRA DB9 AC adapter for DB9: HON-KWANG ELECTRIC Co.,LTD HK-AX-120A200-EU Input: 100-240Vac/0.8A, 50/60Hz.
- Page 3 3. U PIN P SING THE Press numeral key to enter password if needed. Then press green [ENTER] key to finish password key-in. Press red [CANCEL] key to exit from presently status (Figure 7). Note: If the PIN is entered incorrectly, press [CANCEL] and re-enter it. Figure 7 4.
- Page 4 distributed or reproduced without permission of XAC Automation Corporation. XAC AUTOMATION CORP. shall not be held liable for technical and editorial omissions or errors made herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of his material.
