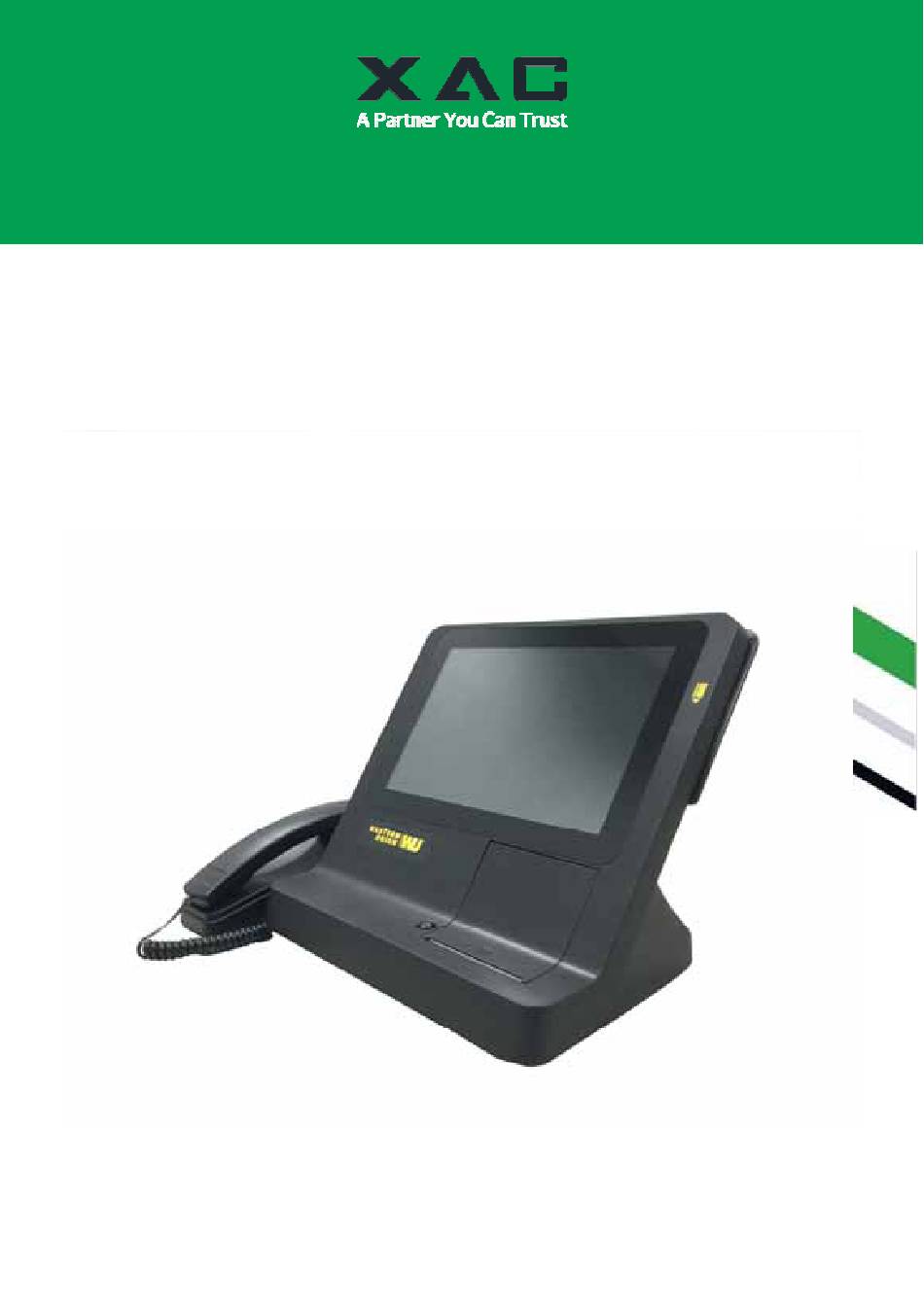

- Page 1 94m POS T ECURE LOUD ERMINAL NSTALLATION UIDE MODEL: xCE-200WU-UH xCE-200WU-U ...
-
Page 2: Before Starting
1. Before Starting Open the cable compartment cover behind the terminal (Figure 1) and find the power input on the rear side of the terminal (Figure 2). Connect the plug from the power adapter into the power input. (Figure 1) (Figure 2) ■... - Page 3 This terminal supports the following ports (Figure 3) 1 - 4 x USB ports 2 - 1 x Ethernet port 3 - 1 x RS232 Port 4 - 1 x micro SD card slot Note: Ensure that the micro SD card is inserted as the orientation of the icon ( ) into micro SD card socket as in (Figure 3-1).
- Page 4 Optional wireless communication – E200WU terminal also supports a variety of wireless communications to host machine including Wi-Fi, Bluetooth and optional 3G communication. For xCE-200WU-UH model with voice communication options (Figure 3): 6 - 1 x Landline port (Figure 3-3) ...
-
Page 5: Loading Paper
(Figure 3-3) A (Figure 3-4) 2. Powering On Terminal Plug the power cord into the power jack and plug the power adapter into a surge suppressor (recommended) and the device will boot up 3. Loading Paper 1.Press the button on the left of the printer to open the paper cover (Figure4). (Figure 4) ... - Page 6 2. Place a roll of thermal paper into the printer. Note: Thermal sensitive side of the paper roll should be facing the user as the Figure5. (Figure 5) 3. Pull some paper out so that a small portion of paper is outside the printer compartment, then close the printer cover firmly.
- Page 7 5. Guidelines to properly CLEAN your LCD screens Turn your display off and allow it to cool. Make sure your cloth is clean and free of any grit before starting. Spray a liberal amount of the cleaning solution onto one portion of the cloth Using light pressure, wipe the screen to evenly distribute the solution on the screen.
- Page 8 & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC REQUIREMENTS(only for xCE-200WU-UH) This equipment complies with Part 68 of FCC Rules. On the base unit of this equipment is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment.
- Page 9 See installation instructions for details. Warning: If the device, xCE-200WU-UH, is used without the detachable privacy shield, the following criteria needs to be met by the Installed Environment of the device for complying with the PCI privacy screen design requirement: A.
- Page 10 XAC Automation Corporation. XAC AUTOMATION CORP. shall not be held liable for technical and editorial omissions or errors made herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of his material.
