3"- Spin Klin Angle Apollo Battery
Service & Maintenance
Manual
2

Advertisement

Table of Contents
loading

Related Manuals for Arkal Spin Klin Angle Apollo 3"

Summary of Contents for Arkal Spin Klin Angle Apollo 3"

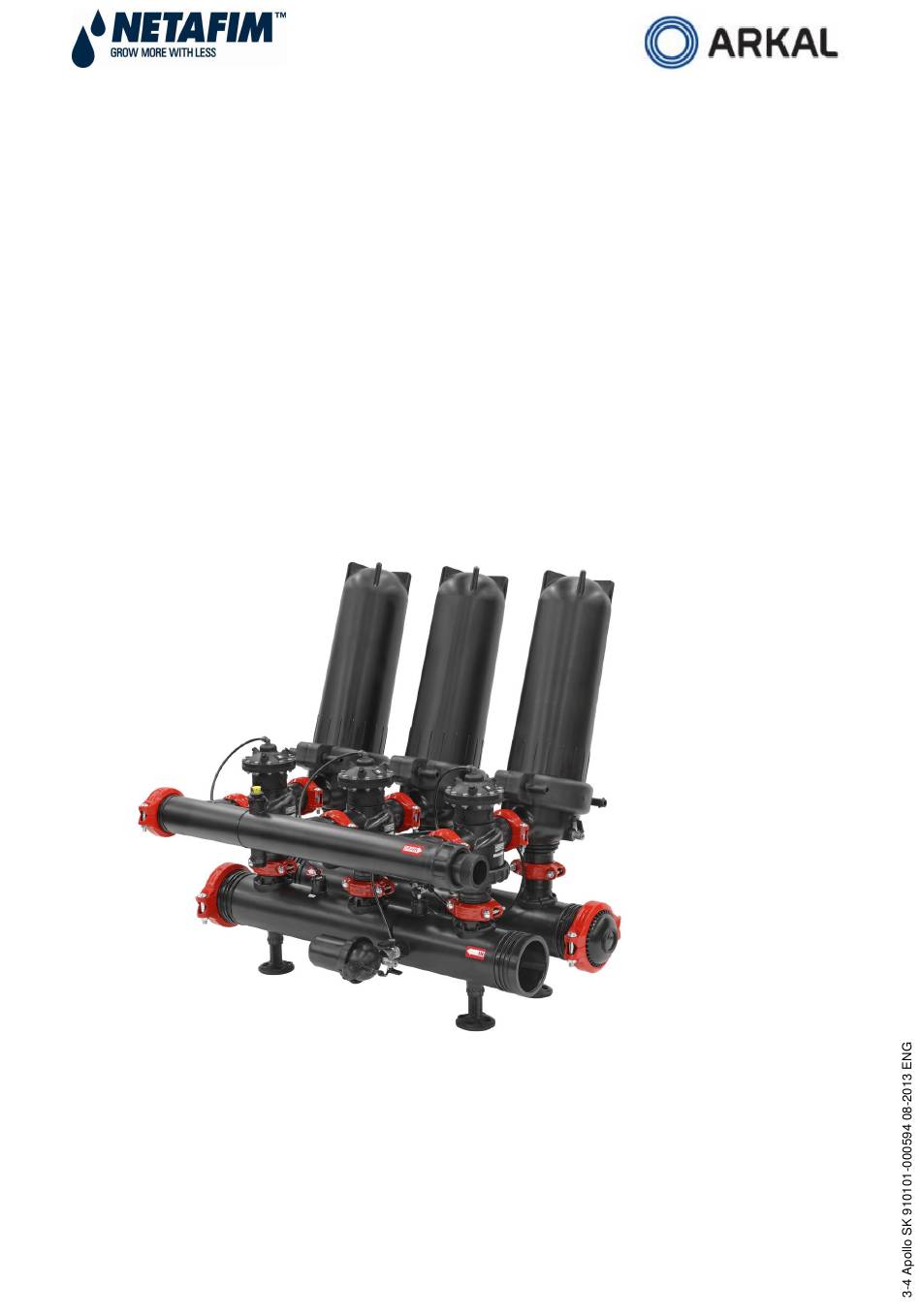

  • Page 1 3"- Spin Klin Angle Apollo Battery Service & Maintenance Manual...

  • Page 2: Table Of Contents

    Table of Contents Subject Page No. 1. Introduction ..................... 2. Safety Instructions .................. 3. Description and Operation ............... 4. Technical Data ..................5. Headloss Chart..................6. P & ID...................... 7. System Maintenance ................8. Troubleshooting ..................Limited Warranty ..................

  • Page 3: Introduction

    For operation and maintenance of the filter please follow the instructions in this manual. This Arkal Spin Klin Apollo battery is an automatic self-cleaning filter designed for non-hazardous liquids only and within the pressure and temperature framework described in the specifications table.

  • Page 4: Description And Operation

    3. Description and Operation Table of Filtration Grades of the Discs and Color Code Color Code Blue Yellow Black Mesh Micron Spin Klin Spine - The Core of the Spin Klin Filtration System ® ® The Spin Klin discs are stacked on the Spin Klin spine.
  • Page 5 3.3 Mode of Operation A hydraulic command [1], which pressurizes the upper control chamber [2], forces the diaphragm [3] actuated plug assembly [4] to move towards the supply port seat [5], eventually sealing it drip tight. This allows flow from the filter through the drain port seat [6]. Venting the upper control chamber causes the line pressure, together with the spring [7] force, to move the valve back to filtration mode.

  • Page 6: Technical Data

    4. Technical Data - 3"- Spin Klin Angle Apollo  Depended on the water quality 5. Batteries Headloss Chart - 130 micron, 3" Spin Klin Angle Apollo...

  • Page 7: P & Id

    6. P & ID Control Refer to the manufacturer’s handbook before installing the controller. Make sure that the voltage of both the solenoid unit and controller are correct. Set the manual operation button to automatic. Check that the ∆P hydraulic switch HIGH and LOW pressure lines are correctly connected to the appropriate ports.

  • Page 8: System Maintenance

    7. Apollo Spin Klin - System Maintenance Monthly Maintenance Check inlet /outlet pressures: In case the pressure differential is above 5 m / 7 Activate automatic backwash of the Spin Klin filter battery. In the event that the pressure differential remains high check for possible failures. Check for leakages from the drain manifold: In case there is a leakage of water during the filtration stage, check for possible failure at the backwash valve seals.
  • Page 9 SEASONAL MAINTENANCE - DISCS To guarantee thorough cleaning the following steps should be taken: Close the water inlet after backwashing the systems. Make sure that there is no pressure in the system, pull out the safety pin, open the clamp and remove the cover. (Figure 1) Unscrew the butterfly nuts on the Figure 1...
  • Page 10 Attention: When carrying out any of the following seasonal maintenance, service, or cleaning the discs – After backwashing the system and after closing the water inlet, make sure that there is no pressure in the system! Please Note: Before removing the cover you may experience the vacuum phenomenon which will make the removing of the cover very difficult or almost impossible.
  • Page 11 If these deposits cannot be eliminated by pretreatment of the water, we recommend the following cleaning procedure: Material and Equipment A well ventilated working place. 2 small containers (1 liter), 2 large containers (15 liter) and a stirring stick, all resistant to chemicals, preferably of polypropylene.
  • Page 12 Cleaning Carbonates and Iron Deposits Open the filter and remove the dirty discs. Arrange the discs loosely on the plastic rope. Prepare a 5% Solution of Hydrochloric Acid: 1) Pour 10 liters of water into one of the large containers. 2) Carefully add 2 liters of Hydrochloric Acid (30%) into the water.

  • Page 13: Troubleshooting

    8. Troubleshooting No Backwash Operation Check inlet and outlet pressures Check & clean command filter Check controller – manually operate the backwash cycle No command transfer Functioning correctly Some commands do not function Check electrical source Check electrical source Replace battery if needed Replace battery if needed Check solenoid electrical connectors...
  • Page 14 Identifying Malfunctions in the Apollo system Continuous or Non-stop Backwashing Continuous backwash Nonstop backwash cycle Disconnect the control Check inlet / outlet pressure pipes from the valves Check pressure differential gauge and replace if needed Check controller described above Contact your local distributor Command transfer No command transfer Disconnect the drain manifold...

  • Page 15: Limited Warranty

    ARKAL FILTRATION SYSTEMS or its authorized representative, of written notice thereof from the customer within 30 days of discovery of such defect or failure - ARKAL FILTRATION SYSTEMS will repair or replace, at its sole discretion, any item proven to be defective.
