Summary of Contents for Arkal 2" Sand Separator

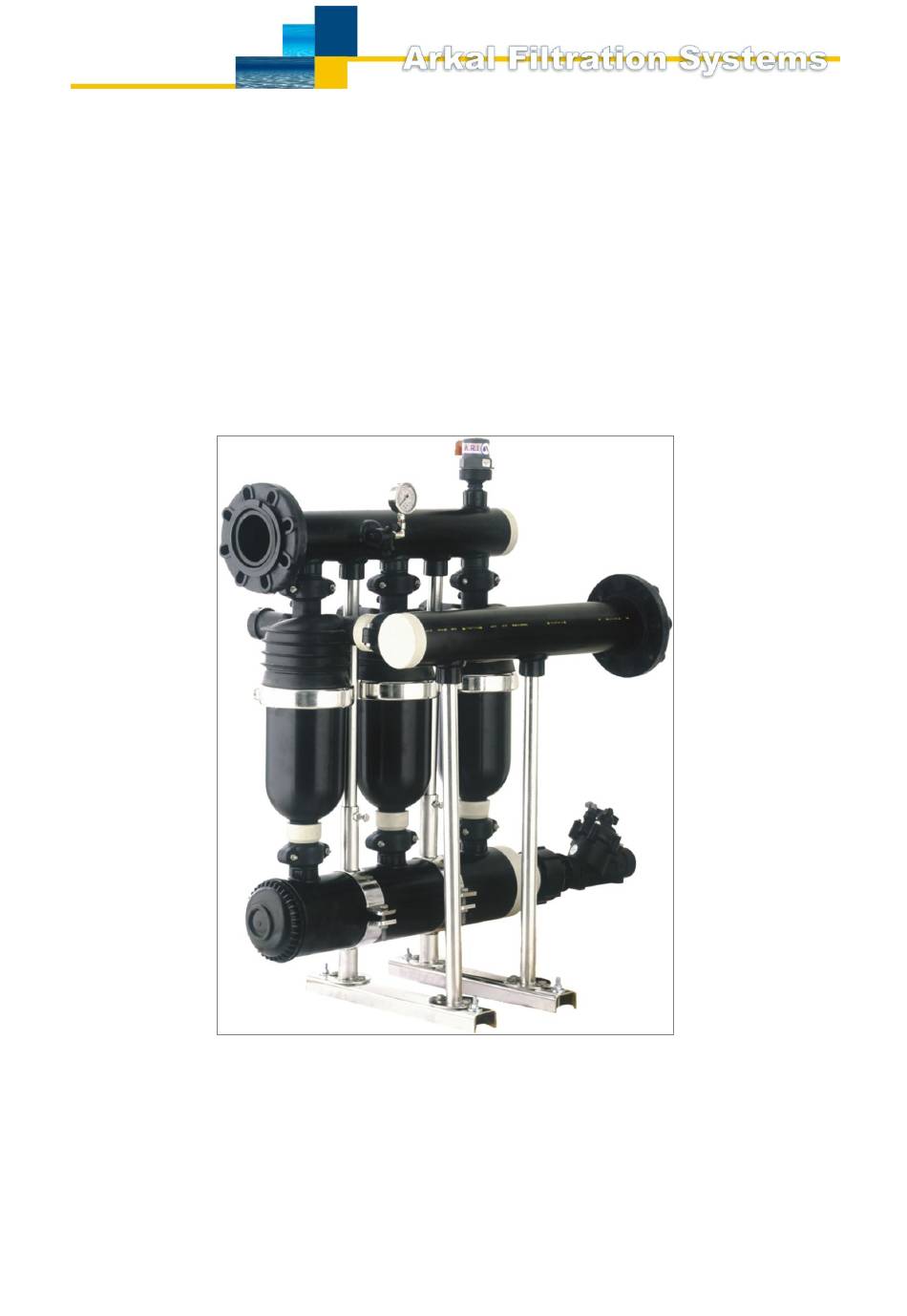

- Page 1 Arkal Sand Separator Operation, Service & Maintenance Manual Sand Separators Hydrociclone Batteries. by www.irrigationglobal.com...
- Page 2 Introduction General Arkal Filtration Systems congratulates you on purchasing the 2" sand separator. All Arkal Filtration Systems are easy to install, use and service and do not require special skills to operate them. For proper operation and maintenance of the system please follow the instructions manual...
- Page 3 Sand Separation Technology The Separation Process: The water stream enters the cyclone at a relatively high velocity via the inlet pipe, which is positioned, tangentially to the body of the cyclone. The shape of the cone creates a vortex of water. ...
- Page 4 Sand Separator Batteries Mode of Operation 1. Raw water flows through the inlet manifold and is distributed tangentially into the 2” Sand Separator. 2. The tangential inlet causes centrifugal forces, which in turn cause separation of the heavy sand particles from the water, throwing the sand particles toward the walls of the Sand Separator, where the particles settle down to the sand manifold.
- Page 5 Technical Data 2" Sand Separator Metric Connection diameter 50 mm 2 inch Maximum pressure 10 bar 145 psi Maximum temp. 70ºC 149º F Separation Efficiancy / Flow Rate Particle size larger than (micron): % Efficiency Headloss Chart Sand Separators for Water Filtration Batteries. by www.irrigationglobal.com...
-
Page 6: Technical Data
Technical Data 2" Sand Separator Batteries Metric HYD-2 HYD-3 HYD-4 HYD-5 HYD-2 HYD-3 HYD-4 HYD-5 Connection diameter 110mm 110mm 160mm 160mm 4 inch 4 inch 6 inch 6 inch Maximum pressure 10 bar 145 psi Maximum temp. 70ºC 149º F Separation Efficiancy / Flow Rate Particle size larger than (micron): HYD-2... - Page 7 Spare Part Single Unit for Battery No. Description Cat. No. Materials Filter cover complex 2202 0027 2" adapter vic./thr. 2253 4016 Filter cover 2501 0222 Erosion preventer 2200 0022 EPDM Cover seal 5005 0002 EPDM Clamp 5042 0030 Filter body complex 2218 0003 2"...
