aspenhome I205-284 Assembly Instructions

aspenhome
ah
ITEM NO: I205-284
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.

STEP 1: Put the case upside down on a soft surface,

Attach the legs and support legs to the bottom of
case by using 8 bolts(A), lock washers(B) and flat
washers(C). Return the case to the upright position.
Functionality Instruction
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/1

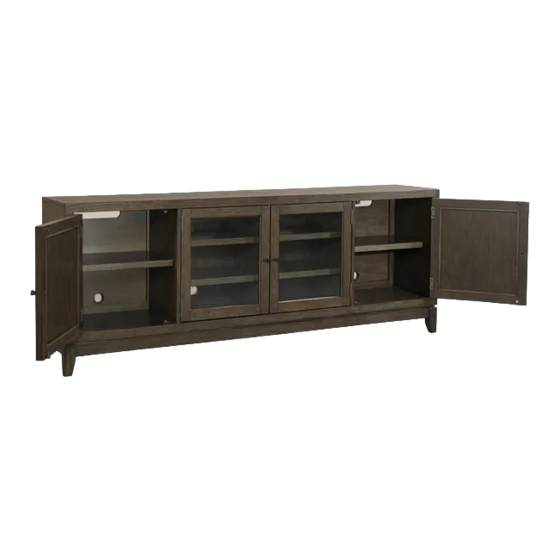

87" Console
Leveler on legs
& support legs
Adjust the leveler
when necessary
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
Tools Required (Not Provided)
PHILLIPS SCREWDRIVER
Components List:
Description
No.
1 Case
Leg
2
Support Leg
3
Hardware List:
No. Description
Bolt Ø1/4" x 2"
A
Lock Washer Ø1/4"
B
Flat Washer Ø1/4" x 3/4"
C
Allen Wrench 4mm
D
Case Bottom
If you prefer to adjust the shelf
location, remove the screws and
move shelf brackets to the
desired location. Then secure the
brackets to shelf with screws.
Sketch
Sketch
Leveler
Support Leg
Leg
Leveler
C
B
A
D
Quantity
1 PC
4 PCS
2 PCS
Quantity
8 PCS
8 PCS
8 PCS
1 PC
02-06-2020
