39 Inch L. x 20 Inch W.

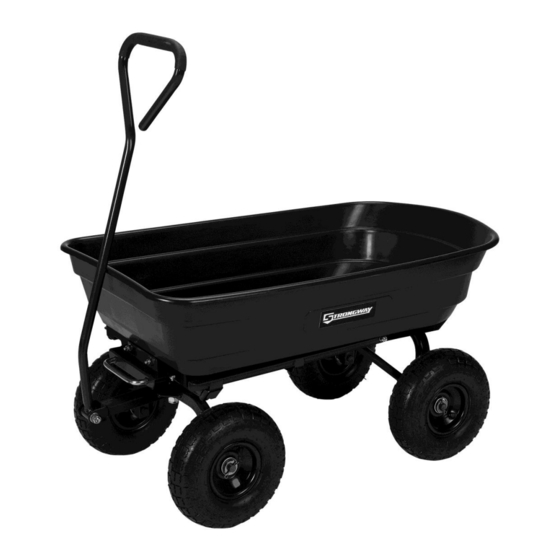

600-Lb. Poly Dump Cart
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #64136
READ & SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Strongway 64136
Summary of Contents for Strongway 64136
- Page 1 600-Lb. Poly Dump Cart Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #64136 READ & SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing a Strongway™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Packaging Contents ..........................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 5 Main Parts of Cart ..........................6 Assembly Instructions .......................... 7 Before Each Use ............................ 9 Operating Instructions ........................ -
Page 4: Intended Use
Intended Use The Strongway 600-Lb. Poly Dump Cart is perfect for moving and unloading supplies around the yard when gardening and landscaping. Packaging Contents Poly Tub Handle Front Axle Assembly Yoke Rear Axle Rear Struts (2) ... -
Page 5: Specific Operation Warnings
⚠WARNING PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury. -
Page 6: Main Parts Of Cart
Do not inflate the tires to more than 30 PSI. Do not use the cart on surfaces or for transporting objects that can cause damage to the pneumatic tires. Always check of damaged or worn out parts before using the cart. Broken parts will affect the operation. -
Page 7: Assembly Instructions
Assembly Instructions ⚠WARNING Read and understand all assembly and operating instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Recommended Tools Screwdriver, needle-nosed pliers, and adjustable wrenches STEP 1 Assemble the dump lock to the tub of the cart. - Page 8 STEP 3 Assemble the rear axle assembly to the tub of the cart. STEP 4 Assemble the rear struts to the rear axle. Tighten all bolts securely. STEP 5 Assemble the yoke to the front axle assembly. Tighten all bolts securely. Page 8 of 14...
-
Page 9: Before Each Use
STEP 6 Place the wheels onto each axle (valve stem facing out) and secure using washers and cotter pins. Bend the back the ends of the cotter pins to keep them in place. STEP 7 Turn the cart over. Slide the handle cap to the handle. Attach the handle to the yoke. Tighten the bolt securely. -
Page 10: Operating Instructions
Operating Instructions ⚠WARNING Do not exceed overall maximum loading capacity of 600 lb. or the overall maximum dumping load capacity of 300 lb. The weight rating is based on an evenly distributed load. Distribute load over the surface of the tub. Do not load items on the top edges of the tub. ... -
Page 11: Maintenance
Maintenance It is recommended the cart be inspected for damage before each use. Check for damaged parts before each use. Carefully check that the cart will operate properly and perform its intended function. When not in use, store in a safe dry place, out of direct sunlight. Maintenance Interval Maintenance Point ... -
Page 12: Replacement Parts
Replacement Parts For replacement parts and technical questions, please call Customer Service at 1-800-222-5381. Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence. ... -
Page 13: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or "Us'') warrants to the original purchaser only ("You'' or "Your") that the Strongway product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase. - Page 14 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 14 of 14...
