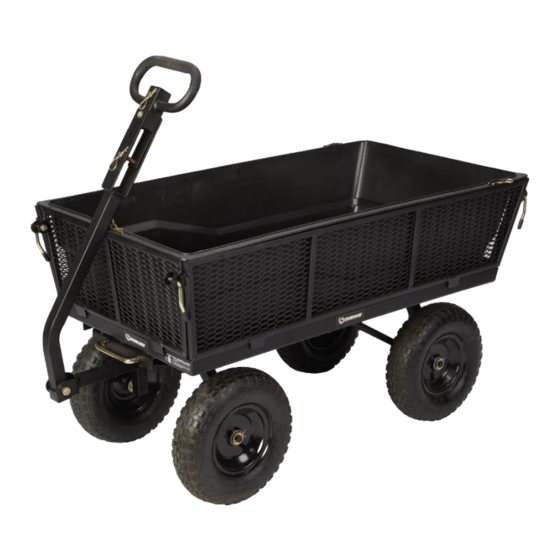

Steel Dump Cart with Removable Liner
1200-Lb.- 50 Inch L x 24 Inch W
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #64410
READ & SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Strongway 64410
Summary of Contents for Strongway 64410
- Page 1 1200-Lb.- 50 Inch L x 24 Inch W Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #64410 READ & SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing a Strongway™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Packaging Contents ..........................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 5 Main Parts of Cart ..........................6 Assembly Instructions .......................... 7 Before Each Use ..........................12 Operating Instructions ........................ -
Page 4: Intended Use
Intended Use The Strongway 1200-Lb. capacity Steel Dump Cart with Removable Liner is perfect for moving and unloading supplies around the yard when gardening or landscaping. Packaging Contents • • • Steel Bed Poly Cover Front Frame • • •... -
Page 5: Specific Operation Warnings
industrial equipment. There are certain applications for which this equipment was designed. This product will be safer and do a better job at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended. •... -
Page 6: Main Parts Of Cart
• This cart is not equipped with brakes. Do not park cart on an incline while loaded. • Do not pull or tow cart perpendicular to an incline while loaded. Cart may tip over and cause injury. • Use caution when removing sides as the load can fall out and cause injury. •... -
Page 7: Assembly Instructions
Assembly Instructions ⚠WARNING • Read and understand all assembly and operating instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Recommended Tools Screwdriver, Needle-nosed Pliers, and Adjustable Wrenches Step 1 Assemble the yoke to the front axle. - Page 8 Step 2 Assemble the yoke pin to the front axle assembly. Tighten all bolts securely. Step 3 Assemble the front frame to the bed of the cart. Tighten all bolts securely. Page 8 of 16...
- Page 9 Step 4 Assemble the front frame to the bed of the cart. Tighten all bolts securely. Step 5 Assemble the rear struts to the rear axle and bed of the cart. Tighten all bolts securely. Page 9 of 16...
- Page 10 Step 6 Place the wheels onto each axle (valve stem facing out) and secure using washers and cotter pins. Bend back the ends of the cotter pins to keep them in place. Step 7 Turn the cart over and attach the front, rear, left, and right panels. Page 10 of 16...
- Page 11 Step 8 Insert the poly cover and secure using R clips. Step 9 Attach the handle to the yoke. Tighten the bolt securely. Page 11 of 16...
-
Page 12: Before Each Use
Before Each Use ⚠WARNING • If any parts become damaged, broken, or misplaced, do not use this cart until replacement parts have been obtained. Operating Instructions ⚠WARNING • Do not exceed overall maximum loading capacity of 1,200 lb. or the overall maximum dumping load capacity of 500 lb. -
Page 13: Maintenance
Dumping Feature To use the dumping feature, pull the dumping release handle forward to release the tub from the locking mechanism. Lift the release handle to rotate the tub upward into the dumping position. ⚠WARNING • To reduce risk of injury when dumping, ensure the worksite is clear and free of hazards and bystanders. -
Page 14: Parts Diagram
Parts Diagram Parts List Reference Part Description Quantity Steel Bed (not available for ordering) Poly Cover (not available for ordering) Front Frame Front Axle Rear Axle Yoke Rear Struts Front Panel Rear Panel Side Panel Handle Tire Yoke Pin Hardware Kit Replacement Parts •... -
Page 15: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or "Us'') warrants to the original purchaser only ("You'' or "Your") that the Strongway product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase. - Page 16 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 16 of 16...
