Document 474640

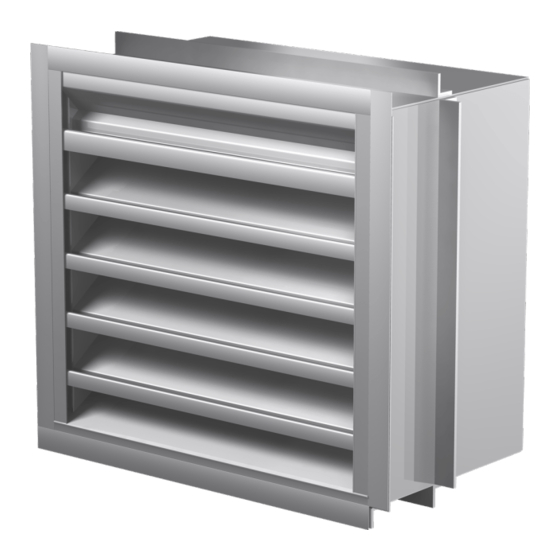

ESD-635D
Channel Installation
®
with VCD-40 Damper
Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 17-0919.04
Maximum Wind-load: 150 PSF
ESD-635D Channel Installation with Damper
1
®
Advertisement
Table of Contents
Related Manuals for Greenheck ESD-635D
Summary of Contents for Greenheck ESD-635D
- Page 1 Florida Product Approval No: FL10088 Miami-Dade NOA No.: 17-0919.04 Maximum Wind-load: 150 PSF ESD-635D Channel Installation with Damper ®...
- Page 2 Maximum Wind-load: 150 PSF Maximum Size and Installation Information Model ESD-635D with VCD-40 is a Miami-Dade Qualified and Florida Product Approved louver and must be installed in accordance with the installation instructions shown herein. Model ESD-635D with VCD-40 is qualified for installation within concrete/masonry, steel stud, structural steel or wood framed building conditions.
- Page 3 Florida Product Approval No: FL10088 Miami-Dade NOA No.: 17-0919.04 Maximum Wind-load: 150 PSF Single Section ESD-635D Channel Installation with Damper ®...
- Page 4 Florida Product Approval No: FL10088 Miami-Dade NOA No.: 17-0919.04 Maximum Wind-load: 150 PSF Multiple Sections Height ≤ 96 ½ ESD-635D Channel Installation with Damper ®...
- Page 5 Florida Product Approval No: FL10088 Miami-Dade NOA No.: 17-0919.04 Maximum Wind-load: 150 PSF Multiple Sections Height > 96 ½ ≤ 144 ½ ESD-635D Channel Installation with Damper ®...
- Page 6 Steel Stud / Structural Steel Substrate • Min. structure depth 6.866 in. • Min. structure depth 5.866 in. • Max. structure depth infinite • Max. structure depth infinite FASTENER SCHEDULE (FIELD INSTALLED - NOT BY GREENHECK) CONCRETE STEEL MIN. FASTENER TYPE...
- Page 7 • Min. structure depth 6.866 in. • Min. structure depth 6.866 in. • Min. structure depth 5.866 in. • Max. structure depth 12.275 in. • Max. structure depth infinite • Max. structure depth infinite ESD-635D Channel Installation with Damper ®...
- Page 8 As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Product warranties can be found online at Greenheck.com, either on the specific product page or in the literature section of the website at Greenheck.com/Resources/Library/Literature.
