Greenheck SP 210-258 Installation, Operation And Maintenance Manual

READ AND SAVE THESE INSTRUCTIONS
GREENHECK
P.O. BOX 410 SCHOFIELD, WISCONSIN 54476-0410
PH. 715-359-6171
®
www.greenheck.com
Installation, Operation and Maintenance Manual
SP/CSP 210-258
6
9
8B
8C
8E
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
• Fan Models SP/CSP 210 - 260 should only be used with fan speed control Part No.
KBWC-15K, manufactured by KB Electronics, Inc.
• Fan Models SP/CSP 262 - 275 should only be used with fan speed control Part No.
KBWC-112LK, manufactured by KB Electronics, Inc.
• Use this unit only in the manner intended by the manufacturer. If you have any
questions, contact the manufacturer.
• Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
• Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated construction.
• The combustion airflow needed for safe operation of fuel-burning equipment may be
affected by this unit's operation. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring or other
hidden utilities.
• This unit is not to be installed directly over a tub or shower.
• Ducted fans must always be vented to the outdoors.
For general ventilating use only.
Do not use to exhaust hazardous or explosive materials and vapors.
11
3
2
1
7
10
9
9
8D
8A
5
4
WARNING !
CAUTION
SP/CSP 260-280
11
6
10
9
8B
8C
8A
8B
8D

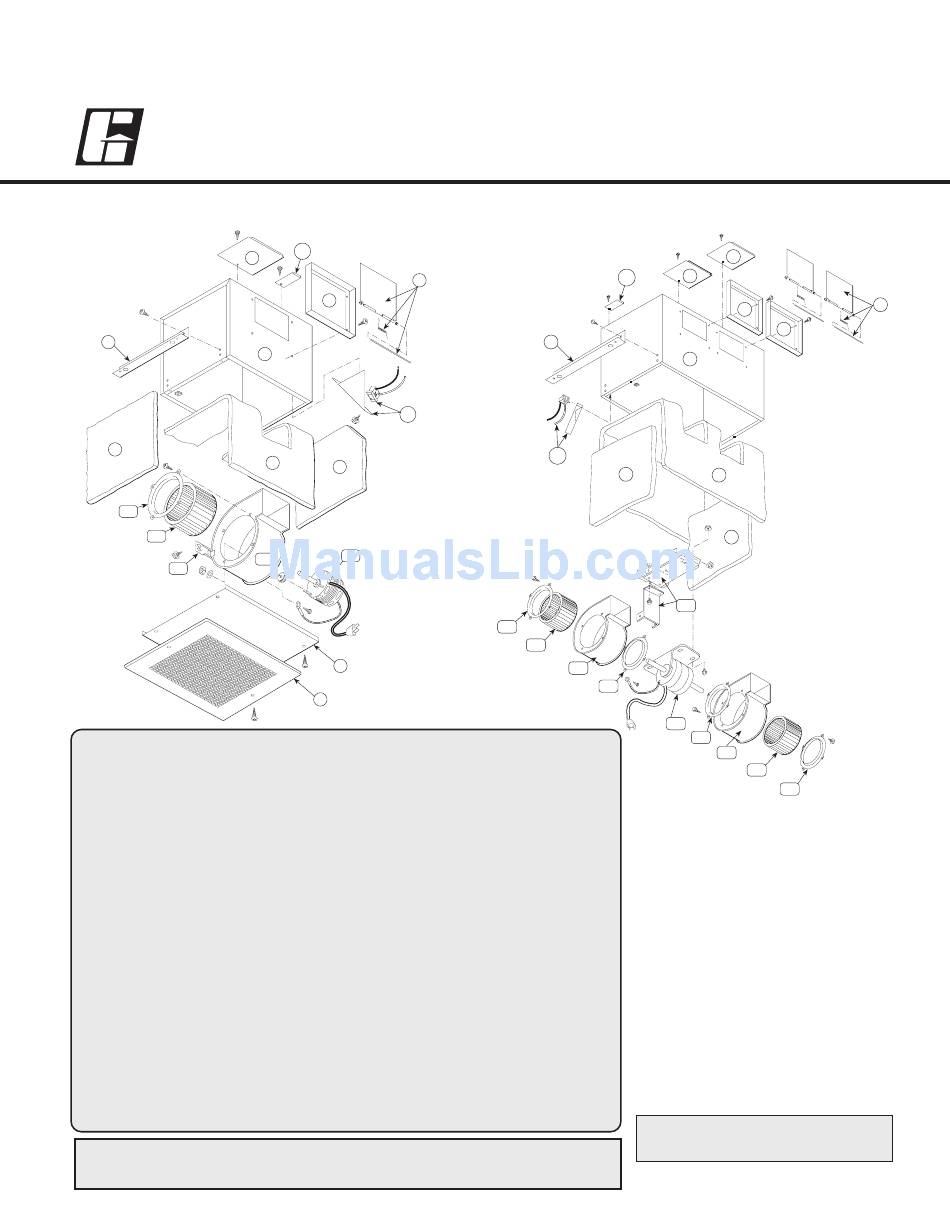

1. Duct Connector
2. Backdraft Damper Assembly
3. Discharge Cover Plate
4. Grille (SP)
5. Bottom Panel (CSP)
6. Mounting Angles
7. Housing
8. Power Assembly:
9. Insulation
10. Internal Receptacle and Bracket
11. Electrical Junction Cover Plate
Tools Required - Phillips head
screwdriver and wrenches.
PN 453669
Models SP/CSP
Ceiling and
Cabinet Fans
3
3
1
1
7
9
9
8E
8B
8A
8C
8B
Parts List
A. Scroll
B. Venturi
C. Wheel
D. Motor
E. Drive Frame
2
