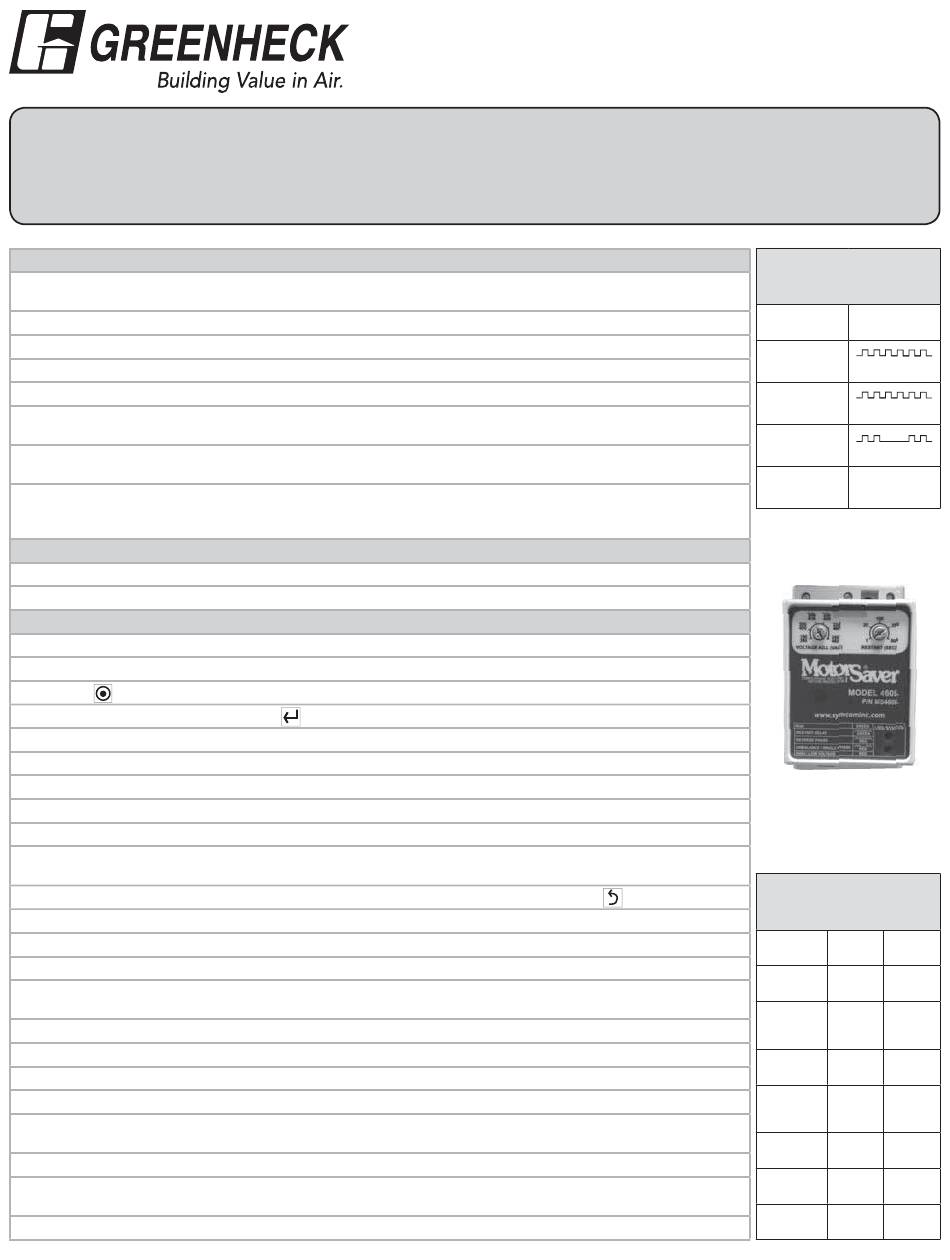

Greenheck RV Series Quick Start Manual

®
This quick start document is intended to help with getting the initial unit startup completed, but does not replace the
IOM. Please read the IOM for all safety information and precautions before performing any work on the equipment.
Complete pre-start checks and blower start-up prior to this procedure.
Fans (*See Model RV/RVE Installation, Operation and Maintenance Manual)
1. Verify discharge air sensor installation at least three duct diameters downstream of the unit discharge.
(Field install)
2. Verify proper phasing of incoming power. See Figure 1 and Figure 2

3. Energize the unit supply and optional exhaust fan:

a. Connect terminal R to terminal G, R to W1 (if applicable), R to Y1 (if applicable) , and R to Y2 (if applicable).

4. Verify blower operation:

a. Check rotation: To reverse the rotation, disconnect and lockout the power, then interchange any two power
leads going to the motor.
b. Check motor amp draw: Compare to motor nameplate FLA - record reading in the *Start-up Report and reduce
airflow. If amp draw is greater than FLA, record any changes you make as well.
c. Check for excessive noise and vibration. If present, check fasteners between motor and impeller, motor and
frame, frame and unit block-off, and make sure they are tight. Check for contact between impeller and inlet
cone.
Energy Wheel (If Present,*see Model RV/RVE Installation, Operation and Maintenance Manual)
1. Verify energy wheel rotation direction (speed may vary depending on wheel model).
2. Check energy wheel motor amp draw, and compare to motor nameplate FLA and record in *Start-up Report.
Cooling (Requires minimum 55°F outdoor air temperature) (Repeat for each circuit)
1. Place a refrigeration manifold gauge set onto each refrigeration circuit.
a. Note: For the high side connection utilize the liquid line service valve.
2. Press the program key on the Carel controller.
3. Scroll down to Ctrl Variables, press the
4. Scroll down to Advanced, press the enter key.
5. Scroll down to Login, press the enter key.
6. Set password to 9998, press the enter key.
a. To change password, press enter when you first enter Login screen.
b. The cursor will move to underneath the first digit of the password. Scroll up/down to change the value.
c. Press enter to move the cursor to the next digit, and repeat the process until all 4 digits are correct. Then press
enter one last time.
7. After a moment the controller should put you back into the Advanced menu, if not press the
8. Scroll down to Manual Overrides, and press enter.
9. In the manual overrides menu, scroll to Manual Override Mode, and check the Enable Duration box.
a. To check the box, press enter once you reach Manual Override Mode. The cursor should appear over the box.
b. Press up or down to put an X in the box. Press enter again to select the time for which Override Mode will be
enabled. (Can be changed, but not necessary)
c. Press enter again to deselect everything.
10. Scroll to Unit On Off in the Manual Overrides menu.
11. Press enter and change the Override option to Manual and the Value option to On.
12. Press enter again to deselect Value.
13. Scroll to Cooling Ramp 1 in the Manual Overrides menu. (Note: Be careful, DO NOT do this on either
Compressor Override screen).
14. Set the Override option to Manual and the Demand option to 100%.
15. If hot gas reheat is present in unit, scroll to Hot Gas Reheat Ramp in Manual Overrides menu, and set Override
to Manual and Value to 0%.
16. Restrict the condensing coil until the high side pressure = 450 psig, not to exceed 525 psig.
Models RV and RVE Quick Start Guide
enter key.
Document 695057
Models RV and RVE
Quick Start Guide
Phase Monitor Indicator
Lights Diagnostics
Run
Restart Delay
Reverse Delay
Unbalance/
Single Phase
High/Low
Voltage
Typical Phase Monitor
back button.
Refrigeration Values for Air
Cooled Condensing Systems
Operating
Pressure
Discharge
Pressure
Liquid
Pressure
Superheat
Compressor
Discharge
Temp.
Subcooling
Cond Air:
In
Cond Air:
Out
Figure 1:
GREEN
GREEN
RED
RED
RED
Figure 2:
Figure 3:
107-145
125 PSI
PSI
250-460
375 PSI
PSI
Within 15
PSI of 365 PSI
discharge
10-18ºF 12ºF
120-
135ºF
180ºF
8-20ºF 15ºF
55-95ºF
20ºF
25-60ºF
Delta T
