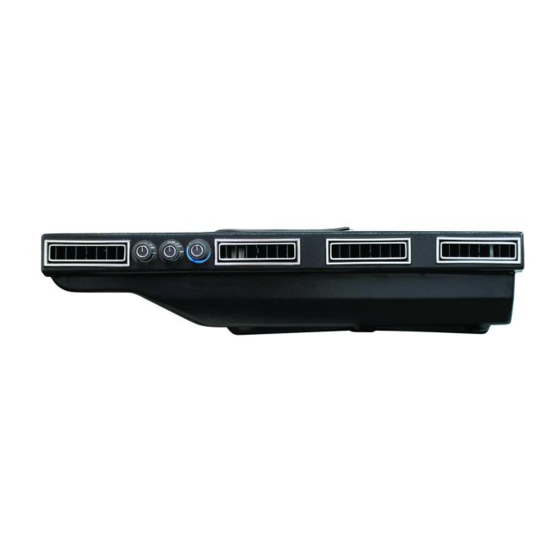

- Page 1 ISO 9001:2008 Registered Company SLIMLINE HEAT/COOL 11301-VUX-A 11401-VUX-A EN CO A/ C HE AT OF F DE F ME D 901301 REV D 10/27/14, SLIMLINE HC PG 1 OF 12...
- Page 2 Table of Contents PAGES 1. COVER 2. TABLE OF CONTENTS 3. PACKING LIST 4. INFORMATION PAGE 5. INSTALLATION 6. INSTALLATION CONTINUED 7. HOSE ROUTING 8. O-RING/FITTING INSTRUCTIONS 9. HEATER HOSE INSTALLATION 10. WIRING DIAGRAM 11. THERMOSTAT ADJUSTMENT 12. EVAPORATOR KIT PACKING LIST 901301 REV D 10/27/14, SLIMLINE HC PG 2 OF 12...
- Page 3 INSTALLATION KIT ** BEFORE BEGINNING INSTALLATION, OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT. PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS, VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS. EN CO...
- Page 4 FOR MAXIMUM SYSTEM PERFORMANCE VINTAGE AIR RECOMMENDS THE FOLLOWING: THIS KIT DOES NOT CONTAIN HEATER HOSE. . YOU MUST PURCHASE 8 FEET OF 5/8” DIA. . HEATER HOSE FROM VINTAGE AIR(31800-VUD) OR FROM YOU LOCAL PARTS RETAILER. SAFETY SWITCHES: A COMPRESSOR SAFETY SWITCH MUST BE INSTALLED ON EVERY A/C SYSTEM. A BINARY SWITCH DISENGAGES THE COMPRESSOR CLUTCH IN CASES OF EXTREME LOW PRESSURE (REFRIGERANT LOSS) OR EXCESSIVELY HIGH HEAD PRESSURE (406 PSI) TO PREVENT COMPRESSOR DAMAGE OR HOSE RUPTURE.
- Page 5 INSTALLATION ATTACH EVAPORATOR BRACKETS TO EVAPORATOR (SEE FIGURE 1). POSITION EVAPORATOR WITH BRACKETS UNDER DASH. MARK AND DRILL (2) 9/32" DIAMETER HOLES UNDER THE LIP OF THE DASH. ATTACH THE FRONT BRACKETS TO THE DASH WITH 1/4" x 1" BOLTS, WASHERS AND NUTS PROVIDED (SEE FIGURE 2).
- Page 6 POSITION AFTER CRIMPING. THE RUBBER HOSE IS ONLY CAPABLE OF A MINIMAL AMOUNT OF TWIST TO AID ALIGNMENT. REMOVE HOSES AND CRIMP ENDS. IF YOU DO NOT HAVE ACCESS TO THE PROPER EQUIPMENT, VINTAGE AIR RECOMMENDS TAKING THEM TO A QUALIFIED A/C SERVICE CENTER FOR CRIMPING. (SEE CRIMPING INSTRUCTIONS SUPPLIED WITH THE HOSE KIT).
- Page 7 901301 REV D 10/27/14, SLIMLINE HC PG 7 OF 12...
- Page 8 BE CAREFUL TO ENSURE THAT THIS WIRE IS NOT PINCHED OR IN A POSITION TO RUB ON A SHARP EDGE AS IT GOES THRU THE FIREWALL. AN OPTIONAL VACUUM RESERVOIR WITH CHECK VALVE WILL HELP SYSTEM WORK UNDER A VARIETY OF CONDITIONS. (VINTAGE AIR PART #31200-VUS VACUUM RESERVOIR).
- Page 9 CAUSE HEATER CORE TO CORRODE PREMATURLEY AND POSSIBLY BURST IN THE A/C MODE AND/OR FREEZING WEATHER, VOIDING YOUR WARRANTY. CHECK COMPLETE A/C ASSEMBLY FOR PROPER OPERATION. VINTAGE AIR RECOMMENDS THAT ALL A/C SYSTEMS BE SERVICED BY A CERTIFIED AUTOMOTIVE AIR CONDITIONING TECHNICIAN ONLY. SEE INSIDE COVER FOR SERVICE INFORMATION.
- Page 10 BATTERY TERMINAL VALVE ON REGULATOR, ALTERNATOR, OR STARTER SOLENOID. BLACK ENGINE VACUUM TO INTAKE MANIFOLD VACUUM SOURCE OPTIONAL VACUUM RESERVOIR VACUUM VINTAGE AIR PART#31200-VUS RESERVOIR WIRES = VACUUM BLACK LINES = 901301 REV D 10/27/14, SLIMLINE HC PG 10 OF 12...
- Page 11 THERMOSTAT ADJUSTMENT COLDER CLOCKWISE ADJUSTABLE KNOB CAPILLARY TUBE COUNTERCLOCKWISE WARMER EVAPORATOR COIL AIR CONDITIONING ADJUSTMENTS: THE AIR CONDITIONER THERMOSTAT CONTROLS COIL TEMPERATURE. THERMOSTATS ARE SHIPPED ADJUSTED • FULLY COLD (CLOCKWISE). IN THE MAJORITY OF CASES, THE A/C WILL OPERATE CORRECTLY AS SHIPPED. TURNING THE KNOB TO THE RIGHT (CLOCKWISE) MAKES THE SYSTEM OPERATE COLDER.
- Page 12 EVAPORATOR KIT 11301-VUX-A EVAPORATOR KIT PACKING LIST 11401-VUX-A No. QTY. PART No. DESCRIPTION 55328-VUE-A EVAPORATOR SUBCASE H/C w/ STD LOUVERS 55428-VUE-A EVAPORATOR SUBCASE H/C w/ BLK LOUVERS 64143-VUE EVAPORATOR MOUNTING BRKT. KIT 63300-VUE INSTALLATION KIT CHECKED BY: PACKED BY: DATE:...
