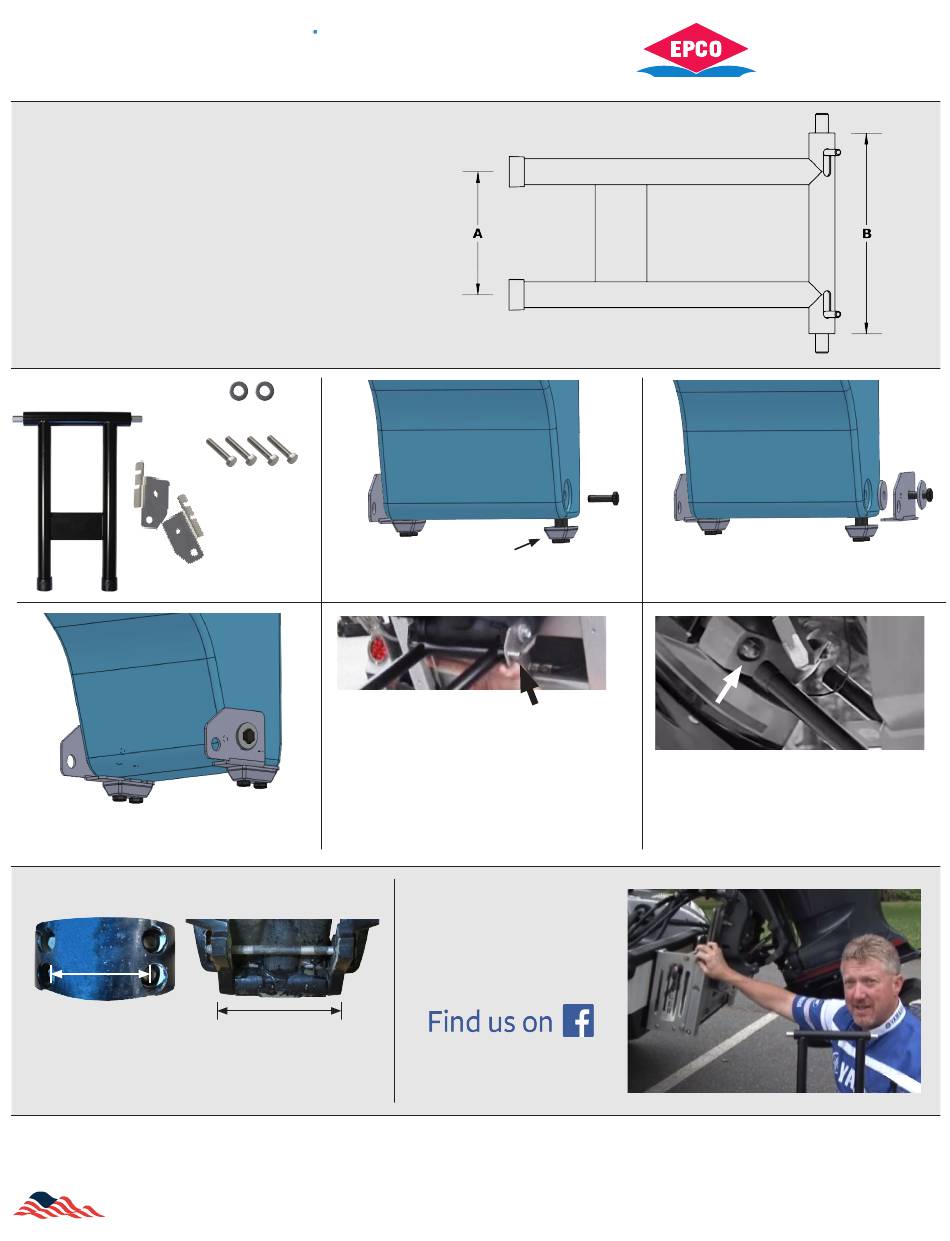

Motormate Yamaha 10-303A SHO Installation Instructions

Installation Instructions: Yamaha 10-303A SHO
Confirm Measurements Prior to Installation
It is necessary to confirm the spacing of the contact points on
the outboard motor are the same as A.
The motor yoke spacing A is the Center to Center distance between the
motor contact points securing the MotorMate to the motor drive
shaft housing. See Reference Image A below.
The transom mount spacing B is measured between the outside edges
of the stern brackets. See Reference Image B below.
Package Contents:
* Marine Grade Stainless Steel
Secure bolts tightly
Reference Images:
(4 3/4")
A
Measure between
center to center
distance between the
contact points.
The cover around the contact points could be damaged and/or cracked if instructions are not followed.
MotorMate is not responsible for any damage to the MotorMate unit or any part of the motor due to improper installation or use.
MADE IN THE USA
R R
Two Washers*
Four Bolts*
Two Brackets*
(L/R)
Remove anode bolts & replace with included 6mm x 30mm
hex head bolts. In addition, remove side bolts and washers.
3
Insert MotorMate Locking Pins into holes on the
brackets. Straighten motor. Lower motor very
slowly and stop one inch away to make sure
MotorMate End Caps are aligned with the contact
points on the motor. Continue lowering the motor
while aligning the MotororMate End Caps with the
motor contact points until the motor is securely
held in place.
B
(7 3/4")
Measure between
the outside edges of
the stern brackets.
Call 1-844-MotorM8 (668-6768) for assistance with installation
(4 3/4")
Anode
Yamaha Installation Video:
www.motormateusa.com
EPCO Products, Inc.
Fort Wayne, IN USA
1-844-MotorM8 (668-6768)
www.motormateusa.com
1
Place smaller washer provided and bracket over holes
while fitting the bracket around the bolts holding the
Anode. Original washer fits under under head of bolt.
4
Example of the recessed areas containing the
motor contact points where the MotorMate End
Caps secure the motor and where the outboard
motor center to center measurements are made.
(7 3/4")
2
5
RV:3062015
