Motormate Honda 10-401-SS Installation Instructions

Installation Instructions: Honda 10-401-SS

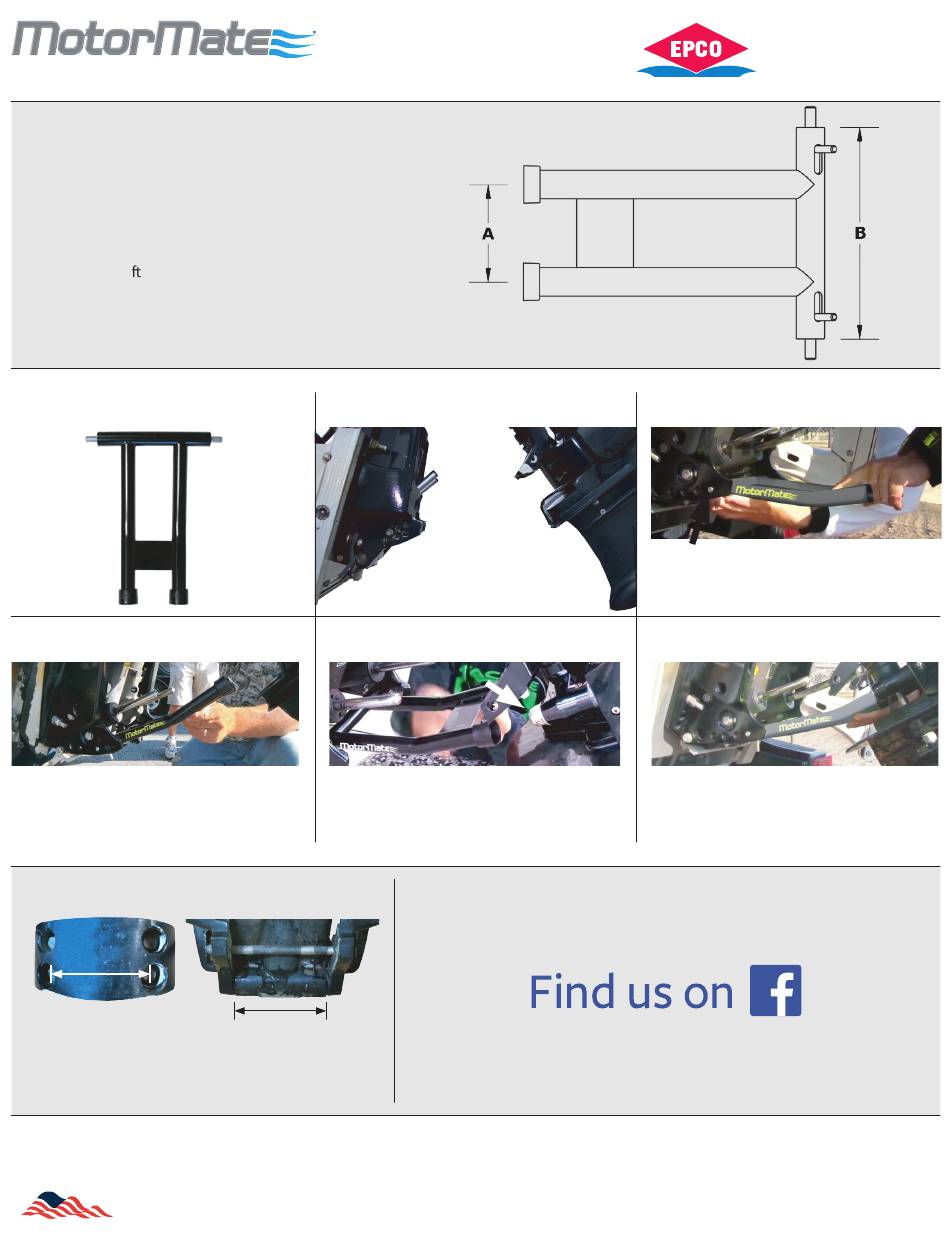

Confirm Measurements Prior to Installation
It is necessary to confirm the spacing of the contact points on the
outboard motor are the same as A.
The motor yoke spacing A is the Center to Center distance
between the motor contact points securing the MotorMate to the
motor drive sha housing. See Reference Image A below.
The transom mount spacing B is measured between the inside
edges of the stern brackets. See Reference Image B below.

Package Contents:

Lower motor very slowly and stop one inch
away to make sure the MotorMate End Caps
are aligned with the contact points on the
motor.

Reference Images:

(3.25")
A
Measure between
center to center
distance between
the contact points.
The cover around the contact points could be damaged and/or cracked if instructions are not followed.
MotorMate is not responsible for any damage to the MotorMate unit or any part of the motor due to improper installation or use.
MADE IN THE USA
Raise motor and straighten
before engaging the MotorMate.
3
Example of the recessed areas containing
the contact points where the MotorMate
End Caps secure the motor and where the
outboard motor center to center
measurements are made.
B
(7.19")
Measure between
the inside edges of
the stern brackets.
Call 1-844-MotorM8 (668-6768) for assistance with installation
(3.25")
1
4
Honda Installation Video: motormateusa.com
EPCO Products, Inc.
Fort Wayne, IN USA
1-844-MotorM8 (668-6768)
epcomarineproducts.com

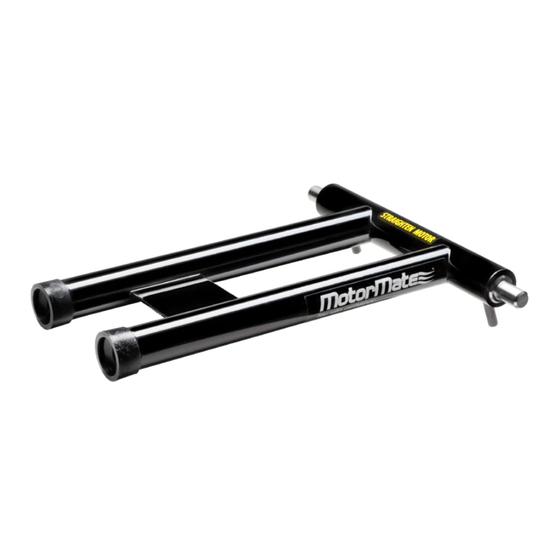

MotorMate Locking Pin.
Clip Locking Pins into holes in
transom stern brackets.
Continue lowering the motor while
aligning the MotorMate End Caps with the
contact points until the motor is securely
held in place.
(7.19")
2
5
RV:3062015
