Motormate Mercury 10-201 Installation Instructions

Installation Instructions: Mercury 10-201

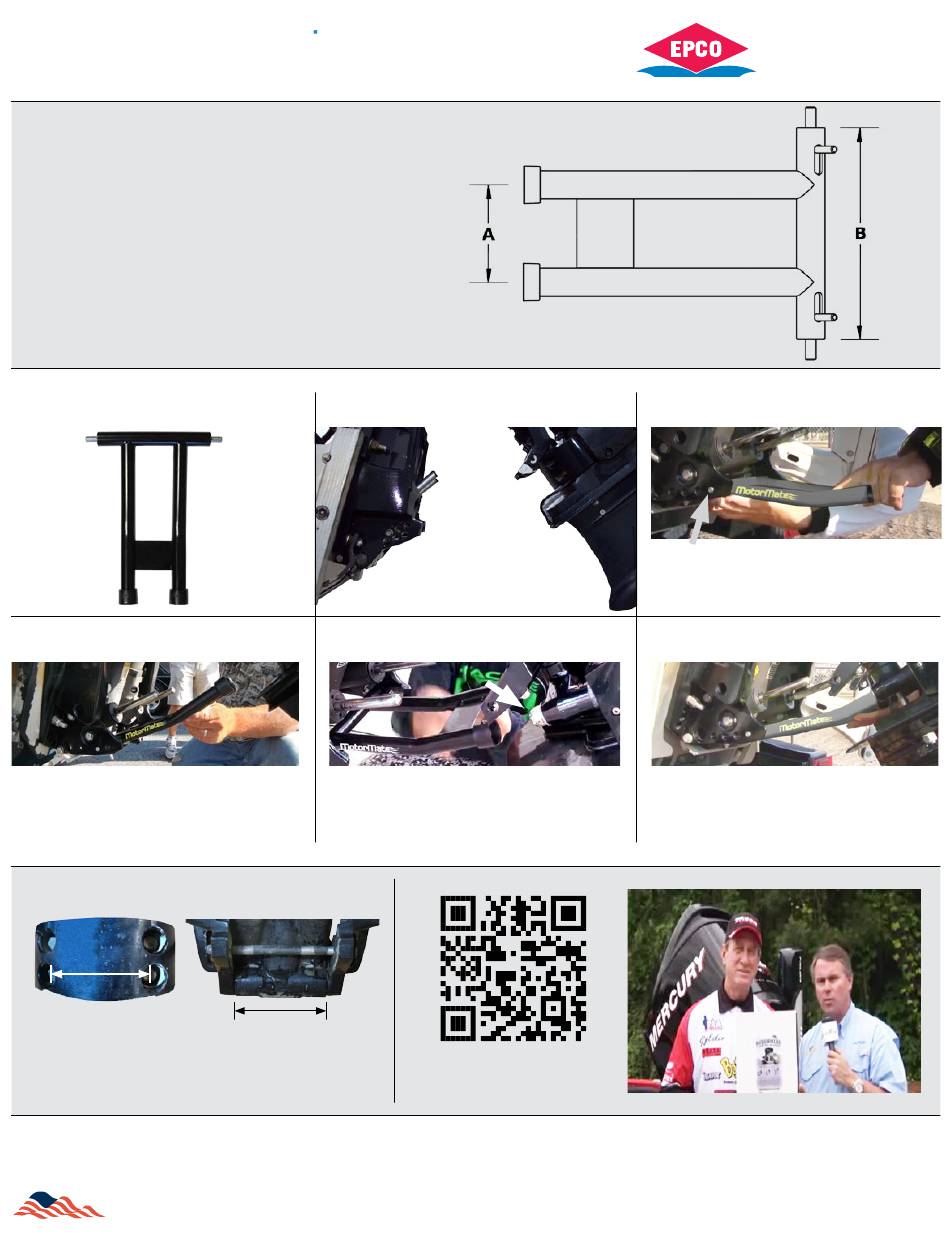

Confirm Measurements Prior to Installation
It is necessary to confirm the spacing of the contact points on
the outboard motor are the same as A.
The motor yoke spacing A is the Center to Center distance between the
motor contact points securing the MotorMate to the motor drive
shaft housing. See Reference Image A below.
The transom mount spacing B is measured between the inside edges
of the stern brackets. See Reference Image B below.
Package Contents:
Lower motor very slowly and stop one inch away
to make sure MotorMate End Caps are aligned
with the contact points on the motor.
Reference Images:
(3.50")
A
Measure between
center to center
distance between the
contact points.
The cover around the contact points could be damaged and/or cracked if instructions are not followed.
MotorMate is not responsible for any damage to the MotorMate unit or any part of the motor due to improper installation or use.
MADE IN THE USA
R R
3
Example of the recessed areas containing the
contact points where the MotorMate End Caps
secure the motor and where the outboard motor
center to center measurements are made.
B
(7.44")
Measure between
the inside edges of
the stern brackets.
Call 1-844-MotorM8 (668-6768) for assistance with installation
(3.50")
Raise motor and straighten before
engaging the MotorMate.
Mercury Installation Video:
epcomarineproducts.com/mercury/
EPCO Products, Inc.
Fort Wayne, IN USA
1-844-MotorM8 (668-6768)
epcomarineproducts.com
1
MotorMate Locking Pin.
Clip Locking Pins into holes in
transom stern brakets.
4
Continue lowering the motor while aligning the
MotorMate End Caps with the contact points until
the motor is securely held in place.
(7.44")
2
5
RV:3062015
