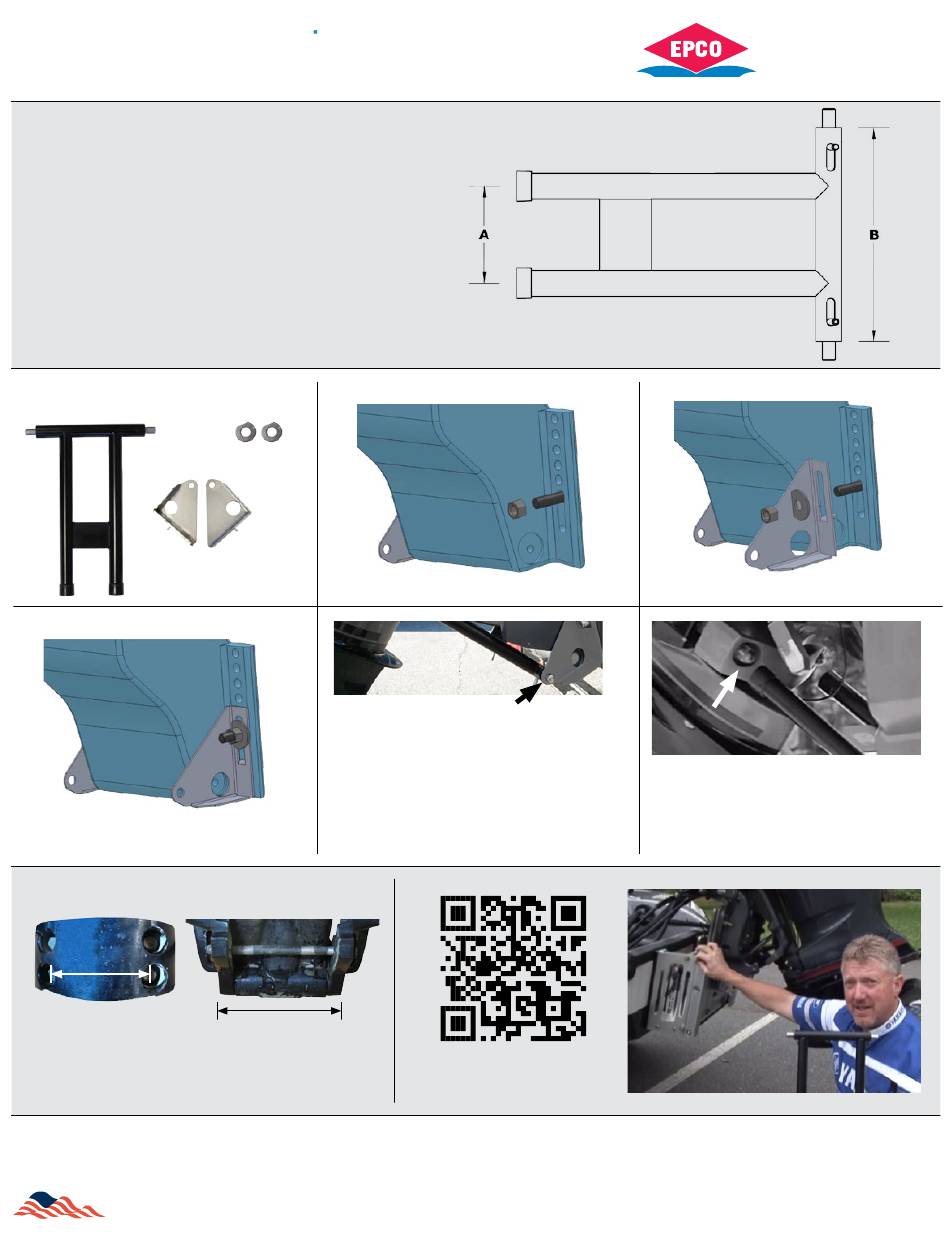

Motormate Yamaha 10-301 Installation Instructions

Installation Instructions: Yamaha 10-301

Confirm Measurements Prior to Installation

It is necessary to confirm the spacing of the contact points on
the outboard motor are the same as A.
The motor yoke spacing A is the Center to Center distance between the
motor contact points securing the MotorMate to the motor drive
shaft housing. See Reference Image A below.
The transom mount spacing B is measured between the outside edges
of the stern brackets. See Reference Image B below.

Package Contents:

Two Brackets (L/R)
Secure nut tightly

Reference Images:

(3.75")
A
Measure between
center to center
distance between the
contact points.
The cover around the contact points could be damaged and/or cracked if instructions are not followed.
MotorMate is not responsible for any damage to the MotorMate unit or any part of the motor due to improper installation or use.
MADE IN THE USA
R R
Two Washers
Remove nut from bolt
3
Clip Locking Pins into holes on the brackets.
Straighten motor. Lower motor very slowly and
stop one inch away to make sure MotorMate End
Caps are aligned with the contact points on the
motor. Continue lowering the motor while aligning
the MotororMate End Caps with the motor contact
points until the motor is securely held in place.
B
(8.25")
Measure between
the outside edges of
the stern brackets.
Call 1-844-MotorM8 (668-6768) for assistance with installation
(3.75")
MotorMate Locking Pin
Yamaha Installation Video:
epcomarineproducts.com/yamaha/
EPCO Products, Inc.
Fort Wayne, IN USA
1-844-MotorM8 (668-6768)
epcomarineproducts.com
1
Place bracket and than washer over bolt
4
Example of the recessed areas containing the
motor contact points where the MotorMate End
Caps secure the motor and where the outboard
motor center to center measurements are made.
(8.25")
2
5
RV:3062015
