Page 1: Parallel Port
3 Parallel Port Multiprotocol Ethernet/Fast Ethernet Print Server Hardware User’s Guide Rev. 01 (May, 2000) About This Guide... -
Page 2: Wichtige Sicherheitshinweise
Wichtige Sicherheitshinweise Bitte lesen Sie sich diese Hinweise sorgfältig durch. Heben Sie diese Anleitung für den spätern Gebrauch auf. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung. Um eine Beschädigung des Gerätes zu vermeiden sollten Sie nur Zubehörteile verwenden, die vom Hersteller zugelassen sind. - Page 3 16. Bei Reparaturen dürfen nur Orginalersatzteile bzw. den Orginalteilen entsprechende Teile verwendet werden. Der Einsatz von ungeeigneten Ersatzteilen kann eine weitere Beschädigung hervorrufen. 17. Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren Servicepartner. Somit stellen Sie die Betriebssicherheit des Gerätes sicher. 18.Z um Netzanschluß...
-
Page 4: Copyright Statement
Trademarks Copyright 2000 Contents subject to change without prior notice. All trademarks belong to their respective proprietors. Copyright Statement No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission, as stipulated by the United States Copyright Act of 1976. -
Page 5: Table Of Contents
ABLE OF BOUT UIDE ...1 NTRODUCTION Print Server Features ... 1 External Features ... 3 Port Connectors ... 3 Network Cable Connector ... 3 DC Power Connector ... 4 LED Indicators ... 4 NPACKING AND NSTALLATION Unpacking and Inspecting the Print Server ... 6 Installing the Print Server ... - Page 6 ... 13 INOUTS Parallel Ports... 13 About This Guide...
-
Page 7: About This Guide
BOUT UIDE This manual describes the 3 Parallel Port Ethernet/Fast Ethernet Multiprotocol Print Server, including a description of the print server’s features, as well as the print server installation procedures and troubleshooting self-test results. For information about software configuration of the Print Server to allow it to be used with your network, consult the PS Admin User’s Guide included with your Print Server. -
Page 9: Introduction

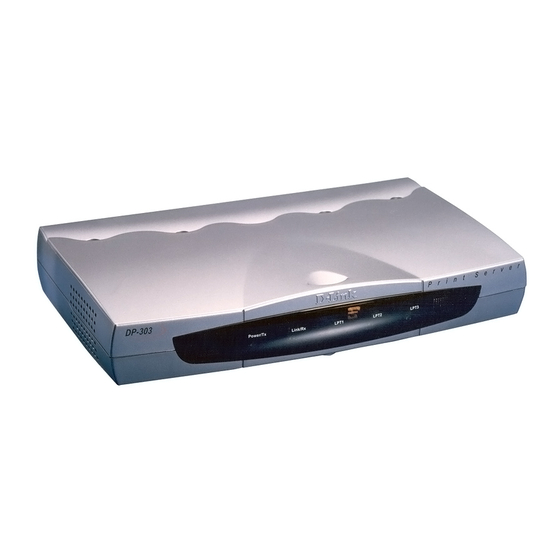

3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide The Print Server is a compact print server which connects to your Ethernet or Fast Ethernet network anywhere you wish to locate printer services. It manages the flow of print files from your workstations or file servers to its connected printers, delivering print jobs to high-performance printers much faster than a file server or a PC acting as a print server can. - Page 10 The Print Server's parallel printer ports are IEEE 1284 compliant high-speed bidirectional ports, which can transmit to high-speed laser printers much faster than a PC's parallel printer port. High-speed laser printers connected to the Print Server's parallel ports can be operated at their full capacity. Because the Print Server is very portable and inexpensive compared to a PC-based print server, and because the Print Server connects to your file servers through the network,...
-
Page 11: External Features
3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide External Features This section describes the externally visible features of the Print Server. Port Connectors The Print Server’s three printer ports are located on its rear panel. Three identical parallel ports are labeled LPT1, LPT2 and LPT3. These printer ports are independently configurable using the PS Admin program or the print server’s interface. -
Page 12: Dc Power Connector
DC Power Connector The DC power input connector is located on the Print Server’s rear panel and is labeled DC 5V. LED Indicators The front panel of the Print Server features five LED indicators: Front Panel LED Indicators Power/Tx Steady or flashing green confirms that the Print Server is powered on. - Page 13 3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide These three indicators are also used by the print server’s power-on self test (POST) to indicate any hardware failures. Introduction...
-
Page 14: Npacking And Nstallation
This chapter explains how to install your Print Server and connect it to the network. It also describes the print server self test indications. Unpacking and Inspecting the Print Server Carefully remove all items from the package. In addition to this Hardware User’s Guide, be certain that you have: One 3 Parallel Port print server One AC power adapter suitable for your country’s electric... -
Page 15: Installing The Print Server
3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide Installing the Print Server WARNING: Configuration problems may result if the Print Server establishing its network connection. Follow this procedure to avoid complications at the configuration stage. 1. Confirm proper operation of each of the printers to be connected to the Print Server. -
Page 16: Power On Self-Test
Power On Self-Test When the Print Server is powered on, it automatically performs a self-test on each of its major components. The final result of the self- test is signaled by the state of the LPT1, LPT2, and LPT3 LED indicators following the self-test. -
Page 17: Testing Your Print Server
3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide on/steady on/steady on/steady flashing flashing flashing on/steady on/steady on/steady on/steady on/steady flashing flashing flashing flashing flashing Testing Your Print Server The PS Admin software includes a Print Test function for confirmation of printer cable connections and functions. -
Page 18: Product
RODUCT PECIFICATIONS Printer Connection Standards: IEEE 1284 bi-directional parallel interface Ports: Bi-directional 25-pin parallel ports Parallel Port Bi-directional Communication: Hewlett-Packard PJL (Printer Job Language) supported Network Connection Network Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet Network Data Transfer Rate: 10/100Mbps Network Connector: RJ-45 connector for 10Base-T or 100BASE- TX unshielded twisted pair connection;... -
Page 19: Network Protocols
3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide Network Protocols Ethernet Frame Types: 802.2, 802.3, Ethernet II, SNAP (auto- switching) Transport Protocols: IPX/SPX, TCP/IP, NetBEUI, AppleTalk/EtherTalk TCP/IP Protocols Supported: BOOTP, SNMP, Telnet, T FTP, FTP, lpd, RARP, DHCP Management and Diagnostics Standard: SNMP MIBs: MIB-II (RFC 1213) - Page 20 Humidity: 5% to 95% non-condensing Emissions: FCC Class A, CISPR 22 Class A, VCCI Class 1, Safety: UL (UL 1950), CSA (CSA950), TUV/GS (EN60950) Product Specifications...
-
Page 21: Parallel Ports
3 Parallel Port Multiprotocol Fast Ethernet Print Server User’s Guide This appendix shows the pinouts of the Print Server parallel port connector. Parallel Ports The following table lists the pinouts of the print server’s 25-pin parallel port connector (identical to the connector used on most personal computers), as well as the 36-pin Centronics connector used on most printers. - Page 22 25-pin Centronics 18-25 16, 17, 19-30 Signal Source PError Printer Select Printer nAutoFd Host nFault Printer nInit Host nSelectIn Host Ground Port Pinouts...
