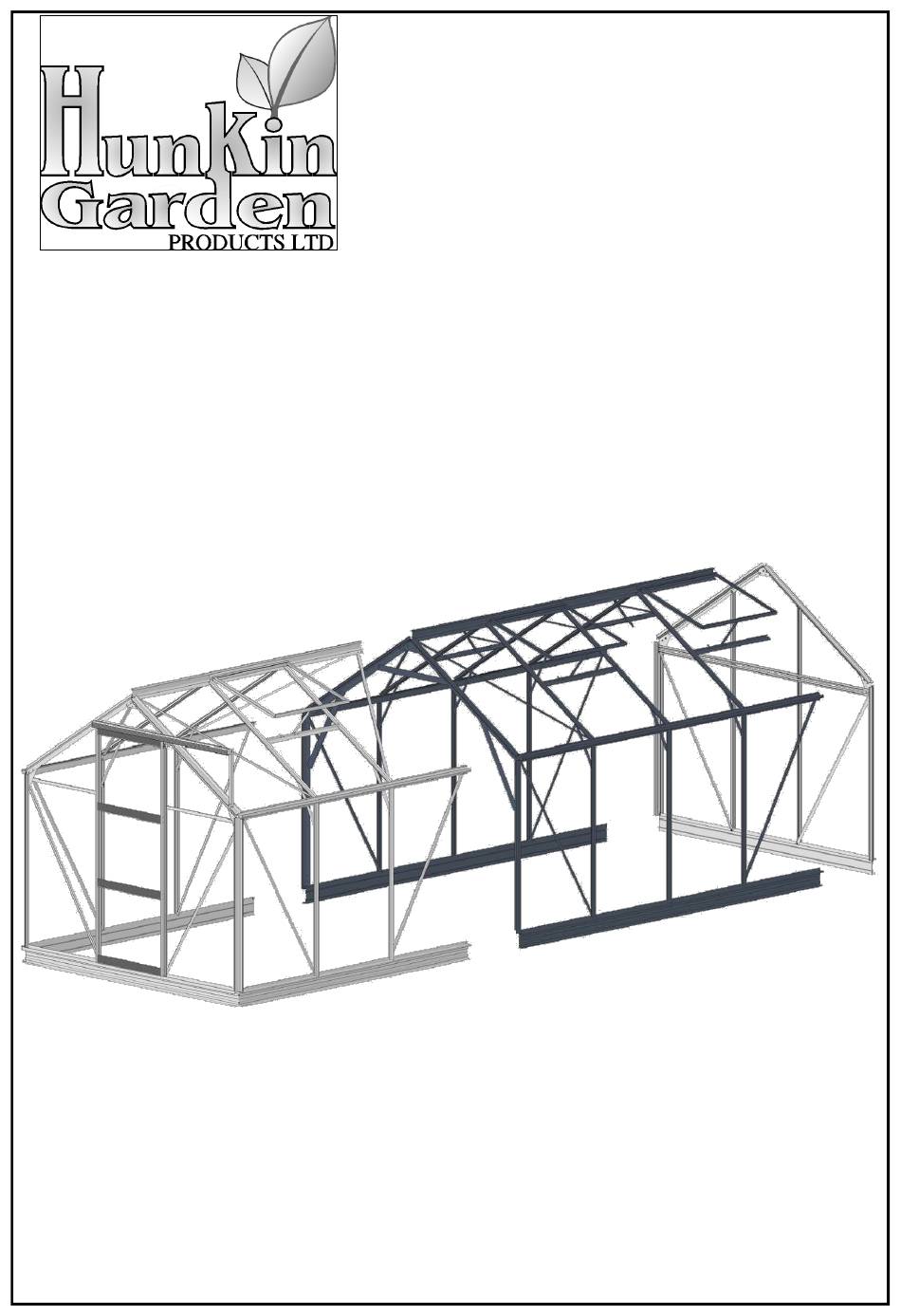

- Page 1 Ph 0800 14 48 65 Titan7x9 Extension ASSEMBLY INSTRUCTIONS To be used in conjunction with the Titan 79 assembly instructions.
-
Page 2: Parts List
Parts list A-FRAME mm 1535 1198 1160 1500 650 M6X10 M6X15 Side Wall Roof 634 666 672 714 753 702 682 715 751 mm 2776 1535 2776 1675 400 mm 2776 1198 1375 400 M6X10 M6X10 4 Vents 541 551 531 521 051 201 a1 p3 p10 mm 707 678 601 724 M6x10... - Page 3 IMPORTANT: Adding an extension must only be done on a windless day. Start with your completed greenhouse. To add an extension unit disconnect the complete rear gable, together with the base. Put them aside for re-attachment later.
- Page 4 Model Side profiles Anchor leg Fixing tab Bolts/nuts Crop bolts Extending the base Width Length 2125 5625 one Titan709 + one HB7’ Extension 2125 8401 one Titan709 + two HB7’ Extension crop bolts/a2 Base First extend the aluminium base as shown above.
- Page 5 A-frame Layout The A frame needs to be fitted to the original greenhouse. You need two side glazing bars (666) and two side bar braces (694). First insert three 15mm bolts into the channel on the back of the glazing bar. Locate these bolts with the holes on the short flange on the side bar brace(694) and with them equally spaced lightly tighten.
- Page 6 A-frame Layout front view rear view...
- Page 7 A-frame Layout a1/a2 a8/a2 a1/a2...
- Page 8 A-frame Layout a8/a2 a1/a2 a8/a2 a1/a2 a1/a2...
- Page 9 Main Building With Extension Assembly 6. You now need to have the rear gable in place (remember the rear gable has to go the right way around). Once the rear gable is in place the extension ridge can be attached (Image E). Fit this in exactly the same way as the main building’s ridge, making sure the ridge sits on top of the ridge extension bracket.
- Page 10 Main Building With the Extension Assembly a1/a2 a1/a2 a1/a2...
