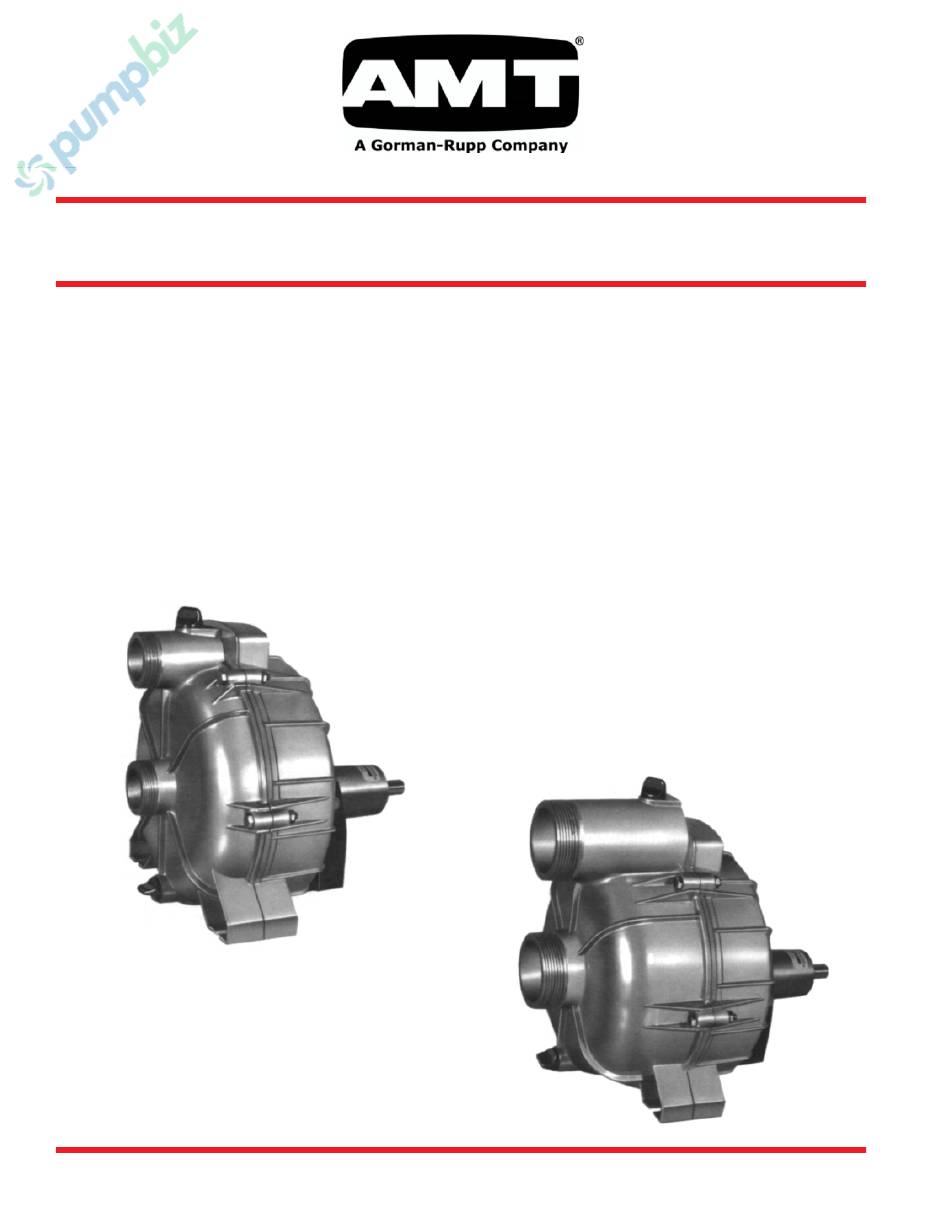

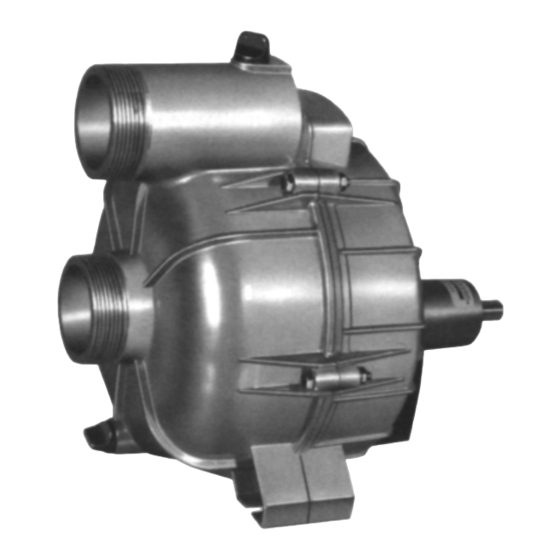

- Page 1 Models: 1.5G2P, 2G3P ..Owner’s Manual 2G5P, 2P5P, 3G5P OPERATION AND MAINTENANCE OF SELF-PRIMING CENTRIFUGAL PUMPS GENERAL PURPOSE & HIGH PRESSURE PEDESTAL DRIVE...
- Page 2 DO NOT USE PUMP IN EXPLOSIVE ATMOSPHERE WARNING!! DO NOT PUMP VOLATILE OR FLAMMABLE LIQUIDS Installation & Operating Instructions Self-Priming Centrifugal Pump BASIC PUMP INSTRUCTIONS the pump. If hoses are used, they should have adequate support to secure them when filled with INSPECTION: The pump assembly was tested and liquid.
- Page 3 casing has evaporated. Once the pump casing has been filled, the pump will prime and reprime as necessary. To fill the pump, remove the pump casing fill plug at the top of the casing and add clean liquid until the pump is filled. Replace the fill plug before operating the pump.
- Page 4 TROUBLES AND THEIR CURES If difficulties are experienced, in the majority of cases they can be traced to well-known causes. We suggest you check these points first to save needless expense. If the pump fails to prime: (A) Make sure the pump casing is full of cool liquid.
-
Page 6: Parts List
PARTS LIST FOR 5/8” THREADED SHAFT ENGINES REF # PART NAME 1.5G2P 2G3P 2G5P 3G5P 2P5P PEDESTAL 35-320-A 35-320-A 35-320-A 35-320-A 35-320-A (COMPLETE ASSY) 2 STD IMPELLER 2-181 2-109 2-141 2-107 2-124 2 ALT IMPELLER-BRONZE 2-124-B SEALING WASHER 16-233-1 16-233-1... - Page 7 Discharge Suction FOR 3/4” KEYED SHAFTS 2G3KP 2G5KP 3G5KP How To Order Repair Parts For Your Self-Priming Centrifugal Pump 35-320-C 35-320-C 35-320-C 2-140 2-142 2-172 All parts shown on the parts list and on the exploded view drawing may be ordered through the nearest 16-233-1 16-233-1 16-233-1...
-
Page 8: Repair And Maintenance Instructions
DO NOT USE PUMP IN EXPLOSIVE ATMOSPHERE WARNING!! DO NOT PUMP VOLATILE OR FLAMMABLE LIQUIDS Installation & Operating Instructions Self-Priming Centrifugal Pump REPAIR AND MAINTENANCE Use a short piece of pipe that fits on the small flange of the seal case so that you are not INSTRUCTIONS: pressing on the delicate, finely finished, carbon seal ring. - Page 9 Specifications Information and Repair Parts Manual NOTES:...
- Page 10 Specifications Information and Repair Parts Manual NOTES:...
