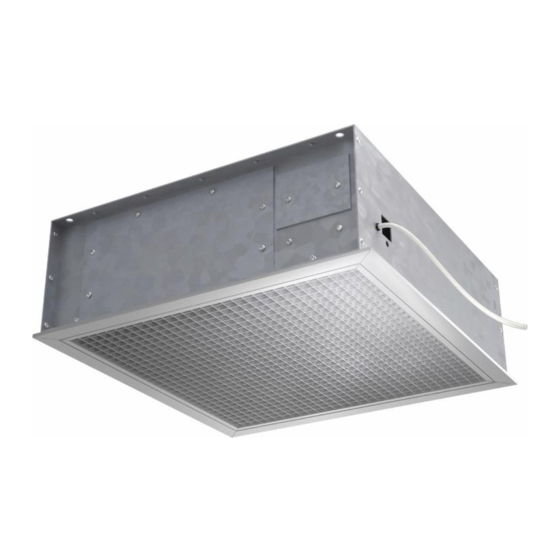

Ceiling Level Fan Convector
Suitable for Installation within a ceiling void
User Information:
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision
A means for disconnection from the supply mains having a contact
separation in all poles that provides full disconnection under overvoltage
category III conditions must be incorporated in the fixed wiring in
accordance with the wiring rules.
Ensure that the fan convector is switched-off before opening the cover.
CASPIAN SKYLINE
CT60 EC
Installation & User Guide
®
Advertisement
Related Manuals for Smiths CASPIAN SKYLINE CT60 EC
Summary of Contents for Smiths CASPIAN SKYLINE CT60 EC

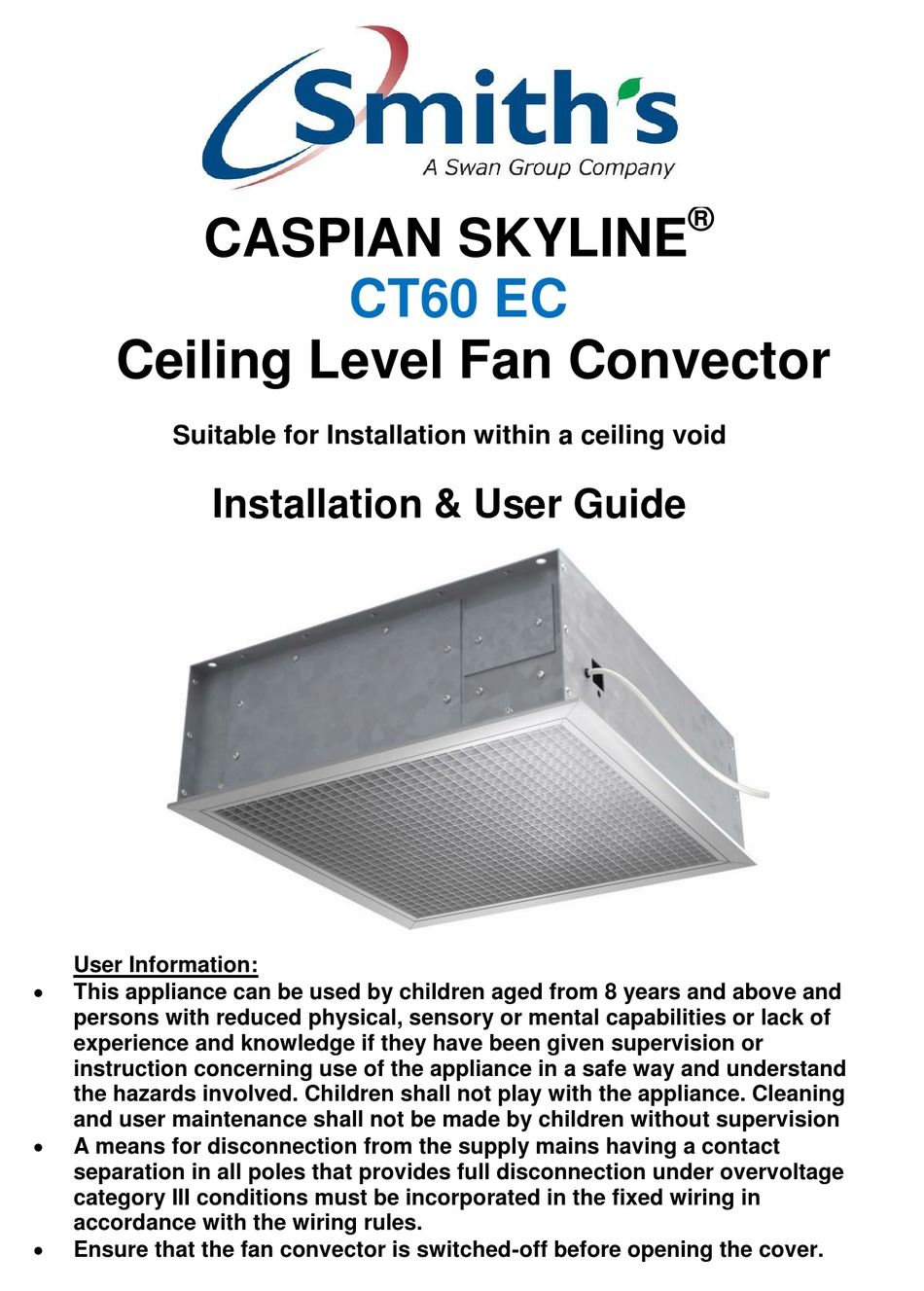

- Page 1 ® CASPIAN SKYLINE CT60 EC Ceiling Level Fan Convector Suitable for Installation within a ceiling void Installation & User Guide User Information: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 2 Introduction This heater is designed to be installed into suspended T-bar and plasterboard ceilings (The minimum height of the void into which the unit will be installed should be a minimum of 250mm). User Information: This heater must not be installed in wet rooms or other high humidity areas. This heater is designed for use on standard two-pipe pumped central heating systems with a maximum water temperature of 86°...
- Page 3 Preparation The following items should be included in the carton: ® Caspian Skyline CT60 EC unit. Grille. Installation & User Guide. X4 No 8 Screws. Other items required for a successful installation: Three core mains cable. ...
- Page 4 Installation into a plasterboard ceiling HANGING HANGING BOLT BOLT HEATER UNIT Figure 3 PLASTER- PLASTER- BOARD BOARD GRILLE Note: Access to the ceiling void, other than the heater cut-out must be available for installation for plumbing, electrical connection and maintenance. Cut a square hole 575mm x 575mm into the plasterboard and ensure that any obstructions are a minimum of 210mm away from the heater.
- Page 5 Plumbing connection Pipe connections to the heat exchanger should be made using 22mm pipe and fittings, Isolating valves should be fitted to ensure the product is serviceable in the future. It is advisable to use flexible hoses to reduce vibration (available as an accessory, see page 7). An air vent must also be fitted to the system pipework above the highest point of the product.
- Page 6 Commissioning Ensure the central heating system is ON. Providing the water temperature in the central heating system is more than 35°C and the thermostat (if fitted) is calling for heat the product will switch on. 1) Turn on the electrical supply to the unit at the fused spur. 2) Turn on the central heating system.
- Page 7 Optional Accessories Optional accessories are available to offer additional control or functionally not offered by the heater in its standard configuration. Electrical Accessories External Control Harness EXTCH Allows for the standard unit controller to be relocated externally from the heater. Adjustable low temperature cut-out UVCALTC T3 This enables the end user to precisely select the temperature at which the fans will switch on when...
-
Page 8: Guarantee Statement
Guarantee Statement Thank you for purchasing a Smith’s heater. It has been designed and manufactured to the highest quality standards to ensure it gives you efficient and trouble-free service for many years. To back up our commitment, included with your product is a free five year parts and labour guarantee (excludes filters if fitted). - Page 9 Room Installed (e.g. Kitchen): ………………………………………………………………………………….. Product Your details will only be held by Smiths Environmental Products Ltd and used solely to provide customer services and product information. If you do not wish to be contacted, please put an x in the box.
- Page 10 Accessories For a full list of optional extras and accessories for you product please see Page 7. To order accessories or spares please contact either your supplier or Smith’s Environmental Products Ltd. ® Technical designation: Caspian Skyline CT60 EC Products with this symbol (crossed out wheelie bin) cannot be disposed as household waste. Old electrical and electronic equipment must be recycled at a facility capable of handling these products and their waste by-products.
