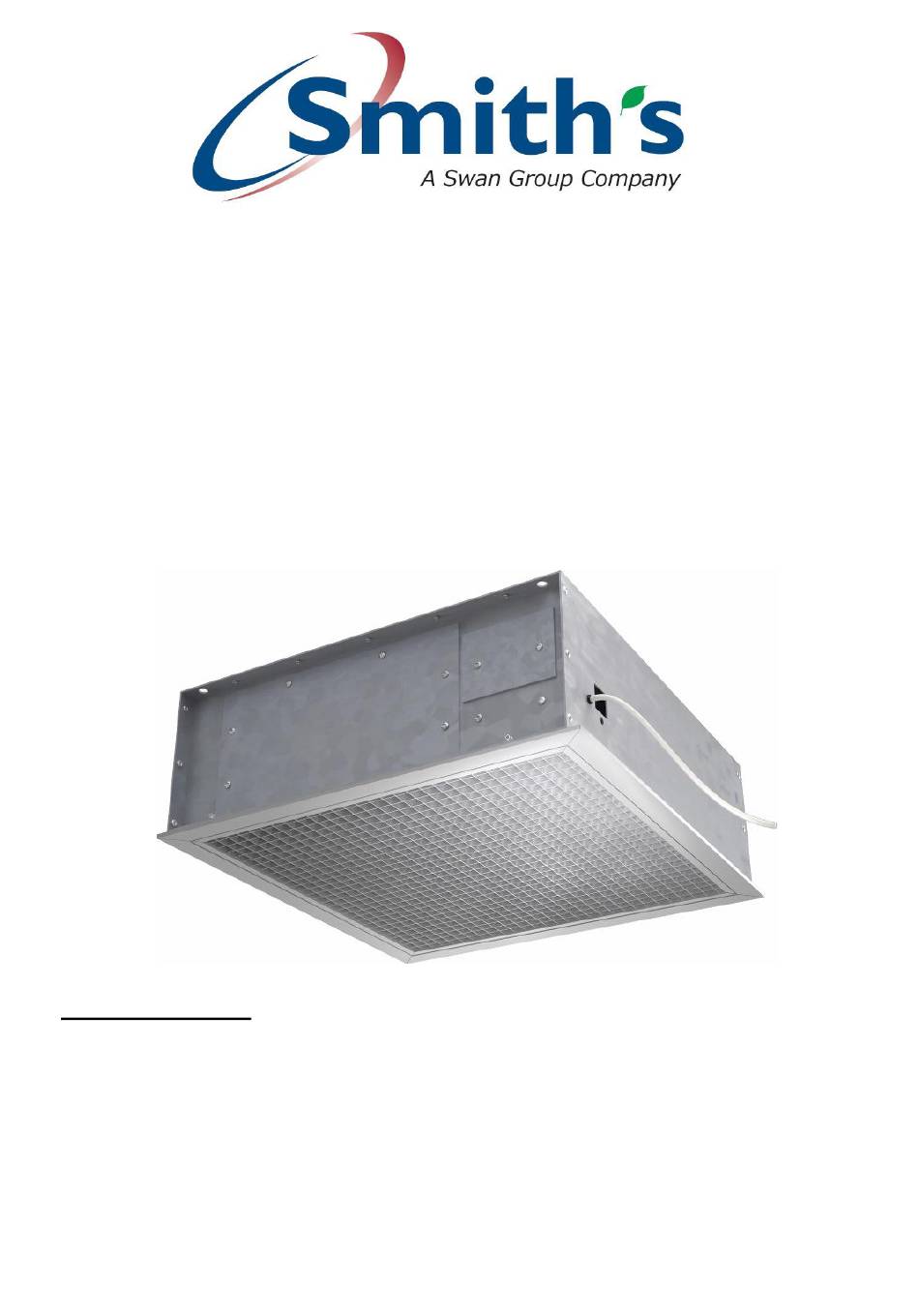

Ceiling Level Fan Convector
Suitable for Installation within a ceiling void
User Information:
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision
A means for disconnection from the supply mains having a contact
separation in all poles that provides full disconnection under overvoltage
category III conditions must be incorporated in the fixed wiring in
accordance with the wiring rules.
Ensure that the fan convector is switched-off before opening the cover.
CASPIAN SKYLINE
CT60 AC
Installation & User Guide
®
Advertisement
Related Manuals for Smiths CASPIAN SKYLINE CT60 AC
Summary of Contents for Smiths CASPIAN SKYLINE CT60 AC
- Page 1 ® CASPIAN SKYLINE CT60 AC Ceiling Level Fan Convector Suitable for Installation within a ceiling void Installation & User Guide User Information: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 2 Introduction This heater is designed to be installed into suspended T-bar and plasterboard ceilings (The minimum height of the void into which the unit will be installed should be a minimum of 250mm). User Information: This heater must not be installed in wet rooms or other high humidity areas. This heater is designed for use on standard two-pipe pumped central heating systems with a maximum water temperature of 86°...
- Page 3 Preparation The following items should be included in the carton: ® Caspian Skyline CT60 AC unit. Grille. X4 M5 Screws. Other items (Not included) required for a successful installation: Three core mains cable. Isolating valves (Failure to fit isolating valves may mean that the product is not serviceable in the event of failure).
- Page 4 Installation into a plasterboard ceiling HANGING HANGING BOLT BOLT HEATER UNIT Figure 3 T-BAR T-BAR TILE TILE ADJUSTABLE BRACKETS GRILLE FIXINGS PUNCHED GRILLE Note: Access to the ceiling void, other than the heater cut-out must be available for installation for plumbing, electrical connection and maintenance. Cut a square hole 575mm x 575mm into the plasterboard and ensure that any obstructions are a minimum of 210mm away from the heater.
- Page 5 ( 01245) 324900 / 324422 DRAWN BY : DB ALL BEND ANGLES 90° CapianSkylineAC 1 THIS DRAWING IS PROPERTY OF SMITHS ENVIRONMENTAL AC WIRING DIAG DRG No S MITHS E NV IRONME NTA L P RODUCTS LTD T HIRD ANGLE...
- Page 6 Commissioning Ensure the central heating system is ON. Providing the water temperature in the central heating system is more than 35°C and the thermostat (if fitted) is calling for heat the product will switch on. 1) Turn on the electrical supply to the unit at the fused spur. 2) Turn on the heating system.
- Page 7 Optional Accessories Optional accessories are available to offer additional control or functionally not offered by the heater in its standard configuration. Electrical Accessories Wall Switch Kit CT60AC WSC Allows an on/off wall switch to be mounted on the wall to control heater. Suitable cable to connect the switch from the heater to the switch is not supplied.
-
Page 8: Guarantee Statement
Guarantee Statement Thank you for purchasing a Smith’s heater. It has been designed and manufactured to the highest quality standards to ensure it gives you efficient and trouble-free service for many years. To back up our commitment, included with your product is a free five year parts and labour guarantee (excludes filters if fitted). - Page 9 Room Installed (e.g. Kitchen): ………………………………………………………………………………….. Product Your details will only be held by Smiths Environmental Products Ltd and used solely to provide customer services and product information. If you do not wish to be contacted, please put an x in the box.
- Page 10 Accessories For a full list of optional extras and accessories for you product please see Page 7. To order accessories or spares please contact either your supplier or Smith’s Environmental Products Ltd. Technical designation: Caspian Skyline ® CT60 AC Products with this symbol (crossed out wheelie bin) cannot be disposed as household waste. Old electrical and electronic equipment must be recycled at a facility capable of handling these products and their waste by-products.
