A Leader in Patient Communication
®
Solutions
Scope:
To install a bottom mount DVD bracket to a 24" wall mounted metal LED TV using a PD168-103 wall
mount kit (Not Included).
Tool List:
1. Safety glasses/goggles
2. P1 or P2 Phillips screwdriver
Safety Steps:
1. Always wear safety glasses/goggles to prevent injury from debris.
2. Follow the installation/removal instructions for your existing products.
Supplied Parts List:
ITEM QTY PART NUMBER
1
1
PD181-820
2
1
PDISEMSM3X55
3
4
PDIPPHMSM4X710
4
1
PD106-776R
PROCEDURE:
This bracket is a new design. The DVD player must be securely attached to the bracket
before attaching the bracket to the TV assembly or the DVD player will fall.

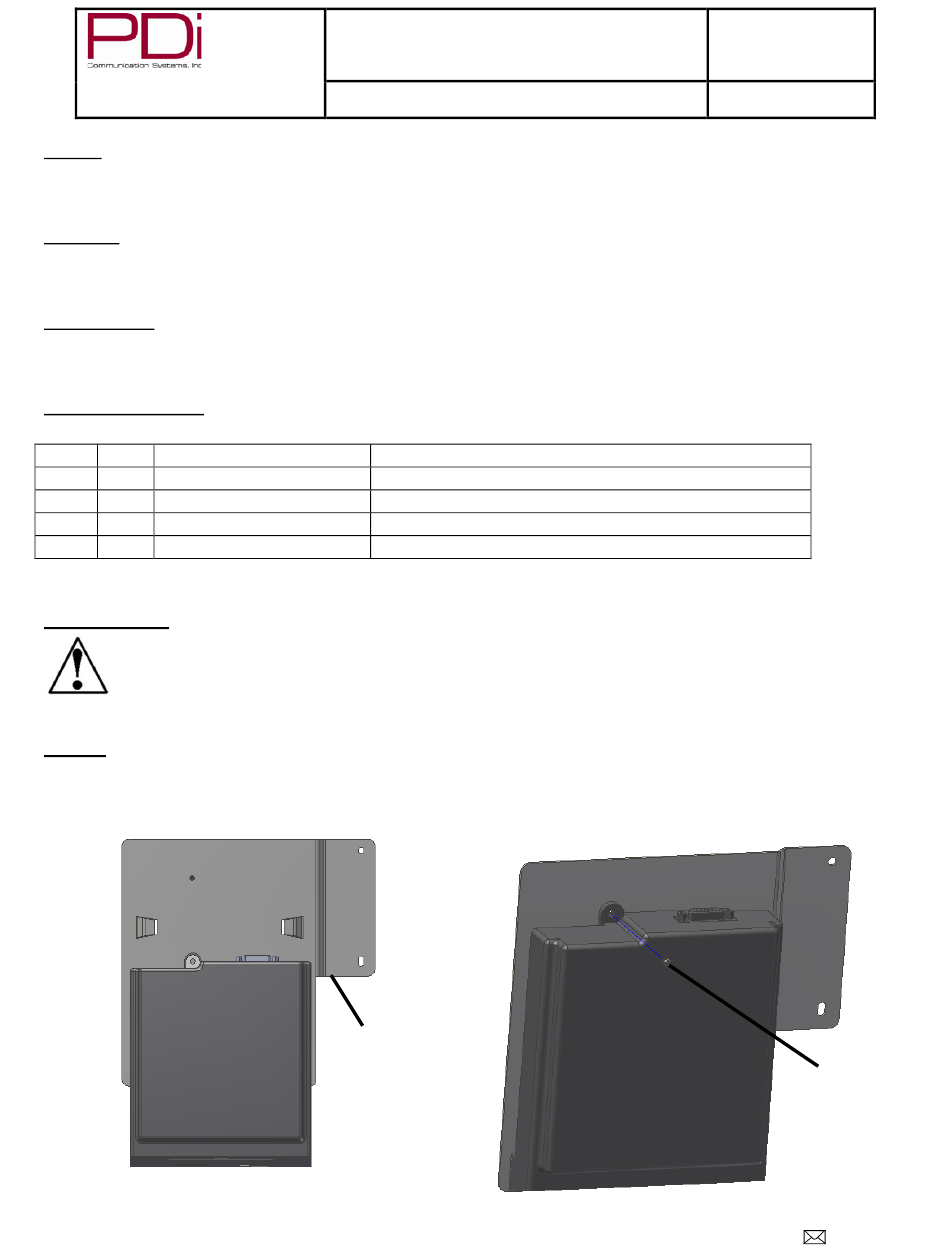

Step 1:
Slide DVD player (purchased separately) through tabs on DVD mounting bracket PD181-820 (1) as
shown. Secure with PDISEMSM3X55 screw (2).
DVD
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
MODEL NUMBER:
PD251-046 Bottom Mount DVD
Bracket for 24" Metal LED TV
Installation Instructions
DESCRIPTION
DVD Mounting Bracket
M3-.5 PPHMS Screw
M4X.7X10MM Screws
15 to 26 pin cable
1
Document Number:
PD196-343R2
Page 1 of 2
2
