A Leader in Patient Co mmunica tion
Solutions™
SCOPE:
TO MOUNT A TV USING A PDI PD168-226 ARTICULATING WALL MOUNT KIT.
TOOL LIST
1.
P1 OR P2, PHILLIPS SCREW DRIVER
2.
SAFETY GLASSES/GOGGLES
3.
LEVEL
SAFETY STEPS:
1.
ALWAYS WEAR SAFETY GLASSES/GOGGLES TO PREVENT INJURY FROM DEBRIS.
2.
FOLLOW THE INSTALLATION/REMOVAL INSTRUCTIONS FOR YOUR EXISTING PRODUCTS.

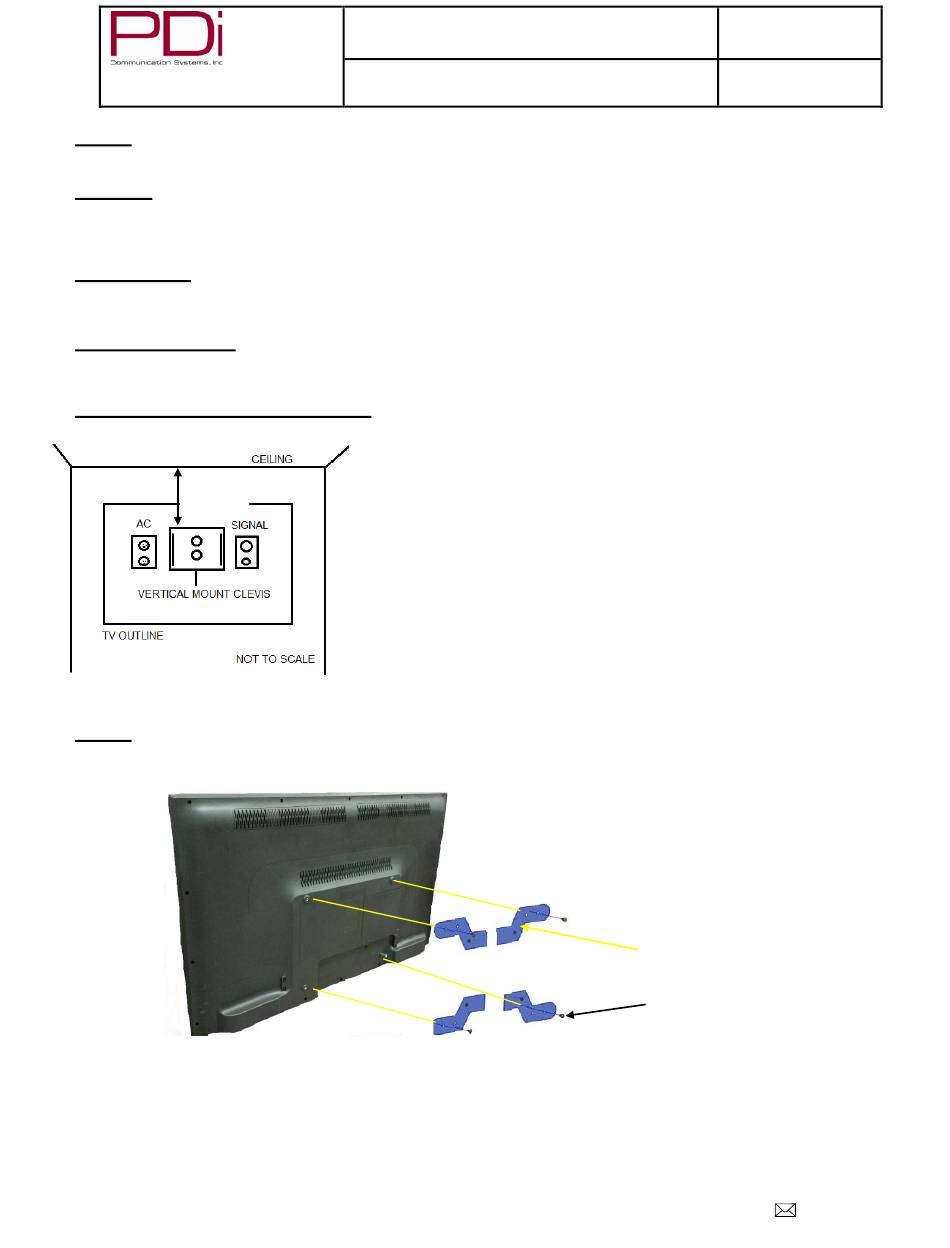

MOUNTING DISTANCE
16.6" MINIMUM FROM CLEVIS TO CEILING FOR 50" PLASTIC LED TV.
PROCEDURE TO MOUNT AN E50 LED TV:
16.6"
STEP 1:
ATTACH THE (4) PD181-825 MOUNTING BRACKETS (#1) TO THE BACK OF THE E50 LED TV USING FOUR
PDIPPHMSM6X110 SCREWS (#3).
PDi Communica tion Sys tems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
MODEL NUMBER:
PD168-229
50" TV Wall Mount Kit Installation Instructions
Document Number:
PD196-369R1
Page 1 of 2
1
3
9
