PDi PD251-033 Installation Instructions

Better Solutions Are Within Reach

Scope:

To install a side mount DVD bracket to a 24" wall mounted LED TV using a PD168-103 wall mount kit
(Not Included). These mounts may be installed to the left or right side of the TV's

Tool List:

1. Safety glasses/goggles
2. P1 or P2 Phillips screwdriver

Safety Steps:

1. Always wear safety glasses/goggles to prevent injury from debris.
2. Follow the installation/removal instructions for your existing products.

Supplied Parts List:

ITEM QTY PART NUMBER
1 1 PD181-774
2 4 PDIPPHMSM4X710
3 1 PDISEMSM3X55
4 1 PD106-775

PROCEDURE:

The DVD player must be securely attached to the bracket before attaching the bracket to
the TV assembly. The DVD player will fall if not attached to bracket.

Step 1:

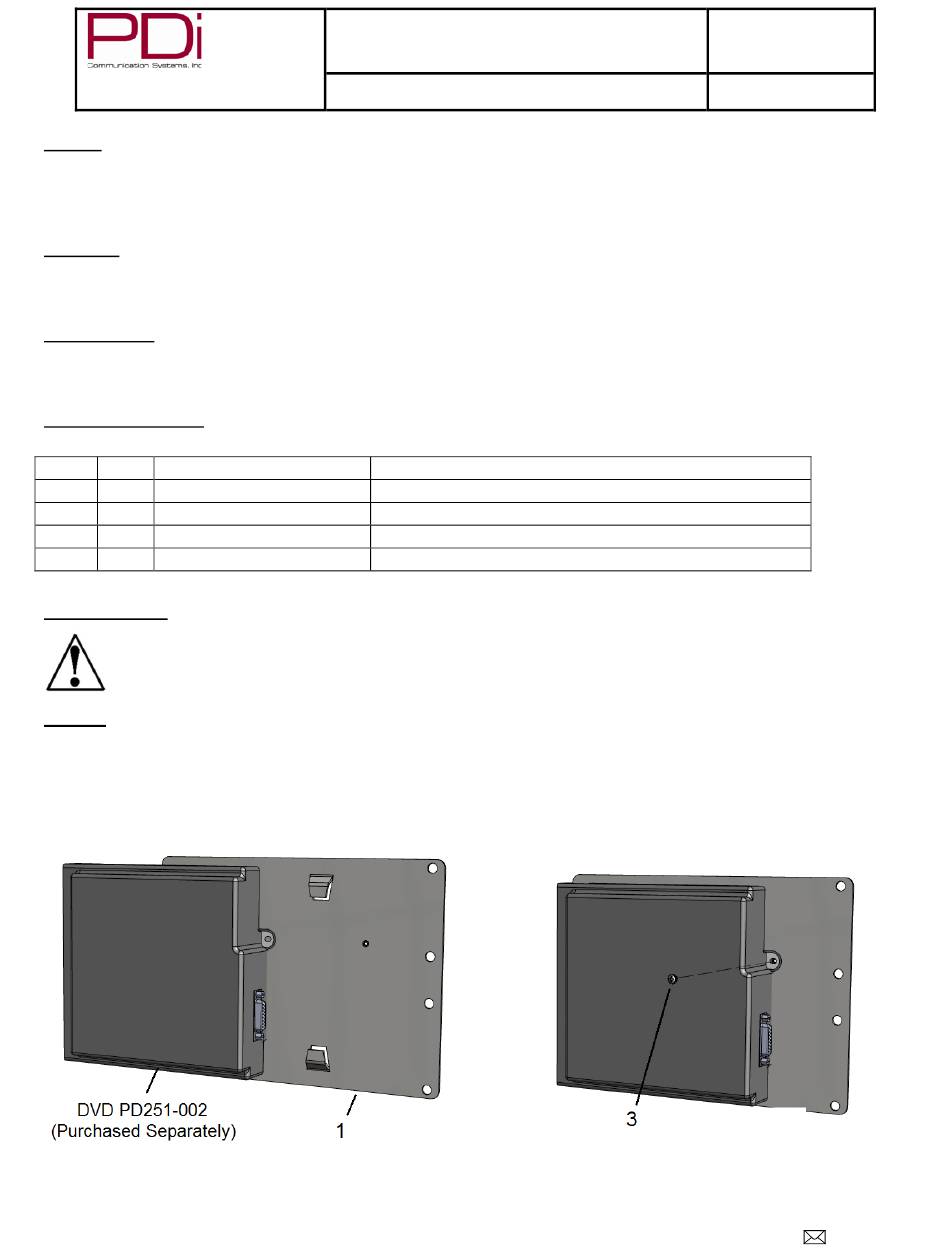

Slide DVD player (purchased separately) through tabs on DVD mounting bracket PD181-774 (1) as
shown. Secure with PDISEMSM3X55 (3) screw.
