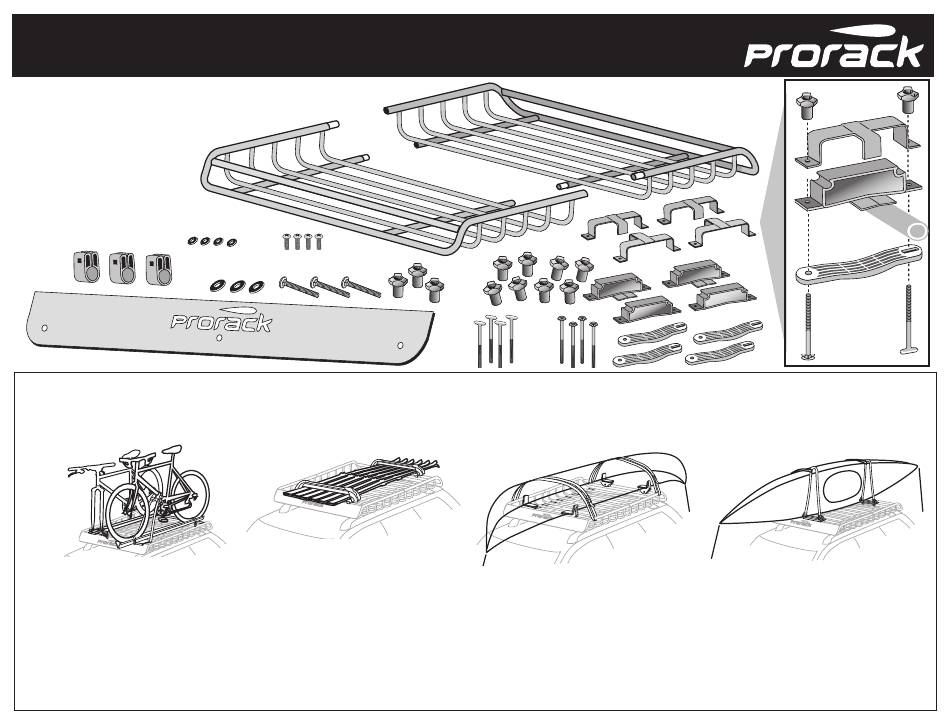

VOYAGER TRAY
RECOMMENDED TOOLS:
Phillips screwdriver
Tapemeasure or ruler
(4x)
(3x)
(3x)
(1x)
Carry gear in the basket, and attach accessories directly to the Voyager
(using accessory instructions).
With a crossbar spread of 24-29" (61cm-74cm), you may carry bikes, skis, or
kayaks, provided you do not exceed the recommended weight limit for your
vehicle.
• To determine the crossbar spread on your rack, measure between the
crossbars.
Page 1 of 5
1033885B
(2x)
(4x)
(3x)
(11x)
(4x)
(4x)
(4x)
(4x)
PR3102 Rev2
Advertisement
Table of Contents
Related Manuals for Prorack VOYAGER TRAY
Summary of Contents for Prorack VOYAGER TRAY
- Page 1 VOYAGER TRAY RECOMMENDED TOOLS: Phillips screwdriver (2x) Tapemeasure or ruler (4x) (4x) (4x) (4x) (3x) (3x) (3x) (11x) (4x) (4x) (1x) Carry gear in the basket, and attach accessories directly to the Voyager (using accessory instructions). With a crossbar spread of 24-29” (61cm-74cm), you may carry bikes, skis, or kayaks, provided you do not exceed the recommended weight limit for your vehicle.
- Page 2 •IF YOU HAVE FIXED BARS: •IF YOUR BARS MOVE: BARS THAT CANNOT MOVE… IF YOU HAVE BARS THAT CAN BE MOVED… Move the bars to 30” (76cm) apart. Continue to STEP TIGHTEN YOUR CROSSBARS IF YOU LOOSENED THEM. ASSEMBLE Insert screws with Remove the machine screws from THE BASKET. washers into each the ends of the Voyager tubes.
- Page 3 POSITION THE COVER BRACKETS. POSITION THE SUPPORT BRACKETS KEEP BAR ABOVE YOUR VEHICLE’S CROSSBARS. Position cover bracket onto installed BELOW TAB! support brackets. • Place the brackets Hooked tab should cover the larger OUTSIDE of the basket support bar. frame. • Tabs on brackets must face INBOARD.
- Page 4 LOAD LIMITS: DO NOT EXCEED YOUR RACK’S weight limit! ▲ 25 lbs. ▲ (11 kg) basket contents DO NOT EXCEED BASKET CONTENT WEIGHT LIMIT: 140 LBS. (63 KG) Always tie down long loads at front and rear. DISTRIBUTE YOUR LOAD EVENLY INSIDE RECHECK ALL FASTENERS AFTER A LOAD THE BASKET. HAS BEEN APPLIED. CHECK REGULARLY ON LONG JOURNEYS Page 4 of 5...
- Page 5 Yakima. The costs and expenses associated with making a claim under your warranty including the costs of complying with those instructions and of returning the product to Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the warranty period, by replacing or repairing any defective product or component (at its option) free of charge to the purchaser in respect of replacement parts or labour.
