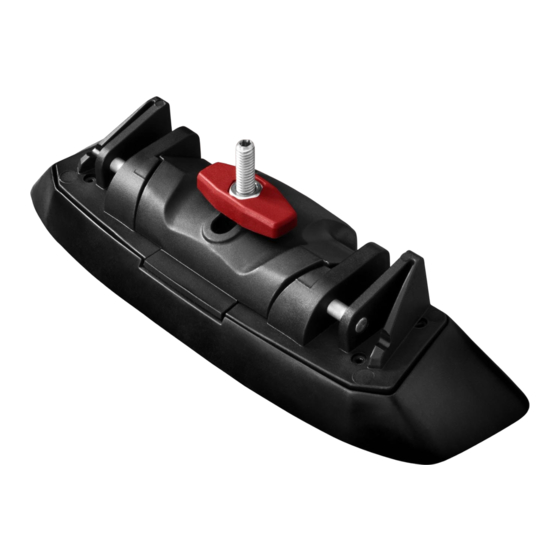

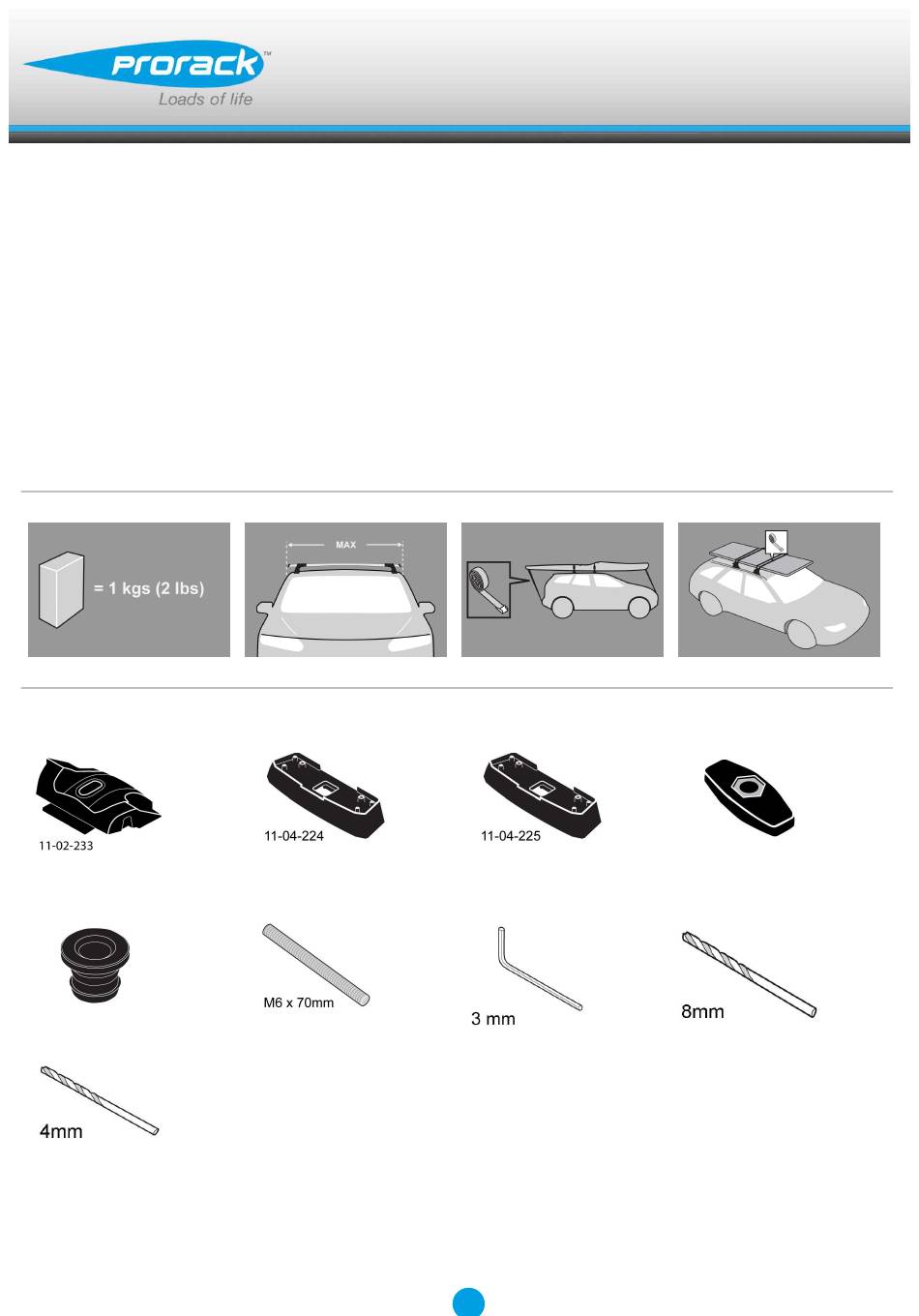

- Page 1 K1004 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K1004 MAX kgs (lbs) Fiat 500X, 5dr Hatch 15-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 500X, 5dr Hatch 15-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 500X, 5dr Hatch 15-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K1004 500X, 5dr Hatch 15-+ (AU) -210mm 515mm 850mm 810mm -8 -1/4ths" 20 1/4ths" 33 7/16ths" 31 7/8ths" 500X, 5dr Hatch 15-+ (EU) -210mm 515mm 850mm 810mm -8 -1/4ths" 20 1/4ths" 33 7/16ths" 31 7/8ths" 500X, 5dr Hatch 15-+ (ZA)
-
Page 4: First Time Installation
Fitting Kit K1004 Items you will require: Tape measure Cordless drill 4mm drill bit 8mm drill bit Masking tape First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. - Page 5 Fitting Kit K1004 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K1004 Attaches to factory-fitted mounting points Please check the front of this manual for information relating specifically to your vehicle. Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment. Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight.
- Page 7 Fitting Kit K1004 Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Fitment Locate ditch mouldings on roof. Measure from the front of the ditch mould. A = 465mm (18 1/4") B = 1210mm (47 5/8")
- Page 8 Fitting Kit K1004 Apply masking tape to ditch in all four positions. Mark reference point on masking tape with a pen. A = 465mm (18 1/4") B = 1210mm (47 5/8") Mark reference point on masking tape with a pen.
- Page 9 Fitting Kit K1004 Carefully remove centre section of ditch mould with flat-head screwdriver. Locate vehicle's fixed points. Position as shown.
- Page 10 Fitting Kit K1004 Use the 4mm drill bit (supplied), to drill holes in marked positions. Use the 8mm drill bit (supplied), to drill holes in marked positions. Repeat for all four positions. Vacuum and clean swarf from channel. Re-install rubber ditch mould in roof channel.
- Page 11 Fitting Kit K1004 Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Pad Part Number: A = 224 B = 225 Place crossbars on pads ensuring the pads...
- Page 12 Fitting Kit K1004 Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 13 Fitting Kit K1004 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 14: Maintenance
Fitting Kit K1004 Maintenance Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. - Page 15 Fitting Kit K1004 Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting instructions. This is especially important when carrying long loads. Check unit is securely attached whenever you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust.
-
Page 16: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 17 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
