CYP XA-3P Operation Manual

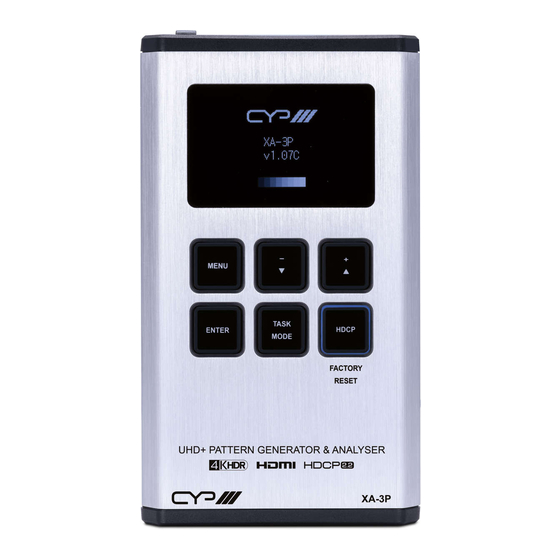

Portable hdmi pattern generator, analyser & cable tester (4k, hdcp2.2, hdmi2.0)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XA-3P
Portable HDMI Pattern Generator, Analyser & Cable Tester
(4K, HDCP2.2, HDMI2.0)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XA-3P and is the answer not in the manual?

Questions and answers

Related Manuals for CYP XA-3P

Summary of Contents for CYP XA-3P

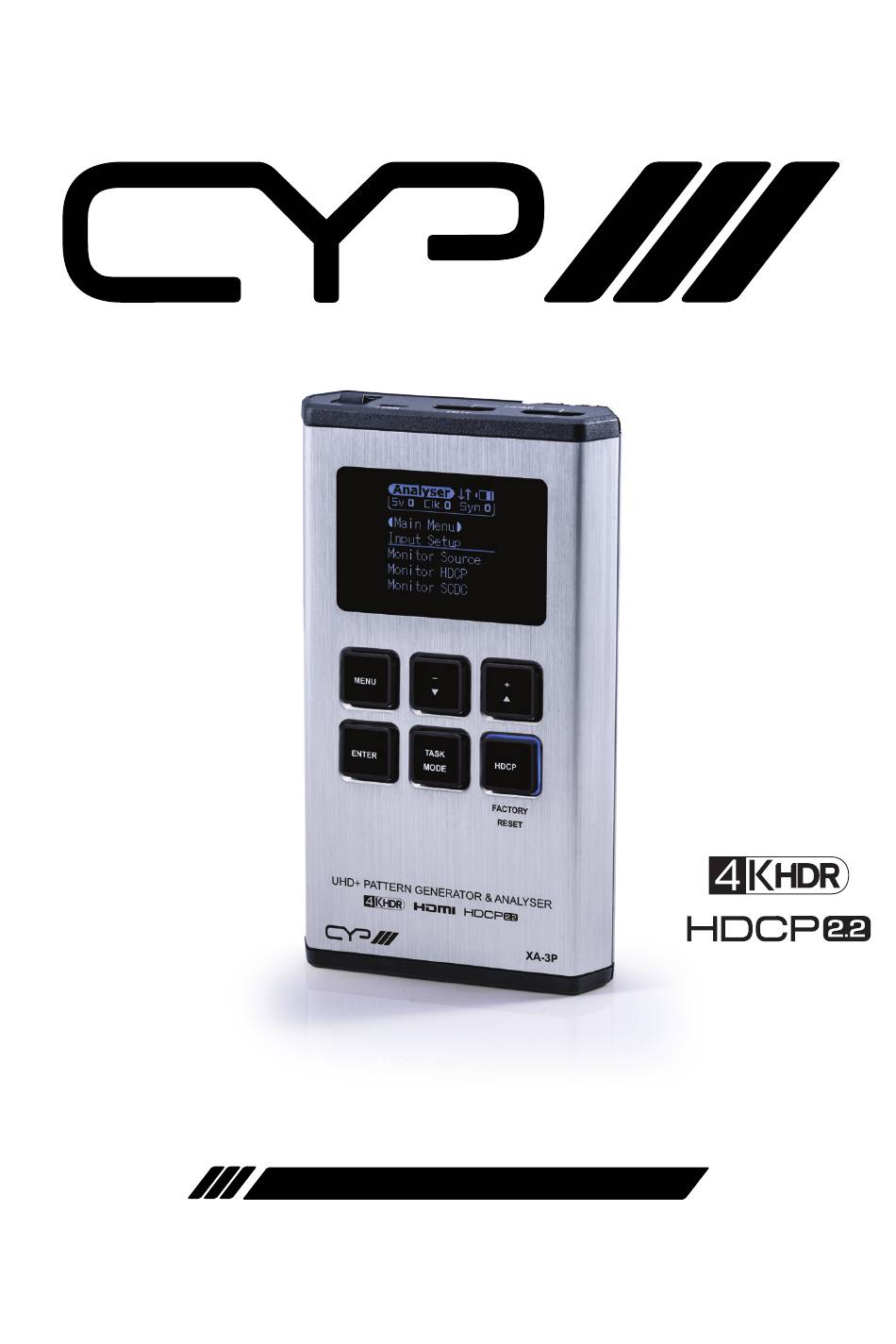

  • Page 1 XA-3P Portable HDMI Pattern Generator, Analyser & Cable Tester (4K, HDCP2.2, HDMI2.0) OPERATION MANUAL...
  • Page 3 CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........6 2. Applications ..........6 3. Package Contents ......... 6 4. System Requirements ........6 5. Features ............6 6. Operation Controls and Functions ....8 6.1 Front Panel ............8 6.2 Top Panel ..............10 6.3 Battery Compartment ........11 6.4 OLED Display ............12 6.5 OSD Menu ............13 6.6 RS-232 Protocol ..........31...

  • Page 6: Introduction

    1. INTRODUCTION This portable HDMI Signal Generator & Analyser provides a convenient way to test and verify all aspects of an HDMI signal path, including source and sink. This unit complies with the HDMI 2.0a and HDCP 1.4/2.2 standards. The unit’s Analyser mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3 for EDID analysis.

  • Page 7: Features

    5. FEATURES HDMI input and output with 18Gbps (600MHz) 4K UHD support DVI 1.0 compliant with the use of an HDMI-DVI adaptor HDCP 1.4 and 2.2 compliant Supports HD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit) Source bypass support in Analyser mode 4K sources can be scaled down to 1080p in Analyser mode to support a wider range of displays when analysing a high-bandwidth source HDR bypass and analysis support...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU TASK ENTER HDCP MODE FACTORY RESET OLED: This screen’s layout changes depending on the unit’s operational mode and selected function. The status lines at the top shows the unit’s current operational mode (Analyser, Pattern, or Cable Test), USB port mode (power or control), power status, and mode-specific detection details.
  • Page 9 Analyser Mode: The status line will display the 5V, TMDS clock, and sync detection state of the connected source. (1 = detected, 0 = not detected.) Analyser  5V. 0 Clk. 0 Syn. 0 Main Menu Input Setup Monitor Source Monitor HDCP Monitor SCDC Pattern Mode: The status line will display the RxSense and Hot-plug...

  • Page 10: Top Panel

    TASK MODE: Press to switch the unit between Analyser Mode, Pattern Mode, and Cable Test Mode. Note: In Analyser mode, press and hold this button for 2 seconds to toggle the input’s hot plug trigger. In Pattern mode, press and hold this button for 2 seconds to enable or disable the output’s AV Mute function.

  • Page 11: Battery Compartment

    6.3 Battery Compartment While this unit may be powered directly via the USB port, it is more typically powered by a rechargeable Lithium-ion battery (not included) which is concealed within the bottom of the unit. Opening the Compartment: Use a small flathead screwdriver to gently, but firmly, press down into the slot behind the base panel and the bottom cover will...

  • Page 12: Oled Display

    6.4 OLED Display Power Saving Mode The OLED display will automatically switch off after the set number of minutes. All other functions of the unit will continue normally while the display is turned off and the HDCP button will slowly flash red to indicate it is in power saving mode. To turn the OLED display back on, press any key.

  • Page 13: Osd Menu

    6.5 OSD Menu 6.5.1 Analyser Mode ANALYSER MODE LEVEL 1 LEVEL 2 LEVEL 3 50ms ~ 500ms (150ms) Input Setup Hotplug Time Hotplug Toggle *PoR RxSense *PoR DDC Bus *PoR HDCP Port v1.4 v1.4+v2.2 HDCP REAUTH-REQ 4K to 1080p On YCbCr Out On RGB Out *PoR SCDC Port...
  • Page 14 ANALYSER MODE LEVEL 1 LEVEL 2 LEVEL 3 Monitor HDCP (v1.4) Aksv [Analytic Data] Bksv Ri Source Ri’ Rx Count Day 0 00 : 00 : 00 Monitor HDCP (v2.2) Source HDCP [Analytic Data] Rx HDCP Port TxCaps RxCaps Receiver ID Monitor SCDC Rx SCDC Port [Analytic Data]...
  • Page 15 ANALYSER MODE LEVEL 1 LEVEL 2 LEVEL 3 Video Timing Data Rate [Analytic Data] Bit Depth, 3D, Y4:2:0, Scramble Total (H/V Total Pixel/Line) (H/V Active Pixel/Line) Polarity (H/V Sync. Polarity) Scan HFreq (H Sync. Frequency) VFreq (V Sync. Frequency) Offset1 (H/V Sync.
  • Page 16 ANALYSER MODE LEVEL 1 LEVEL 2 LEVEL 3 Packet GCP 0x03 [Analytic Data] AVI 0x82 AIF 0x84 SPD 0x83 VSIF H14b 0x81 DRMI (HDR) 0x87 EDID Analyser Sink [Analytic Data] Rx EDID [D1] DVI [Default EDID Details] [D2] VGA [D3] 8B LPCM PC [D4] 8B LPCM HD [D5] 12 BS 720p [D6] 12 BS HD 3D...
  • Page 17 ANALYSER MODE LEVEL 1 LEVEL 2 LEVEL 3 EDID Emulator [D10] 12 HBR 4K6G [Default EDID Details] [C1 ~ 10] Copy 01 ~ 10 [Copied EDID Details] EDID Copy Sink [C1 ~ 10] Copy 01 ~ 10 [Copied EDID Details] EDID Burn Sink [D1] DVI [Default EDID Details]...
  • Page 18 6.5.2 Pattern Mode PATTERN MODE LEVEL 1 LEVEL 2 LEVEL 3 Output Setup Timing [T1] 720×480p59 [T2] 720×576p50 [T3] 1280×720p25 [T4] 1280×720p30 [T5] 1280×720p50 [T6] 1280×720p60 [T7] 1920×1080i50 [T8] 1920×1080i60 [T9] 1920×1080p24 [T10] 1920×1080p25 [T11] 1920×1080p30 [T12] 1920×1080p50 [T13] 1920×1080p60 [T14] 3840×2160p24 [T15] 3840×2160p25 [T16] 3840×2160p30...
  • Page 19 PATTERN MODE LEVEL 1 LEVEL 2 LEVEL 3 Output Setup Pattern [P6] Red [P7] White [P8] Yellow [P9] Color Bar [P10] Grayscale 256 [P11] V Line OnOff Format HDMI Colourspace YUV444 Full ColourRange Limited *PoR Audio LPCM 5.1CH 7.1CH HDCP Out v1.4 v2.2 HDCP V2.2 AKE_Stored_km()
  • Page 20 PATTERN MODE LEVEL 1 LEVEL 2 LEVEL 3 Monitor HDCP Tx HDCP [Analytic Data] (Output HDCP 1.4) Sink HDCP Port Aksv Bksv Ri Tx Ri’ Sink Count Day 0 00:00:00 Monitor HDCP Tx HDCP [Analytic Data] (Output HDCP 2.2) Sink HDCP Port TxCaps RxCaps Receiver ID...
  • Page 21 PATTERN MODE LEVEL 1 LEVEL 2 LEVEL 3 Monitor SCDC ENTER Reset/Start [Analytic Data] HF VSDB SCDC Exist 0 ~ 80 (70) Audio Output Volume Sample Rate 48 kHz 96 kHz 192 kHz Word Length 16 Bits 20 Bits 24 Bits *PoR Channels SD0-L ~ SD03-L Freq.
  • Page 22 PATTERN MODE LEVEL 1 LEVEL 2 LEVEL 3 HDR Emulator AVI Colourimetry xvYCC709 sYCC601 Adobe Y601 Adobe RGB EOTF [0] SDR Lumi Range [1] HDR Lumi Range [2] SMPTE ST2084.2 [3] Future EOTF S. Metadata Type 1 Metadata Descr. Reserved 0 ~ 65500 (0) Max.
  • Page 23 6.5.3 Cable Test Mode CABLE TEST MODE LEVEL 1 LEVEL 2 LEVEL 3 Run Test [Testing Specifications] [Analytic Data] (Enter–Start/Stop) (PASS or FAIL result) Hotplug DDC Bus 4K6G A/V Normal Cable Setup Level Strict Length Time 2 minute 5 minute 10 minute 15 minute 30 minute...
  • Page 24 Factory Default Items in Bold are the factory default settings. Run Test Once the testing begins, the test progress bar and the final PASS or FAIL result shows on the 2nd page. Please press the down button to view this information. Cable Testing The cable testing feature performs tests based on the HDMI 2.0 error rate tolerance specification for 18Gbps signals and is provided as an advisory tool only.
  • Page 25 6.5.4 Test Timings 1. Output Resolutions (Pattern Mode) This unit supports a total of 23 output resolution timings when in Pattern Mode. Test Timing List 720×480p 720×576p 1280×720p 1920×1080i 1920×1080p 3840×2160p 4096×2160p...
  • Page 26 2. Input/Output Resolutions (Analyser Mode) This unit provides 3 options for how to handle the output of 4K video input sources when in Analyser mode. These choices are selectable from the “Input Setup” menu using the “4K to 1080p” item. To pass the 4K source without modification set “4K to 1080p”...
  • Page 27 Input Output Vertical Frequency PC Resolution (Hz) HDMI HDMI 1680×1050p 60 (RB), 60   1920×1200p 60 (RB)   Note: RB = Reduced Blanking. Input Output Vertical Frequency PC Resolution (Hz) HDMI HDMI 480i 59, 60   480p 59, 60 ...
  • Page 28 6.5.5 Test Patterns 1. Output Video Support (Pattern Mode) There are a total of 11 test patterns available for output when in Pattern Mode. Test Pattern Name Variations Black Blue Cyan Green Magenta White Yellow Colour Bar Grayscale 256 Line On/Off-V 1.
  • Page 29 9. Colour Bar The Colour Bar pattern is a series of repeating vertical coloured bars (white, yellow, cyan, green, magenta, red, blue, black). This pattern is not available when the output colour range is set to "Limited". 10. Grayscale 256 Gray The Grayscale 256 pattern provides a way to fine tune the contrast, brightness and grayscale tracking of your display with a full 265 step gradient progressing...
  • Page 30 2. Output Audio Support (Pattern Mode) Audio Sampling Word Length SD0~3 L/R Analog Source Rate (kHz) Channels (Bits) Freq. (Hz) Output 2.0, 5.1, 7.1 SD0~3 L/R Internal Mute, 16, 20, 24 Sinewave 200 ~ 1600 SD0 L/R...

  • Page 31: Rs-232 Protocol

    6.6 RS-232 Protocol When the unit is set to RS-232 mode in the System menu and connected to a PC via a USB cable, the following COM port settings should be used for direct control. SERIAL PORT SETTINGS Baud Rate 115200 Data Bits Parity Bits...
  • Page 32 COMMANDS DESCRIPTION VARIABLES $? Show full command list. $HELP Show full command list. $4K_TO_1080P N1 Set the 4K downscaling mode. Available values for N1: [No downscaling] ON_RGB [1080p, RGB colour] ON_YUV [1080p, YUV colour] $4K_TO_1080P? Display the current 4K downscaling mode.
  • Page 33 COMMANDS DESCRIPTION VARIABLES $AUDIO_FREQ? N1 Display the internal audio output Available Values for N1: frequency of the selected channel (in SD0_L [SD0 Left Channel] Hz). SD0_R [SD0 Right Channel] SD1_L [SD1 Left Channel] SD1_R [SD1 Right Channel] SD2_L [SD2 Left Channel] SD2_R [SD2 Right Channel] SD3_L...
  • Page 34 COMMANDS DESCRIPTION VARIABLES $CABLE_LEVEL N1 N1 = NORMAL, STRICT Set the cable test level. $CABLE_LEVEL? Display the cable test level. $CABLE_RESULT? Display the cable test result. $CABLE_RUN N1 N1 = START, STOP Start or stop the cable testing process. $CABLE_RUN? Display the cable test status.
  • Page 35 COMMANDS DESCRIPTION VARIABLES $EDID_COPY_SINK N1 N1 = C1 ~ C10 Copy the current HDMI sink’s EDID to the designated copy slot. If the copy fails “$err” will be displayed. $EDID_MANUF? N1 Available values for N1: Display the manufacturer name stored in the EDID of the selected location.
  • Page 36 COMMANDS DESCRIPTION VARIABLES $EDID_NATIVE? N1 Available values for N1: Display the native resolution value stored in the EDID of the selected [HDMI Input (Rx) Port] location. SINK_H [HDMI Sink] First detailed timing from Block 0. If the EDID fails to be read, "$err_ddc" will be displayed. If the EDID has invalid content, "$err_bad"...
  • Page 37 COMMANDS DESCRIPTION VARIABLES $EDID_TYPE? N1 Available values for N1: Display the EDID type of the selected location. [HDMI Input(Rx) Port] SINK_H [HDMI Sink] If the EDID fails to be read, "$err_ddc" will be displayed. If the EDID has invalid content, "$err_bad" will be displayed. $EDID_WRITE N1,N2 N3...
  • Page 38 COMMANDS DESCRIPTION VARIABLES $HDCP_IN_SW? Display the current HDCP support setting for the unit’s HDMI input. $HDCP_IN_VER N1 Available values for N1: Set the HDCP version to use on the unit’s HDMI input. V1.4 [HDCP v1.4 only] V1.4+V2.2 [HDCP v1.4 & v2.2] Affects Analyser mode only.
  • Page 39 COMMANDS DESCRIPTION VARIABLES $HDR_EOTF N1 Available values for N1: Set the HDR EOTF (Electro-Optical Transfer Function) mode. [Traditional Gamma, SDR Luminance Range] [Traditional Gamma, HDR Luminance Range] 2084 [SMPTE ST 2084] RSVD [Reserved for future use] $HDR_EOTF? Display the current HDR EOTF mode. $HDR_MCLL N1...
  • Page 40 COMMANDS DESCRIPTION VARIABLES $HDR_TX_COL N1 Available values for N1: Set the HDMI output (Tx) AVI Colourimetry mode. [No Data] [ITU 601] [ITU 709] [xvYCC 601] [xvYCC 709] [sYCC 601] [Adobe Y601] [Adobe RGB] [BT.2020 (1) Y' [BT.2020 (2) R'G'B'/Y'C' $HDR_TX_COL? Display the current HDMI output (Tx) AVI Colourimetry mode.
  • Page 41 COMMANDS DESCRIPTION VARIABLES $RX_DDC N1 N1 = ON, OFF Enable or disable the DDC bus for the HDMI input (Rx). $RX_DDC? Display the DDC bus state for the HDMI input (Rx). $RX_HOTPLUG N1 Available values for N1: Set the hot plug value for the HDMI input (Rx).
  • Page 42 COMMANDS DESCRIPTION VARIABLES $RX_SCDC? Display the current SCDC port state for the HDMI input (Rx). $RX_SENSE N1 N1 = ON, OFF Enable or disable the RxSense function for the HDMI input (Rx). $RX_SENSE? Display the current RxSense state for the HDMI input (Rx). $SINK_DETECT? N1...
  • Page 43 COMMANDS DESCRIPTION VARIABLES SCDC_SOURCE_VER [SCDC source version] CKDT [TMDS clock detection] DATA_RATE [Video data rate in Mbps] TMDS_FORMAT [Detected TMDS format (DVI/HDMI)] SCDT [TMDS sync detection] [Horizontal active pixels] [Horizontal back porch pixels] [Horizontal front porch pixels] [Horizontal sync width pixels] [Total horizontal pixels] [Horizontal sync polarity] HVS_OFFSET1...
  • Page 44 COMMANDS DESCRIPTION VARIABLES [Display packet-AVI data] DRMI [Display packet-DMI data] [Display packet-GCP data] [Display packet-SPD data] [Display packet-VSI data] SCDC_SCR_ENABLE [Rx SCDC source enable scrambling state] SCDC_SCR_STATUS [SCDC sink scrambling status] SCDC_SINK_VER [SCDC sink version] SCDC_SOURCE_VER [SCDC source version] $TASK_MODE N1 Available values for N1: Set the unit’s operation mode to Signal Analyser or Pattern Generation.
  • Page 45 COMMANDS DESCRIPTION VARIABLES $TIMING N1 Available values for N1: Select the output resolution timing to use. [720×480p@59] [720×576p@50] [1280×720p@25] [1280×720p@30] [1280×720p@50] [1280×720p@60] [1920×1080i@50] [1920×1080i@60] [1920×1080p@24] [1920×1080p@25] [1920×1080p@30] [1920×1080p@50] [1920×1080p@60] [3840×2160p@24] [3840×2160p@25] [3840×2160p@30] [3840×2160p@50] [3840×2160p@60] [4096×2160p@24] [4096×2160p@25] [4096×2160p@30] [4096×2160p@50] [4096×2160p@60] $TIMING? Display the unit’s current output resolution timing by timing number.
  • Page 46 COMMANDS DESCRIPTION VARIABLES $TMDS_FORMAT? Display the current video output format. $TMDS_SW N1 N1 = ON, OFF Enable or disable video output. [Off disables video output] $TMDS_SW? Display the current video output status. $TX_5V N1 Available values for N1: Set the unit’s output +5V pin state to follow the TMDS output state or to FOLLOW [Only output 5V if...

  • Page 47: Connection Diagram

    7. CONNECTION DIAGRAM UHDTV HDMI Source Device HDMI HDMI Output Input PC/Laptop MENU TASK ENTER HDCP MODE FACTORY RESET...

  • Page 48: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Port 1×HDMI Control Interface 1×USB Micro-B HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/2.1A USB power or Lithium-ion battery (not included) ESD Protection Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)

  • Page 49: Operational Notes

    8.2 Operational Notes Battery - When the USB port is set to RS-232 mode some power is also provided to the unit via USB, however a properly charged battery is still required to fully operate the unit. - Many USB hubs do not provide proper 5V power to connected devices. When using a USB hub to connect the unit to a PC, it is strongly recommended to power the unit with a fully charged battery.

  • Page 50: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Three-Dimensional Consumer Electronics Control Character Error Detection Display Data Channel Digital Visual Interface EDID Extended Display Identification Data EOTF Electro-Optical Transfer Function High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Hertz...
  • Page 51 ACRONYM COMPLETE TERM TMDS Transition-Minimised Differential Signaling Ultra-High-Definition UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array...
  • Page 52 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham, NG6 8WB Tel: +44 (0)115 977 0075 | Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com v1.00...
