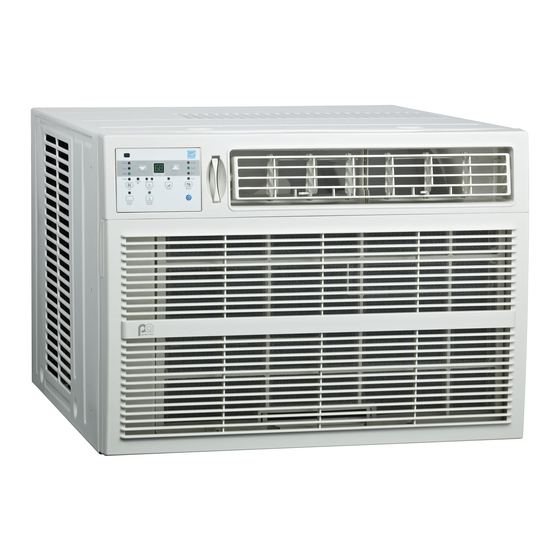

Window air conditioner
Hide thumbs Also See for 4PAC15000:
Table of Contents

Advertisement

Quick Links

USER MANUAL
FOR MODEL:
4PAC15000
4PAC18000
4PAC25000
WINDOW
AIR CONDITIONER
Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4PAC15000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perfect Aire 4PAC15000

Summary of Contents for Perfect Aire 4PAC15000

  • Page 1 WINDOW AIR CONDITIONER USER MANUAL FOR MODEL: 4PAC15000 4PAC18000 4PAC25000 Before using your air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
  • Page 2 CONSUMER PRODUCT INFORMATION For your own records, please attach a copy of your sales receipt to this manual and complete the following: Model Number: _____________________________________ Serial Number: _______________________________________ Purchase Date: ____________________________________ Store Purchased: _____________________________________ Installation Date: ___________________________________ Installation Co.: _______________________________________ Installer Name: _____________________________________ Installer Phone No.: ___________________________________...

  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........3 INSTALLATION INSTRUCTIONS .............4 WINDOW MOUNTING INSTALLATION INSTRUCTIONS ..6 THRU-THE-WALL INSTALLATION INSTRUCTIONS ....11 MASONRY CONSTRUCTION ............12 NORMAL SOUNDS ................13 AIR CONDITIONER FEATURES ............13 CARE AND CLEANING ..............16 TROUBLESHOOTING ...............17 This manual provides the information needed for proper use and mainte- nance of this air conditioner.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY.
  • Page 5 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury.  the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation,  causing an electric shock. Ensure proper ventilation, especially in rooms with a Failure to do so may result in an oxygen shortage. ...

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) for details. In the event that the power To reduce the risk of fire, electrical shock, or injury to persons when using supply cord is damaged, it cannot be your air conditioner, follow basic precautions, including the following: repaired.

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN REQUIRED TOOLS/HARDWARE Read these instructions completely and carefully. ● Pencil ● Level IMPORTANT- Save these instructions. ● Tape measure IMPORTANT- Observe all governing codes and ● Socket wrenches ● Phillips screwdriver ordinances. ● Adjustable wrench or pliers Note to Installer- Be sure to leave these instructions with ● Large flat blade screwdriver the Consumer.
  • Page 8 PRELIMINARY INSTRUCTIONS Please read ALL instructions before installing. It is recommended that two people install this product. Do the following before installing the unit. (See If a new electrical outlet is required, have the outlet illustrations on left.) installed by a qualified electrician before installing the Check dimensions of your unit to determine proper air conditioning unit. window dimensions: Unit Height: or 18 FIG.

  • Page 9: Window Mounting Installation Instructions

    WINDOW MOUNTING INSTALLATION INSTRUCTIONS STEP 1: Front Panel REMOVE CHASSIS 1. Pull down front grille and remove filter. (See Fig. 1.) 2. Lift front grille upwards and place to one side. Front Grille 3. Locate and remove the four front screws. These FIG. 1 FIG. 2 screws will be needed to re-install the front panel later.
  • Page 10 STEP 2: 3. Insert top and bottom legs of window filler panel frame into channel in the top angle and bottom rail. INSTALL TOP ANGLE AND Do this on both sides. SIDE BRACKET 4. Insert washer head locking 7/16″ screws (2) into 1. Attach foam gasket to top angle above holes, as holes in top leg of filler panel frame. (See step 6 on shown in Fig. 6 on previous page. next page.) Do not totally tighten. Allow leg to slide freely.
  • Page 11 1/2″ Log Screws Left and Locknuts Locknut Bottom Rail Seal Sill Angle Right Bracket Flat Head Bolt 3/4″ (or 1/2″) long 2 Each Required for Hex-head Screw Each Support Bracket FIG. 13 FIG. 15B STEP 5: INSTALL SUPPORT BRACKET 3. Install support brackets (with sill angle brackets attached) to correct hole in bottom of cabinet, as 1. Hold each support bracket flush against outside of shown in Fig.
  • Page 12 STEP 8: 4. Attach the top angle to window frame: Use a 3/32″ drill bit to drill one hole through the hole in the INSTALL WINDOW SASH SEAL AND middle of top angle into the window frame, and SAFETY LOCK drive one 3/4″ (or 1/2″) HEX-HEAD locking screw through hole in the middle of top angle into the 1. Trim sash seal to fit window width. Insert into window frame, as shown (Fig.
  • Page 13 STEP 10: STEP 10.3: Slide the insulation panel you just cut into the accordion panel (curtain). The side of the INSTALL INSULATION PANELS insulation panel with the pattern on it should face indoors. (Fig. 22) In order to minimize air leaks and ensure optimal insulation, it is necessary to install the included insulation panels to the accordion panels. Follow the 4 steps in these instructions: STEP 10.1: After the unit is installed in the window, measure the inner width of one of the accordion...

  • Page 14: Thru-The-Wall Installation Instructions

    THRU-THE-WALL INSTALLATION INSTRUCTIONS STEP 1: SELECT WALL LOCATION The air conditioner has a slide-out chassis so that it can be installed through an outside wall as specified below: Max. Wall Thickness: 12″ or 10″ IMPORTANT: Side louvers must never be blocked. NOTE: All parts needed for Thru-The-Wall Installation are provided except a wood frame, shims, and 10 wood screws (#10-1 long minimum). Select a wall surface that: FIG.

  • Page 15: Masonry Construction

    STEP 3: FIG. 5 PREPARE AND INSTALL CABINET 3 ~ 4° 1. Slide chassis from cabinet. Refer back to Step 1 of NOTE: Check that air Window Mounting section. conditioner is tilted back about 1-1/2″ to 1-5/8″ 2. Place cabinet into opening with bottom rail resting (3° to 4° downward firmly on bottom board of wooden frame.

  • Page 16: Normal Sounds

    NORMAL SOUNDS HIGH PITCHED CHATTER VIBRATION High efficiency compressors Unit may vibrate and make may have a high pitched chatter noise because of poor wall or during the cooling cycle. window construction or incorrect installation. This DOES NOT SOUND OF RUSHING AIR indicate a defective unit. At the front of the unit, the sound of rushing air being moved by the fan may be heard.
  • Page 17 SLEEP FEATURE: TO SELECT THE OPERATING MODE: Press SLEEP button to initiate the SLEEP To choose operating mode, press the MODE mode. In this mode, the selected temperature will button. Each time you press the button, a mode is increase by 2°F (1°C) 30 minutes after the mode is selected in a sequence that goes from AUTO, COOL, selected.
  • Page 18 DISPLAY: ● The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert Shows the set temperature in °F or °C and the Auto- from one to the other, press and hold the left and timer settings. While in FAN only mode, it shows the right TEMP/TIMER buttons (...

  • Page 19: Care And Cleaning

    CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. AIR FILTER CLEANING The air filter should be cleaned at least every two weeks or as necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils. ● Push the vent handle to the Vent Closed position (where applicable). ● Open the front panel. ● Grasp the filter by the center and pull up and out. ● Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. ● Gently shake excess water from the filter. Be sure the filter is thoroughly dry before replacing.

  • Page 20: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. • Allow enough time for room to cool, especially if outside temp is very high. • Check that the filter is not dirty and louvers are open all the way and blowing in the desired direction. AIR CONDITIONER NOT • Check that unit is set to COOL mode and that temperature is down enough (but COOLING ROOM, OR NOT BLOWING not too low).
  • Page 23 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
  • Page 24 Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User4PAC15000_4PAC18000_4PAC25000/10162017 Specification and performance data is subject to change without notice. Printed in China...
