Setting Up
Application Examples

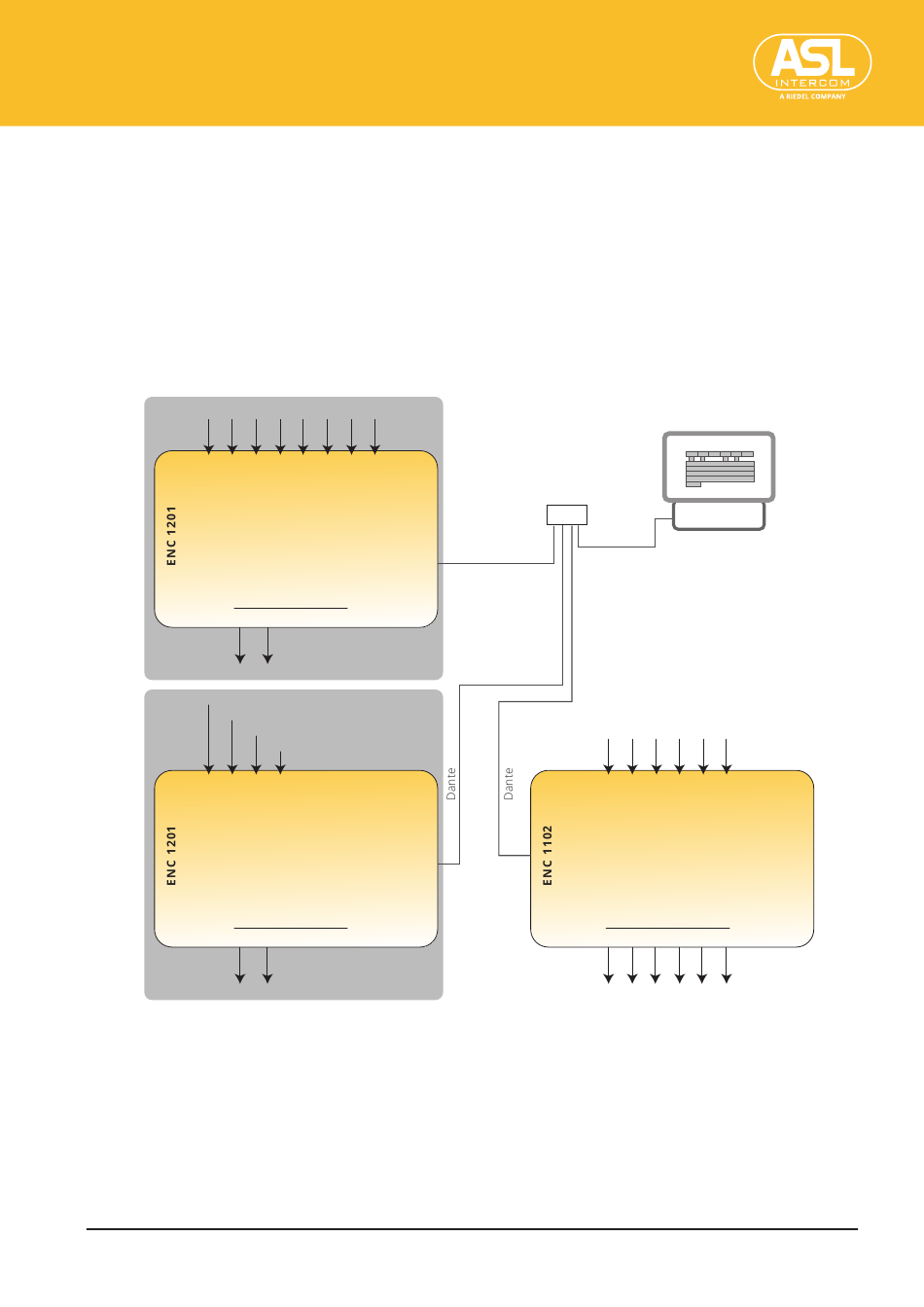

Studio
If the DAW you are using supports Dante, the Enchorus-series devices are an efficient and
flexible solution for studio wiring. Since the system is modular, its topology and scale can
be quickly adapted to the session.
Consider positioning an Enchorus ENC 1201 (8x MIC IN, 4x LINE OUT) close to the instru-
ments or voices you wish to record to keep cable runs to a minimum. Adding an Ethernet
switch will make patch bays obsolete.
An ENC 1102 allows you to take advantage of your outboard gear's digital AES/EBU inputs
and outputs. Guitar processors, synthesizers, etc., with digital outputs can also be con-
nected to the ENC 1102 (i.e. in the digital domain).
BD, SD top, SD bottom, HH, Tom1...
MIC IN 1~8
1 2 3
1
Monitor 1
GTR Mic1
GTR Mic2
Bass direct
MIC IN 1~8
1 2 3
1
Monitor 2
ENC 1201
4 5 6 7 8
2 3 4
Drums
Bass Mic
4 5 6 7 8
2 3 4
Guitar & Bass
Version 1.0
Switch
Dante
Dante
Effects Returns
AES IN 1~6
1 2
1 2
AES OUT 1~6
Effects Sends
Digital Audio Workstation
3 4 5 6
3 4 5 6
