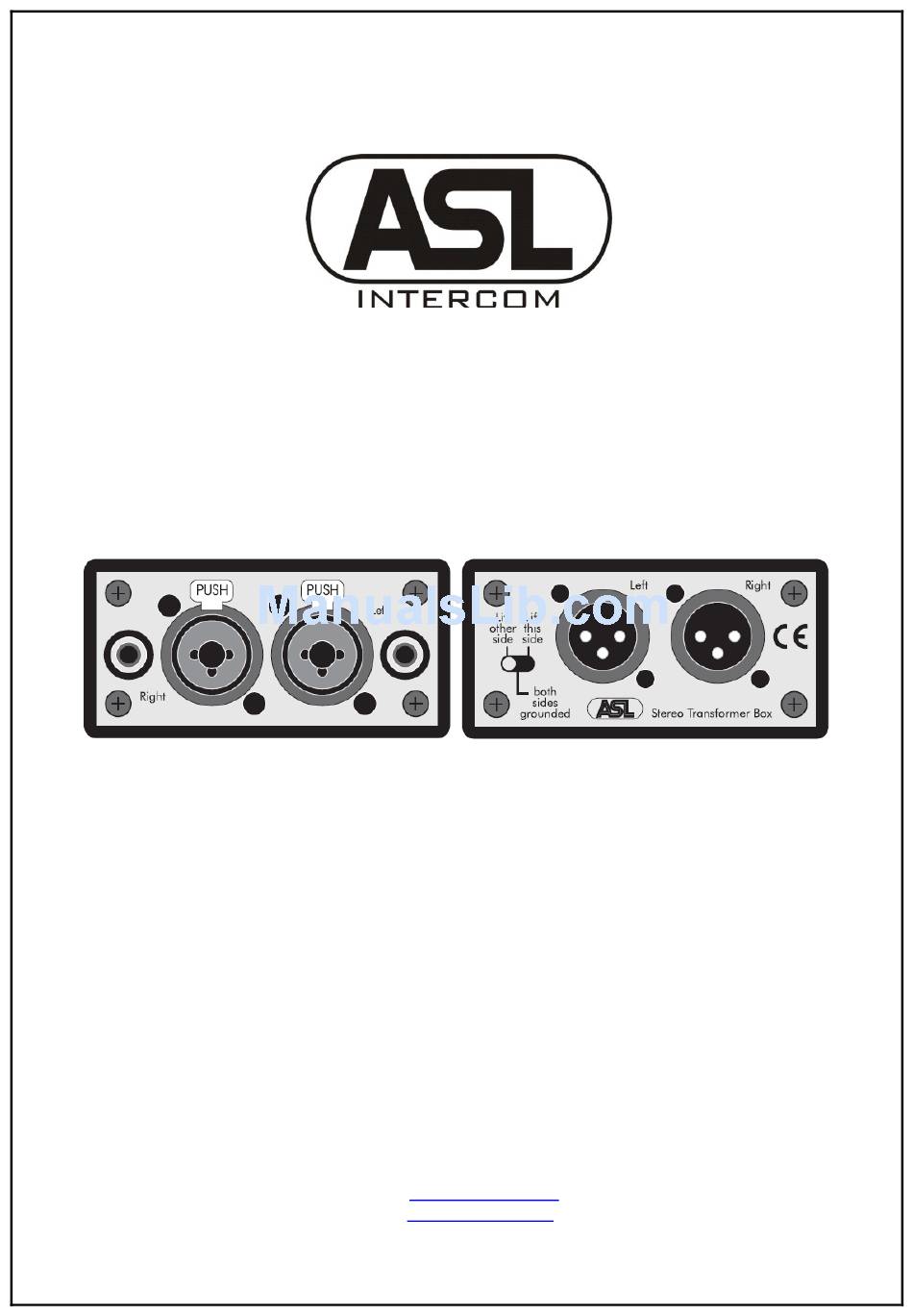

Page 1: User Manual
TR-2 DUAL CHANNEL TRANSFORMER BOX USER MANUAL Issue 2011 © ASL Intercom BV DESIGNED & MANUFACTURED BY: ASL Intercom BV Zonnebaan 42 3542 EG Utrecht The Netherlands Tel: +31 (0)30 2411901 Fax: +31 (0)30 2667373 Email: info@asl-inter.com Web: www.asl-inter.com... - Page 2 INPUT SIDE OUTPUT SIDE The input side of the TR-2 is equipped with one Neutrik Combo connector (¼” stereo jack + XLR-3 female) and one RCA connector per channel. The Combo and RCA connector of one channel are paralleled. The output side is equipped with one XLR-3 male connector per channel.
- Page 3 42 x 86 x 132 mm <0.03% at any output level up to +10 dBu Weight 700 grams ASL reserves the right to alter specifications without prior notice. PAGE 3 User Manual TR-2 / Issue 2011 © ASL Intercom BV...
