Coyote Stainless Steel Side Burner
For Liquid Propane and Natural Gas Models
Conforms to ANSI STD Z21.58-2015
Certified to CSA STD 1.6-2015
Outdoor Cooking Gas Appliance
PUT SERIES NO. LABEL HERE
4006980
IMPORTANT: Read all instructions and warnings before using this product! Use of this product,
as with any similar outdoor grill, will involve risks from high temperatures and from exposure to
smoke and fumes. Please exercise caution and common sense.
To installer or person assembling grill: Leave this manual with grill for future reference.
To consumer: Keep this manual for future reference as it contains important Warnings and
Instructions.
COYOTE OUTDOOR LIVING, INC.
Use & Care Manual

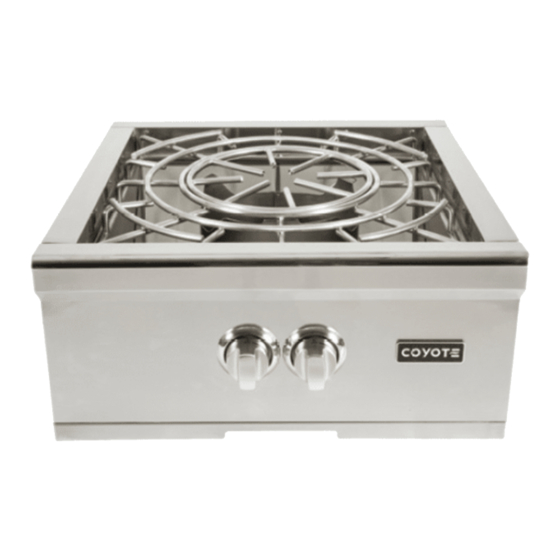

C1PB Power Burner
For Outdoor Use Only
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coyote C1PB
Summary of Contents for Coyote C1PB
- Page 1 Coyote Stainless Steel Side Burner Use & Care Manual For Liquid Propane and Natural Gas Models C1PB Power Burner Conforms to ANSI STD Z21.58-2015 For Outdoor Use Only Certified to CSA STD 1.6-2015 Outdoor Cooking Gas Appliance PUT SERIES NO. LABEL HERE...
- Page 2 Welcome & Congratulations Congratulations on your purchase of a new side burner! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain your side burner for your safety and for optimum performance and longevity.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions ......2 DANGER Limited Warranty ......5 Locating the Side burner ....7 IF YOU SMELL GAS: Gas Requirements……………………………11 1. Shut off gas to the appliance. Operating the Side Burner……………..17 2. Extinguish any open flame. Lighting Instructions…………………………18 3. -
Page 4: Safety Instructions
General Safety Instructions For Outdoor Use Only. Coyote side burners are only intended for residential use and are not intended for commercial use, where anyone other than the original purchaser (homeowner) would be using and maintaining the side burner. NEVER use indoors or in any type of enclosed area, such as a garage, shed or breezeway. Keep clear of trees and shrubs. - Page 5 combustion and also build up heat in the control area causing the knobs and cause damage to the igniter. 17. NEVER allow grease or other hot material to drip from the side burner onto the valve, hose, or regulator. If that occurs, turn off the fuel supply immediately. After the side burner has cooled, determine the cause of the dripping and correct it.
-
Page 6: Limited Warranty
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Coyote Outdoor Living, Inc. issues this limited warranty to the original purchaser at the original site of delivery with proof of purchase and specifically warrants that the Outdoor Gas side burner when subject to normal residential use, will be free from defects in workmanship and materials for the periods specified below. - Page 7 Upon examination and to Coyote Outdoor’s determination, if the original part is proven defective, Coyote Outdoor may approve your claim and elect to replace such parts without charge. In every instance, the customer is responsible for shipping and handling of replacement parts. Component repair or replacement is the exclusive remedy under this limited warranty and Coyote Outdoor shall not be liable for any incidental or consequential damages.
-
Page 8: Locating The Side Burner
If you smell gas, check for gas leaks immediately. Check only with a soap and water solution. Never check for gas leaks with an open flame. Notice: We strongly recommend professional installation of your Coyote side burner. These instructions provide the measurements necessary to construct a masonry structure to house your outdoor gas side burner. IMPORTANT: Gas fittings, regulator, and installer supplied shut-off valves must be easily accessible. - Page 9 Coyote insulated jacket. The insulated jacket will act as a barrier to protect your side burner island from the heat and fire of your Coyote side burner. If an insulated jacket is not used in a combustible material island, the warranty on the Coyote side burner will be voided immediately and safety cannot be ensured.
- Page 10 High Elevation Installation and Use Coyote Side burners are designed to operate most efficiently at 0-2000 feet above sea level. From 2000-4000 feet above sea level you will not notice any substantial decrease in your heat, although more gas is combusting within the burners due to less oxygen.
- Page 11 Two vents on each side will facilitate and improve airflow and ventilation. Electrical Outlets Model Cutout Dimensions Overall Dimensions Total BTU Ratings Needed (110V) Grills Height Width Depth Height Width Depth Rotisserie Lights C1PB 10 1/4" 21" 21" 13” 24" 24 1/4” 60,000 60,000...
-
Page 12: Gas Requirements
Do not connect a Coyote liquid propane gas side burner to a natural gas supply, and do not connect a Coyote natural gas side burner to a liquid propane gas supply. - Page 13 before using any propane products. Propane characteristics include: flammable, explosive under pressure, heavier than air and settles in • pools and low areas. In its natural state, propane has no odor. For your safety, an odorant typically is added. ALWAYS •...
- Page 14 turned off before any connection is made or removed. The system has a thermal element that will shut off the flow of gas in the event of a fire. The system has a flow limiting device which, when activated, will limit the flow of gas to 10 cubic feet per hour.
- Page 15 8. If “growing” bubbles appear, there is a leak. Close LP tank valve immediately and retighten connections. If leaks cannot be stopped, do not try to repair the regulator, or tank valve, by yourself and contact the Coyote Customer Service line at 855-520-1559.
- Page 16 If your entire house is plumbed for propane gas use, and you have an exterior connection for such use, • then a standard LP side burner from Coyote can be connected to such outdoor propane connection, but you must be aware of the following:...
- Page 17 Depending on your choice of hose and shut-off, the nipple going into the shut-off valve may vary. Test all connections for leaks with a soap and water solution. Coyote is not responsible for the selection or performance of the contractor or installer who performs the connection of the natural gas supply to the side burner.
-
Page 18: Operating The Side Burner
Operating the Side Burner Failure to open the lid prior to igniting the barbecue’s burners, or not waiting 5 minutes to allow the • gas to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death. -
Page 19: Lighting Instructions
"Off" position, keep the canopy open, and allow the side burner to clear of any built up gas for at least 5 minutes before starting the process again. 5. If at this point the side burner will still not ignite, contact Coyote Customer Service for further assistance to troubleshoot your side burner. -
Page 20: Using Your Burner / Cooking Safely
Using Your Burners and Grilling Safely Your side burner is designed to reach a temperature that you set by adjusting a valve that in turn adjusts the amount of gas that goes through each burner. This valve is located behind your knob and is the key to your heat and fuel consumption. -
Page 21: Care And Maintenance
Use a disposable aluminum tray filled with water, fruit juice, wine or a marinade to add extra flavor and moisture to slow-cooked foods like roasts, whole chickens, turkeys or ducks. Controlling Flare-ups Flare-ups are a part of cooking meats on a gas side burner. This adds to the unique flavor of cooking on a gas side burner. - Page 22 Follow instructions provided on any third-party polish products. Coyote does not insure or guarantee the performance of or results from such products. Environmental Factors that can affect your Side burner...
- Page 23 Ways to Avoid Rust on your Side burner: 1) Purchase a Coyote Side burner cover for your unit. This will ensure that your cover is a correct fit and breathable, while providing the protection needed to keep contaminants off of the surface.
- Page 24 Check electrode. Reinstall cooking grids. Reconnect to gas source and observe burner flame for correct operation. IMPORTANT: You should NOT line the bottom of the burner housing with aluminum foil, sand or any other grease absorbent substance, a grease fire may occur. MAINTENANCE GUIDELINES 1.
-
Page 25: Troubleshooting Your Side Burner
If the side burner does not function properly, use the chart below to assist in diagnosing the problem. Troubleshooting is for general purposes only. ALWAYS ERR ON THE SIDE OF SAFETY. If the problem still exists, contact our Coyote Customer Service line at 855-520-1559. Problem:... - Page 26 between the electrode and contact point. • Check for loose wire connections to the igniter or electrodes. • Check to see if debris is blocking the electrodes. • If the igniter is not working, can you light the side burner with a lighter? Flare-ups •...
-
Page 27: Parts Listings
C1PB Parts List... - Page 28 Picture # Description Part Number COVER C1PB-001 GRID, STAINLESS STEEL ROD C1PB-002 FLAME COLLIMATOR C1PB-003 BURNER, STAINLESS STEEL C1PB-004 AIR SHUTTER C1PB-005 CONTROL PANEL C1PB-006 FIRE TUBE C1PB-007 CONTROL KNOB C1PB-008 FIRE BOX C1PB-009 DRIP TRAY ASSEMBLY C1PB-010 VALVE MANIFOLD...
