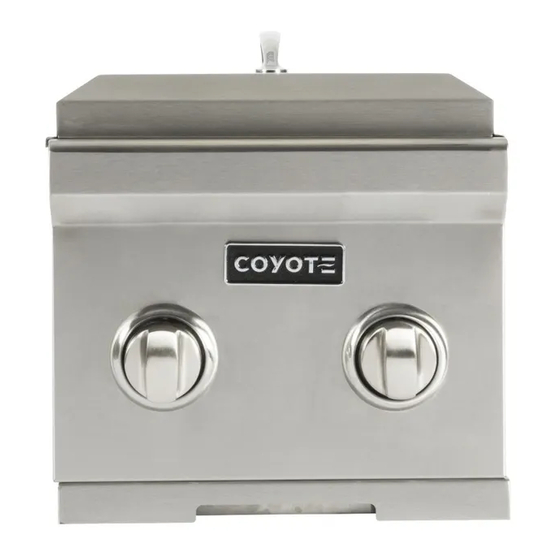

C1DB
Overall Product Dimensions
Model No.
Height
Width
13 1 /8"
C1DB
13"
Model No.
Gas Supply
BTU's
C1DBLP
Propane
30,000
C1DBNG
Natural Gas 30,000
Important Note to Installer:
This file is not intended to replace your Owners' Manual which contains specific safety requirements
and consumer guidelines. Please refer to your Owners' Manual prior to installing or operating your built-in side burner.
INSTALL GUIDE
DIMENSIONAL RENDERINGS
Depth
23 1 /4"
Regulator
WC Pressure
20 lb Tank Regulator
11"
1/2" Female Pipe
4"
www.coyoteoutdoor.com
Cutout Dimensions for Island
Model No.
Height
10 1 /4"
11 7 /8"
C1DB
Max PSI
Electrical Requirements
.5 PSI
No Electrical Connections Required
.5 PSI
No Electrical Connections Required
Width
Depth
20 1 /4"
Advertisement
Table of Contents
Related Manuals for Coyote C1DB Series
Summary of Contents for Coyote C1DB Series
- Page 1 C1DB INSTALL GUIDE DIMENSIONAL RENDERINGS Overall Product Dimensions Cutout Dimensions for Island Model No. Height Width Depth Model No. Height Width Depth 23 1 /4" 13 1 /8" 20 1 /4" 10 1 /4" 11 7 /8" C1DB 13" C1DB Model No.
- Page 2 C1DB INSTALL GUIDE NON-COMBUSTIBLE CONSTRUCTION ONLY Insulated Jacket NOT Required 3 /4" SIDE BURNER OPENING TOP VIEW COUNTERTOP OVERHANG 24" 3" 20 1 /4" 24" 24" 11 7 /8" INCLUDING COUNTERTOP CUTOUT WIDTH 10 1 /4" 3" 1 1 /2" MIN OPENING HEIGHT 3"...
